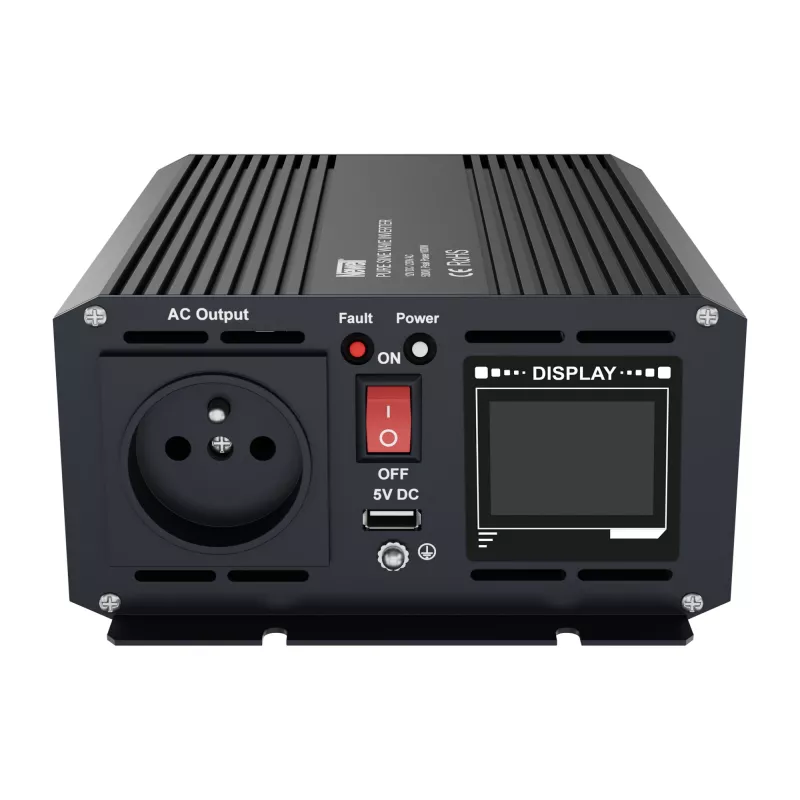

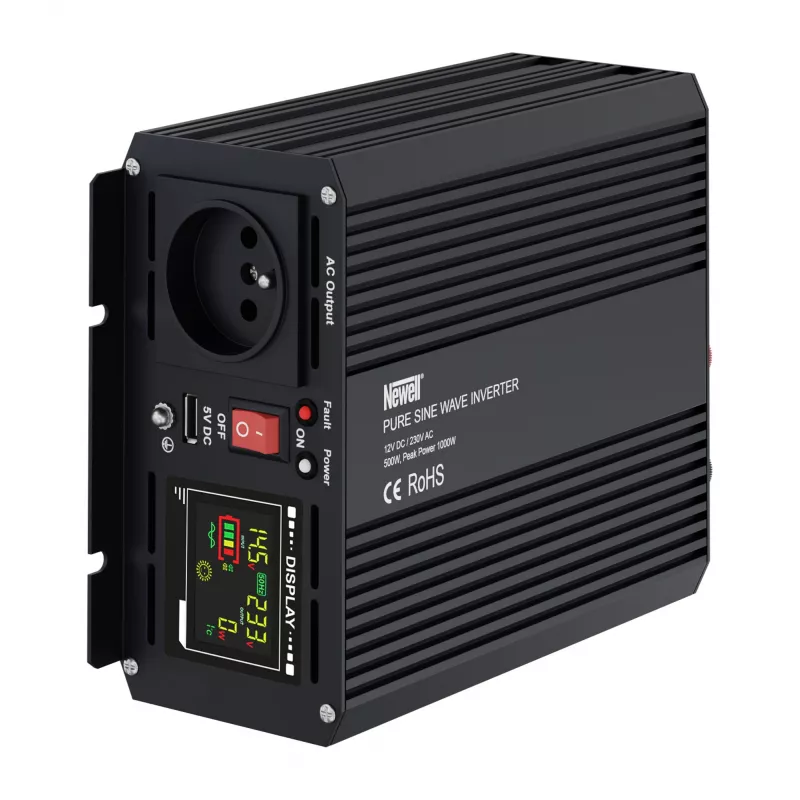

Inversor de corriente Newell de onda sinusoidal pura 12V DC a 230V AC 500W

The Newell Pure Sine Wave Power Inverter converts 12V DC battery power into stable 230V AC with a pure sine wave, delivering clean and reliable power for sensitive electronic devices. With a continuous output of 500W and a peak power of 1000W, it is ideal for use in vehicles, caravans, boats, and off-grid systems.

Advantages

Pure sine wave output ensures compatibility with sensitive electronics such as laptops, medical equipment, and audio devices. High efficiency (>90%) minimizes battery drain. Multiple protection features safeguard your devices and the inverter itself.

Suitable for

• Caravans, motorhomes, and boats
• Camping and outdoor activities
• Emergency backup power
• Powering tools and appliances on job sites

Key specifications

• Inverter Type: Pure Sine Wave
• Continuous Power Output: 500W
• Peak Power Output: 1000W
• Input Voltage: 12V DC
• Output Voltage: 230V AC ±5%
• Output Frequency: 50Hz ±0.5Hz
• Efficiency: >90%
• USB Output: 1x 5V / 2.1A
• Protection: Overload, Over-voltage, Under-voltage, Over-temperature, Short Circuit, Reverse Polarity (fuse)
• Cooling: Intelligent cooling fan
• AC Output: 1x Universal AC outlet

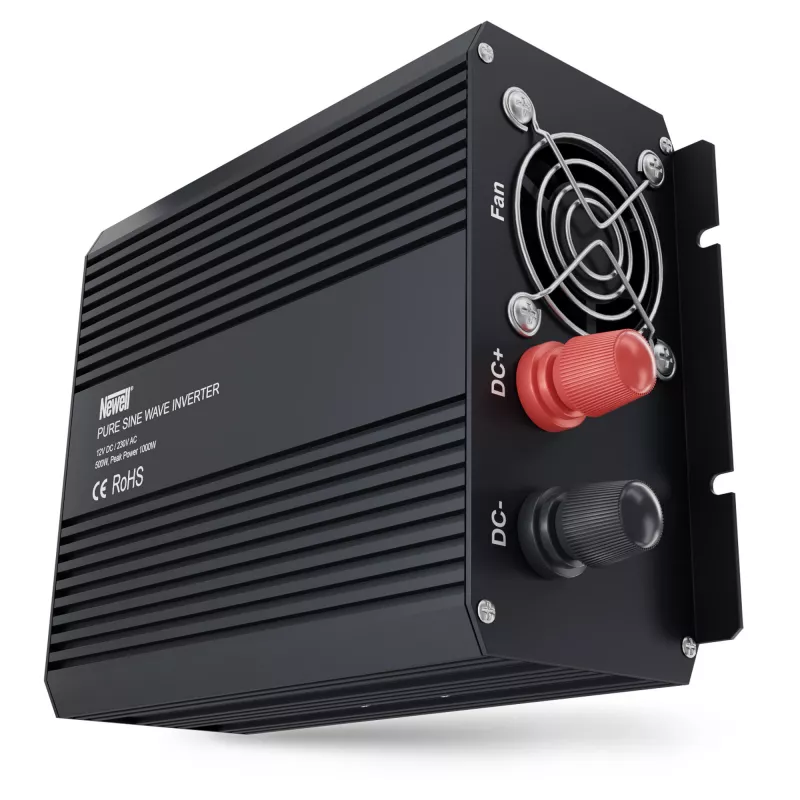

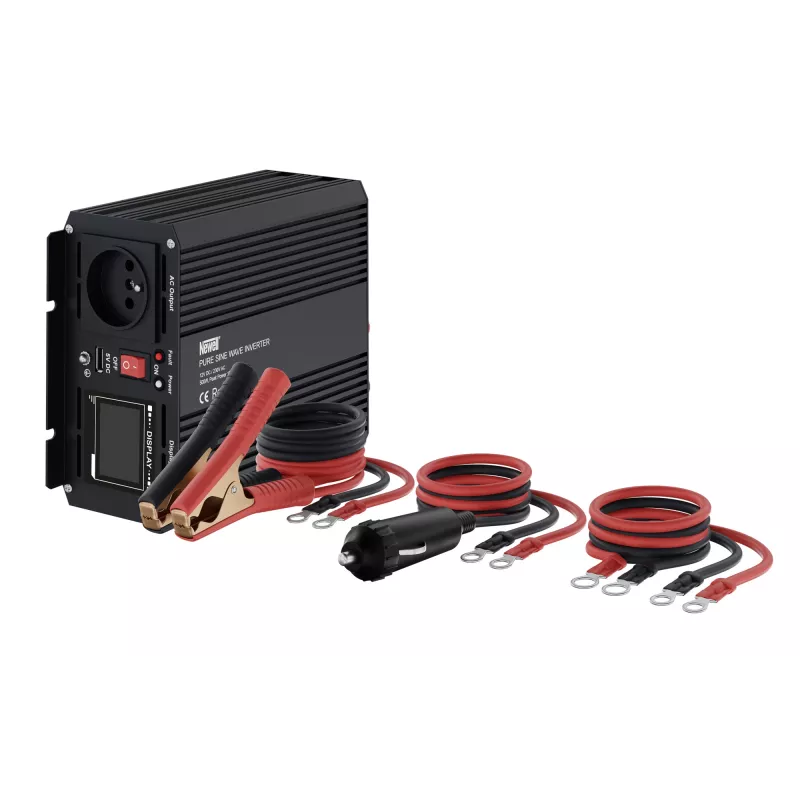

• Input Connection: DC battery clamps
• Low Voltage Alarm: 10.5V DC ±0.5V
• Low Voltage Shutdown: 10.0V DC ±0.5V
• High Voltage Shutdown: 15.5V DC ±0.5V
• No-load Current Draw: <0.5A
• Operating Temperature: -10°C to 50°C
• Casing Material: Aluminum alloy

Recommendations

For optimal performance, connect the inverter directly to a 12V battery using the included clamps. Ensure the battery has sufficient capacity to handle the load. Do not exceed the continuous power rating.
