AZO Digital Inversor para automóvil 24 VDC / 230 VAC IPS-2000 2000W

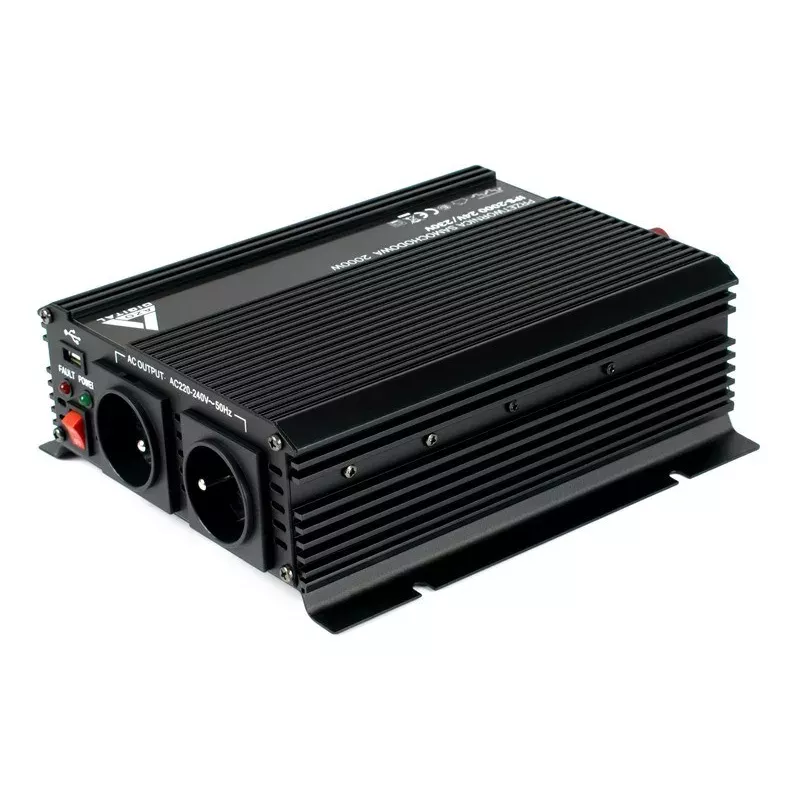

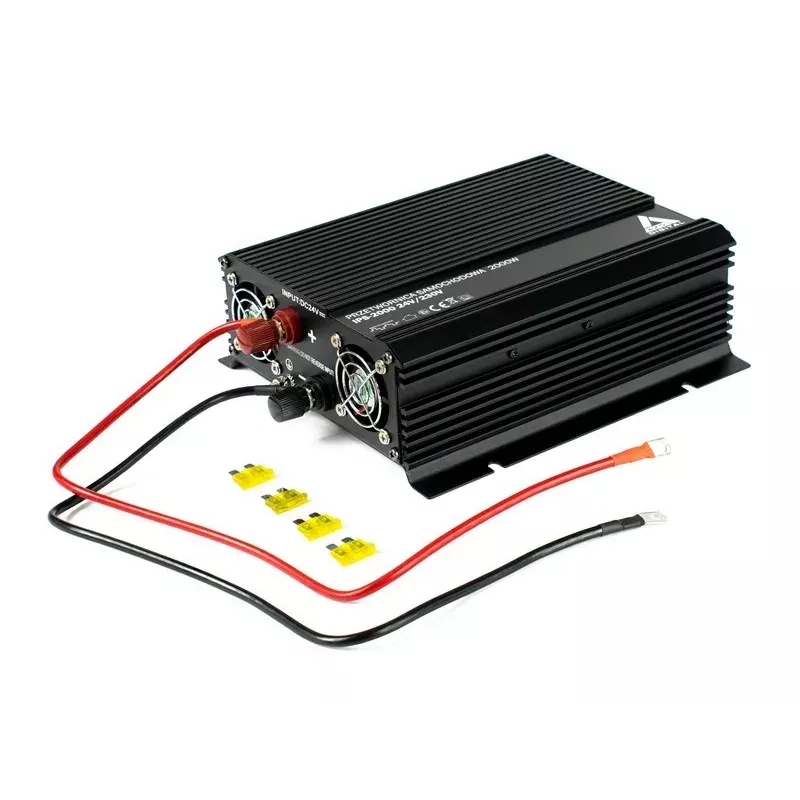

The AZO Digital IPS-2000 is a high-performance automotive inverter that converts 24V DC to 230V AC, delivering 2000W continuous power (4000W peak). Ideal for mobile applications, it features modified sine wave output, multiple protections, and a compact design.

Advantages

Reliable power conversion with >90% efficiency, low no-load current (<0.8A), and comprehensive safety protections including overload, short circuit, over temperature, and reverse polarity (via fuse). Active cooling ensures stable operation even under heavy loads.

Suitable for

• Caravans, boats, and trucks
• Off-grid power systems
• Powering tools, appliances, and electronics on the go

Key specifications

• Input: 24V DC (operating range 21-30V)
• Output: 230V AC, 50Hz, modified sine wave
• Continuous power: 2000W, peak: 4000W
• USB output: 5V DC, 1A
• Protections: low voltage alarm (21.4V), cut-off (20.4V), over voltage cut-off (30V), overload, short circuit, over temperature, reverse polarity
• Cooling: active fan
• Operating temperature: -10°C to +50°C
• Safety standards: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and use appropriate cable sizes. The inverter is not suitable for inductive loads like motors without additional filtering.
