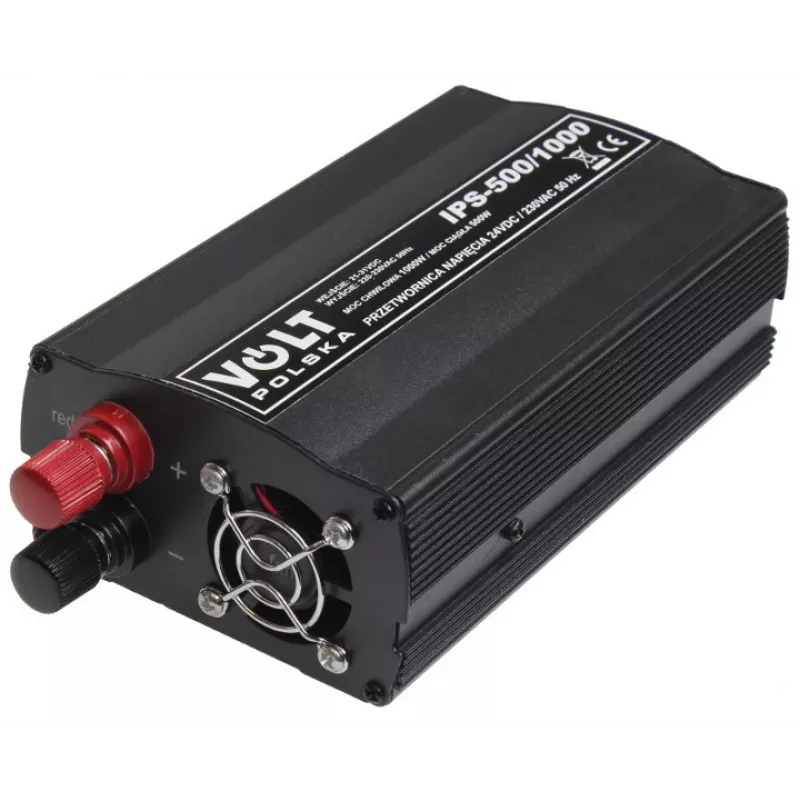

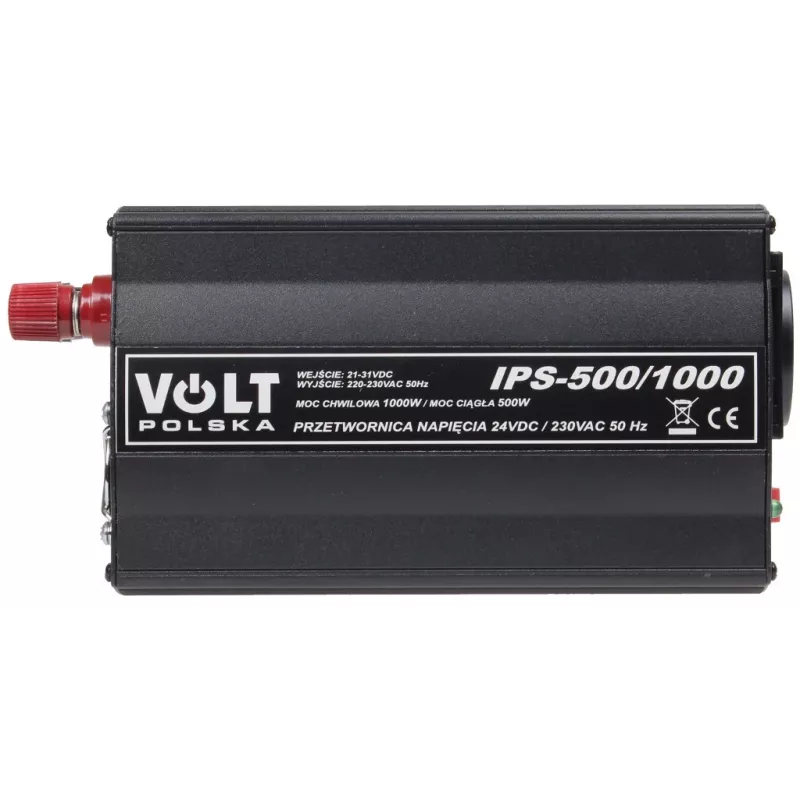

VOLT POLSKA Inversor IPS-500/1000 24V / 230V 500/1000 W

The VOLT POLSKA IPS-500/1000 is a reliable power inverter that converts 24V DC to 230V AC, delivering 500W continuous and 1000W peak power. Ideal for mobile, marine, and off-grid applications, it features a modified sine wave output, active cooling, and comprehensive protection circuits.

Advantages

High efficiency (>85%), robust protection against overload, short circuit, over-temperature, and voltage extremes. Compact design with a single Schuko outlet.

Suitable for

• Caravans, boats, and RVs
• Off-grid solar systems
• Emergency backup power
• Powering tools and electronics on the go

Key specifications

• Input Voltage: 24V DC (21V-30V range)
• Output Voltage: 230V AC
• Continuous Power: 500W
• Peak Power: 1000W
• Output Waveform: Modified Sine Wave
• Output Frequency: 50Hz
• Efficiency: >85%
• Number of AC Outlets: 1 (Schuko)
• Low Voltage Alarm: 21.4V ± 0.6V
• Low Voltage Cut-off: 20.4V ± 0.6V
• Over Voltage Cut-off: 30V ± 0.5V
• Protection: Overload, Short Circuit, Over-temperature, Low Input Voltage, Over Input Voltage
• Cooling: Active (Fan)
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For best performance, use with a deep-cycle battery and ensure adequate ventilation. The modified sine wave output is suitable for most resistive and inductive loads, but sensitive electronics may require a pure sine wave inverter.
