Inyector PoE ALLNET ALL-PI102-BT60-5G 60W, carcasa de plástico, PoE++ de un solo puerto

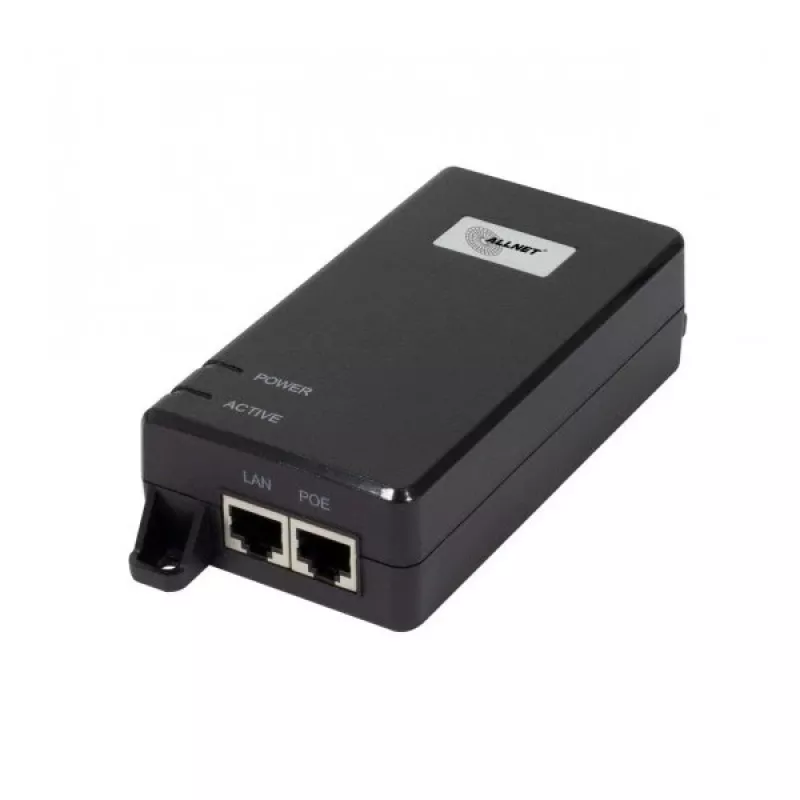

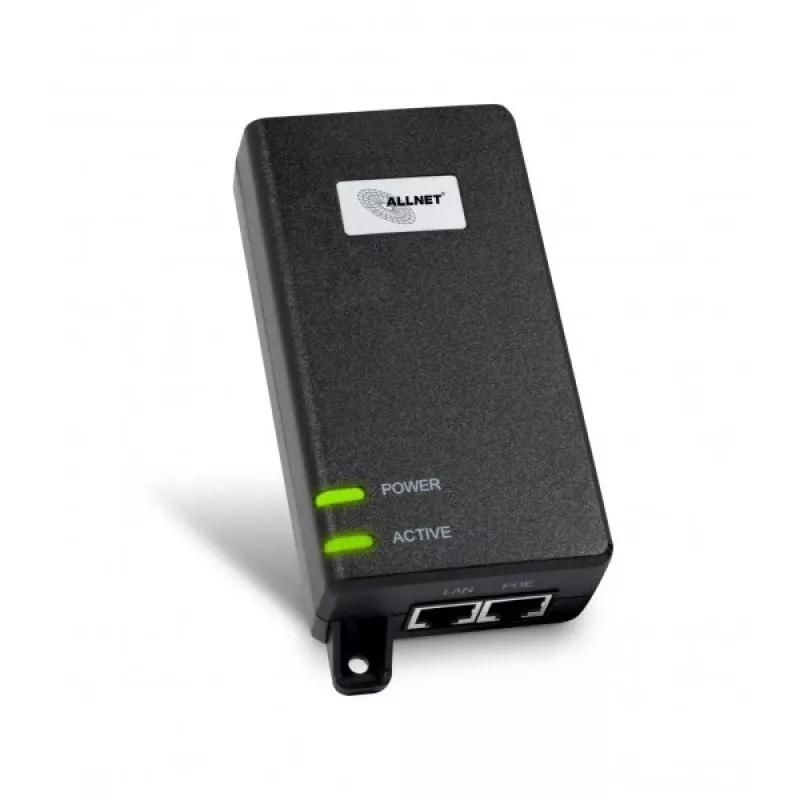

ALLNET ALL-PI102-BT60-5G is a compact single-port PoE injector in a plastic housing that provides up to 60W of power over Ethernet. It is designed to combine data and power on a single Ethernet cable to supply compatible PoE++ devices. The unit connects between a non-PoE network switch and a powered device, allowing installation of high-power devices where centralized PoE switches or midspans are not available.

Advantages

The injector delivers up to 60W over a single Ethernet link, supporting higher-power devices while maintaining a small footprint and lightweight plastic enclosure. Its single-port design simplifies deployment for individual devices without the need for rack-mounted equipment. The device provides standard PoE power delivery and data pass-through on the same cable, reducing the need for separate power lines and minimizing cable clutter.

Suitable for

• High-power wireless access points that require PoE++ power
• IP cameras with increased power demands
• Small installations where a single powered device must be deployed remotely from a power outlet
• Edge devices and sensors requiring consolidated power and data over Ethernet

Key specifications

• Maximum power delivery: up to 60 watts over a single Ethernet port
• PoE standard support: PoE++ class power delivery (high-power PoE)
• Physical form factor: compact plastic housing designed for desk or surface mounting
• Ports: one data+power output port and one data input port
• Compatibility: designed for use with standard Ethernet cabling and IEEE-compatible PoE++ devices

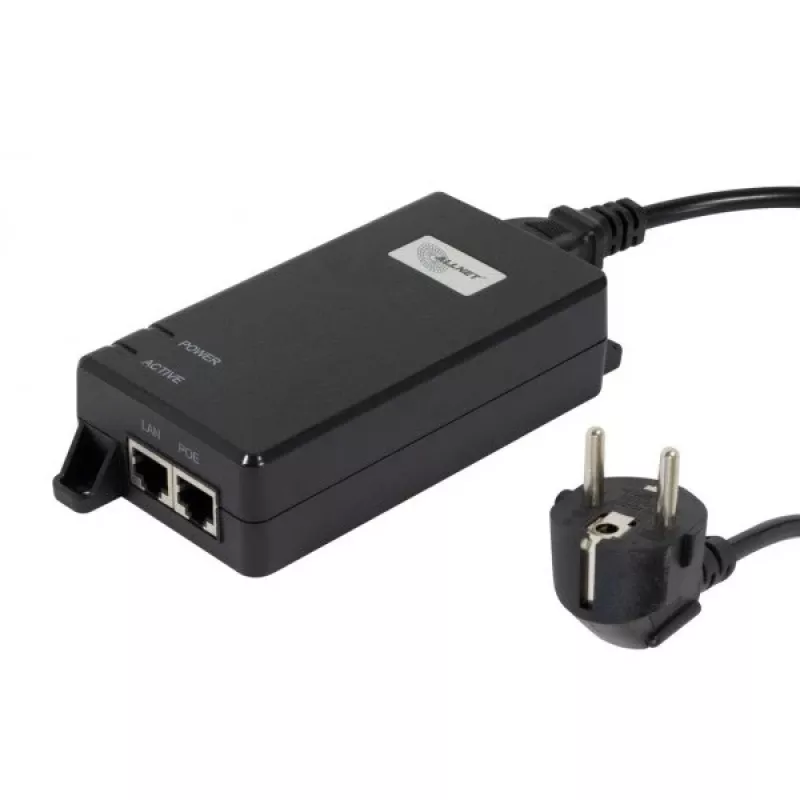

• Power input: external AC/DC power supply to provide the required wattage

How to use

Install the injector near an AC power outlet and connect the injector's data input port to a non-PoE network switch using a standard Ethernet cable. Connect the injector's PoE output port to the powered device with a second Ethernet cable. Plug the injector into AC power so the unit can deliver power and data over the output cable. Verify that the powered device indicates receipt of power and network connectivity; no configuration is required on the injector itself for typical deployments.

Recommendations

Use quality Cat5e or Cat6 Ethernet cable for reliable power delivery and data performance. Ensure the powered device is compatible with PoE++ and does not exceed the injector's 60W output. Place the injector in a ventilated area and avoid exposure to moisture or direct heat sources. For installations with multiple powered devices, consider a centralized PoE switch sized to the total power budget rather than multiple single-port injectors.
