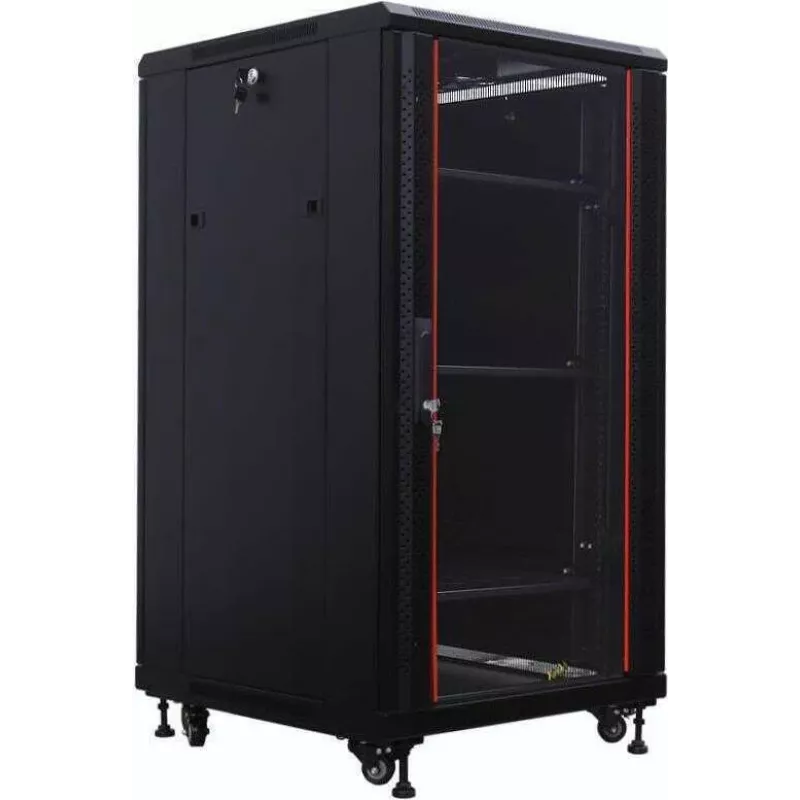

IT-BUDGET Rack de red de 19" SRK - 22U - 600x800 mm - Puerta de cristal/acero - Flatpack - Negro (90ITB19SRK2268GSN)

For IT administrators and system integrators setting up small to medium server rooms or structured cabling environments, this 22U freestanding network cabinet provides a secure and organized enclosure for 19-inch equipment. The flatpack design allows for easy transport and on-site assembly.

Key specifications

• Rack units: 22U
• External dimensions: 600 mm width, 800 mm depth, 1160 mm height
• Front door: glass with viewing panel
• Rear door: solid steel
• Side panels: removable and lockable
• Material: steel, powder-coated
• Colour: black (RAL 9005)
• Static load capacity: 600 kg
• Cable entry: top and bottom
• Mounting rails: 19-inch, adjustable depth
• Locking: key lock on front and rear doors
• Ventilation: passive, with optional fan unit mounting points
• Feet: adjustable leveling feet
• Protection rating: IP20

Why choose it

The combination of a glass front door for visual monitoring and a solid rear door for security makes this cabinet suitable for both network equipment and servers. The removable side panels allow easy access during installation and maintenance, while the lockable design protects against unauthorized access.

Ideal use cases

• Server rooms in small businesses
• Network closets in offices
• Industrial IT enclosures
• Structured cabling distribution points

Good to know

The cabinet is delivered unassembled (flatpack) to reduce shipping volume and cost. Assembly requires basic tools and can be completed by one person with assistance. The adjustable mounting rails accommodate various equipment depths up to the cabinet's 800 mm depth.
