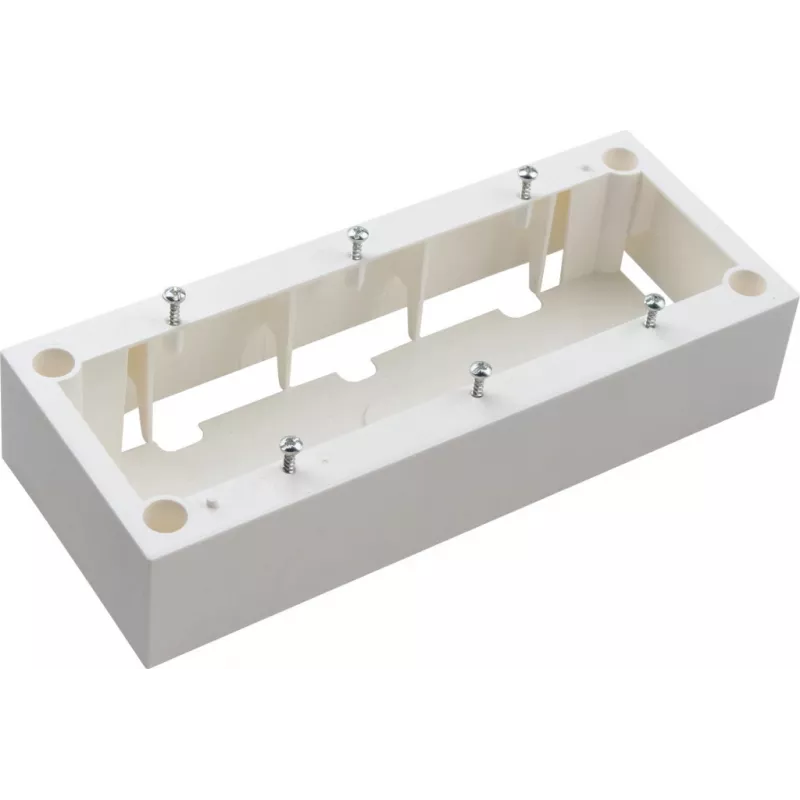

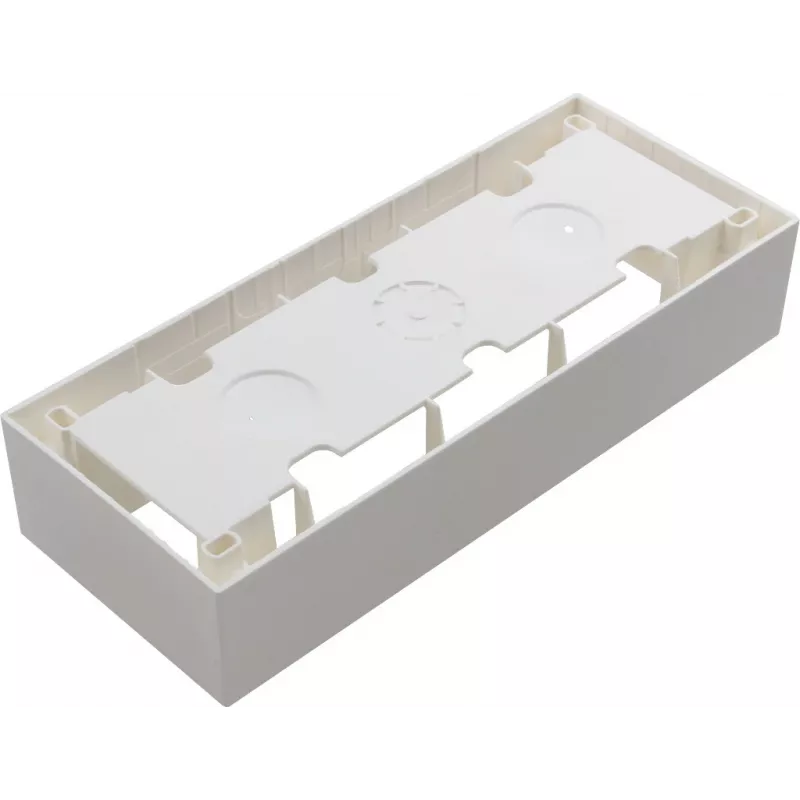

JAVEL toma triple de superficie 6 módulos M45 blanca

Electricians and installers working on residential or commercial projects often need a reliable way to mount multiple electrical modules on a wall without cutting deep recesses. This JAVEL surface-mounted box provides a practical solution: it accommodates up to six M45 modules (45x45 mm) in a triple-section layout, allowing you to combine switches, sockets, data ports, and other Simon 54 series inserts in one neat enclosure. Made from high-quality ABS plastic in white, it blends with most interiors and offers straightforward screw-on installation.

Key specifications

• Product type: surface-mounted installation box
• Series compatibility: Simon 54
• Module capacity: 6 modules (M45 standard, 45x45 mm)
• Number of sections: 3
• Mounting: surface (screw-on)
• Material: high-quality ABS plastic
• Colour: white
• IP protection: IP20 (indoor dry locations)
• Impact resistance: IK05
• Halogen-free: yes
• Operating temperature: -5°C to +40°C
• Fire resistance: glow-wire test 850°C
• Certifications: CE
• Manufacturer: Kontakt-Simon

Why choose it

The box is designed for flexibility and durability. Its integrated knockouts simplify cable entry from multiple directions, while the ABS housing withstands everyday impacts. The triple-section design lets you organize different functions—power, data, control—within a single faceplate, reducing wall clutter. Because it is halogen-free and meets CE standards, it is a safe choice for modern installations.

Ideal use cases

• Adding extra sockets or switches in rooms where chasing walls is impractical.
• Installing data and AV modules alongside power in offices or home theaters.
• Retrofitting older buildings with surface-mounted wiring systems.
• Creating modular control panels in workshops or utility areas.

Good to know

The box is intended for indoor use only (IP20). It is compatible with all Simon 54 series modular inserts with M45 dimensions. For a complete installation, you will need the desired inserts and a compatible cover frame (sold separately). Always follow local wiring regulations and use appropriate fixing screws for the wall type.
