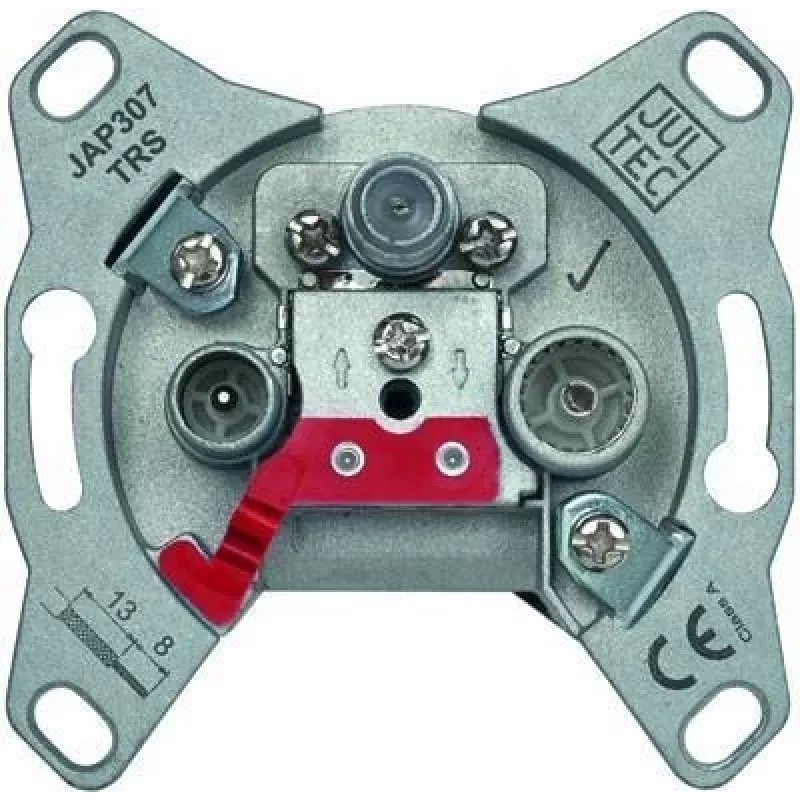

Jultec JAP307TRS toma de antena individual programable con atenuación de derivación de 7 dB para TV, radio y SAT

The Jultec JAP307TRS is a programmable single outlet antenna socket engineered for satellite and terrestrial signal distribution in modern residential and commercial installations. It delivers a robust 7 dB tap loss across TV, Radio, and SAT bands, ensuring consistent signal levels while supporting a return path for interactive services. This flush-mount socket integrates seamlessly into Jultec JPS systems, allowing precise adjustment of return path attenuation and outlet activation via the system controller. With Class A shielding and DC pass for LNB power, it provides reliable performance for demanding RF environments.

Advantages

Programmable return path attenuation enables fine-tuning of upstream signals to minimize interference and optimize network performance. The socket's 7 dB tap loss is ideal for balancing signal levels in cascaded installations, while its three outputs (TV, Radio, SAT) cover all common reception needs. DC pass capability (max. 500 mA) powers satellite LNBs directly through the socket, simplifying cabling. High isolation between outputs (>20 dB) prevents cross-interference, and Class A shielding ensures excellent immunity to external noise. The flush-mount design offers a clean, professional finish.

Suitable for

• Satellite and terrestrial TV distribution in single-family homes and apartments
• Jultec JPS system installations requiring programmable outlets
• Return path applications such as cable modem and interactive TV
• Installations where LNB power must be fed through the socket
• Flush-mount wall installations in living rooms, offices, and hotels

Key specifications

• Socket type: Single outlet (end-of-line)
• Outputs: TV (IEC female), Radio (IEC male), SAT (F-connector)
• Tap loss: 7 dB (TV, Radio, SAT)
• Frequency range: 5–862 MHz (TV/Radio), 950–2400 MHz (SAT)
• Return path: 5–65 MHz, programmable attenuation
• DC pass: Yes, max. 500 mA (SAT output)
• Shielding class: A
• Impedance: 75 Ohm
• Mounting: Flush-mount
• Isolation: >20 dB (TV-Radio, TV-SAT)
• Return loss: >10 dB

Recommendations

For optimal performance, pair the JAP307TRS with a Jultec JPS system controller to utilize its full programmability. Ensure proper termination of unused outputs with 75 Ohm caps to maintain signal integrity. When powering an LNB through the socket, verify that the total current draw does not exceed 500 mA. Use high-quality coaxial cables and F-connectors for SAT connections to minimize losses.
