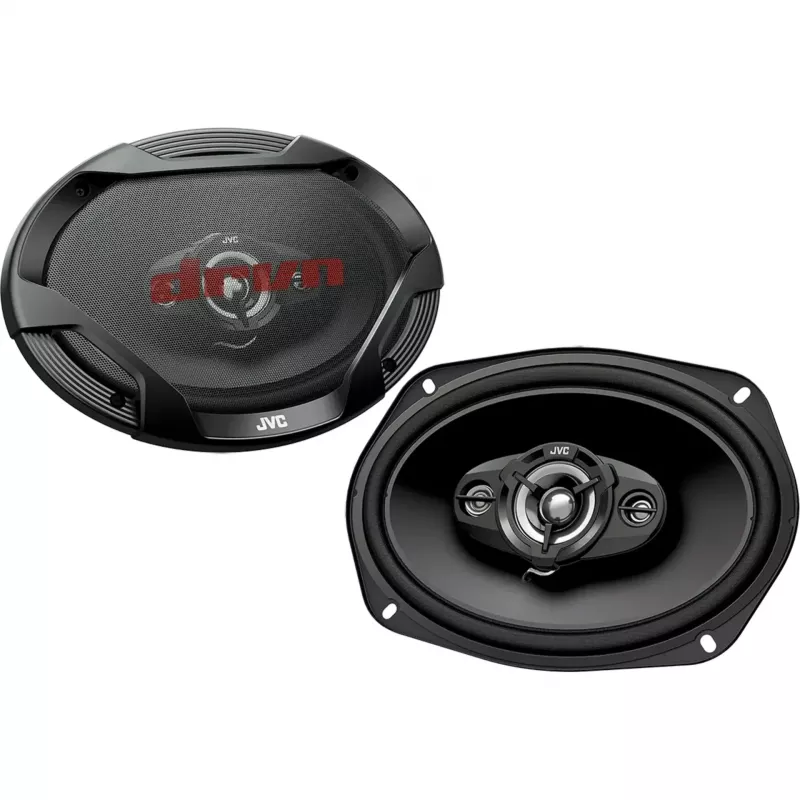

JVC CS-DR6942 6x9 pulgadas Altavoz coaxial de 4 vías para coche, 500W de potencia máxima, woofer de carbono-mica, tweeter de cúpula PEI, par

The JVC CS-DR6942 stands out with its 4-way coaxial design, combining a carbon mica woofer with three separate PEI dome drivers to deliver a wide, detailed soundstage that typical 2-way or 3-way speakers can't match. This pair of 6x9 inch speakers is built for listeners who want clear highs, natural mids, and punchy bass without needing a separate component system.

Highlights

• 4-way coaxial configuration: woofer, midrange, tweeter, and super tweeter for full-range clarity
• Carbon mica woofer cone for rigid, low-distortion bass response
• Hybrid rubber coated cloth surround improves durability and linear excursion
• Ferrite woofer magnet and neodymium tweeter magnet for efficient, compact performance
• 500W peak power per pair (70W RMS per speaker) handles dynamic music with ease
• 88 dB sensitivity at 1W/1m ensures efficient output from factory or aftermarket head units
• Includes grilles for a clean, protected installation

In daily use

Install the CS-DR6942 in standard 6x9 locations and you'll immediately notice the extra presence in vocals and cymbals thanks to the dedicated midrange and super tweeter. The carbon mica cone keeps bass tight even at higher volumes, while the hybrid rubber coated cloth surround resists heat and humidity better than plain foam. With a mounting depth of 79 mm and cutout dimensions of 153 x 222 mm, these speakers fit many vehicles without major modifications. The included grilles protect the drivers while maintaining an OEM-like appearance.

Full specifications

• Speaker type: 4-way coaxial
• Speaker size: 6x9 inch (16x24 cm)
• Peak power handling: 500W per pair
• RMS power handling: 70W per speaker
• Impedance: 4 ohms
• Frequency response: 65 Hz – 24,000 Hz
• Sensitivity: 88 dB/W at 1m
• Woofer cone material: carbon mica
• Midrange dome material: poly-ether imide (PEI)
• Tweeter dome material: poly-ether imide (PEI)
• Super tweeter dome material: poly-ether imide (PEI)
• Woofer magnet type: ferrite
• Tweeter magnet type: neodymium
• Surround material: hybrid rubber coated cloth
• Mounting depth: 79 mm (3-1/8")
• Cutout dimensions: 153 x 222 mm (6-1/16" x 8-3/4")
• Grille included: yes
• Number of speakers: 2 (pair)

Final note

For an easy upgrade that fills your car with balanced, energetic sound, the JVC CS-DR6942 delivers a complete 4-way solution in a drop-in 6x9 format.
