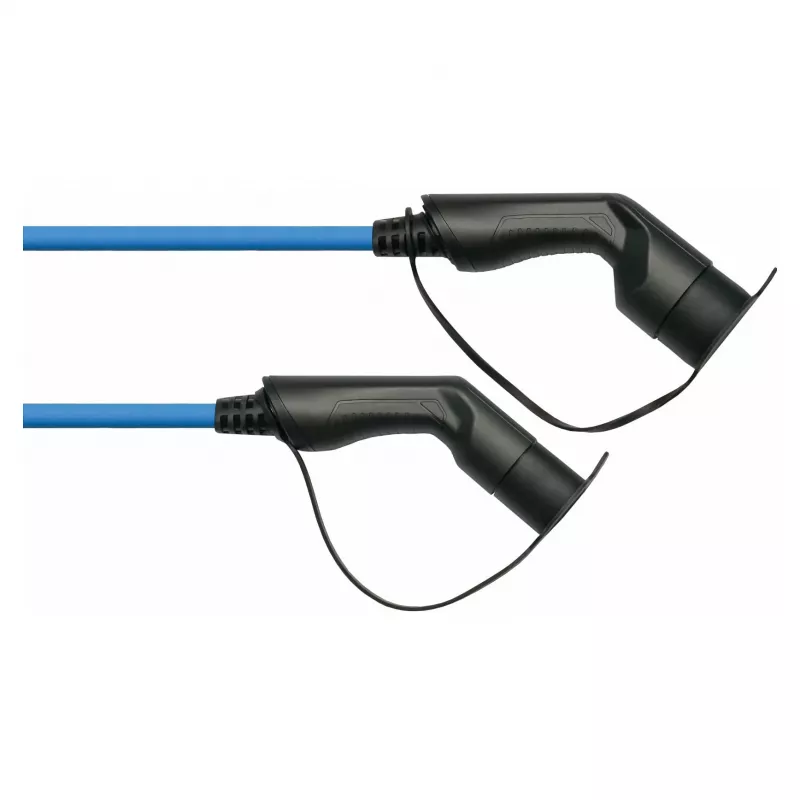

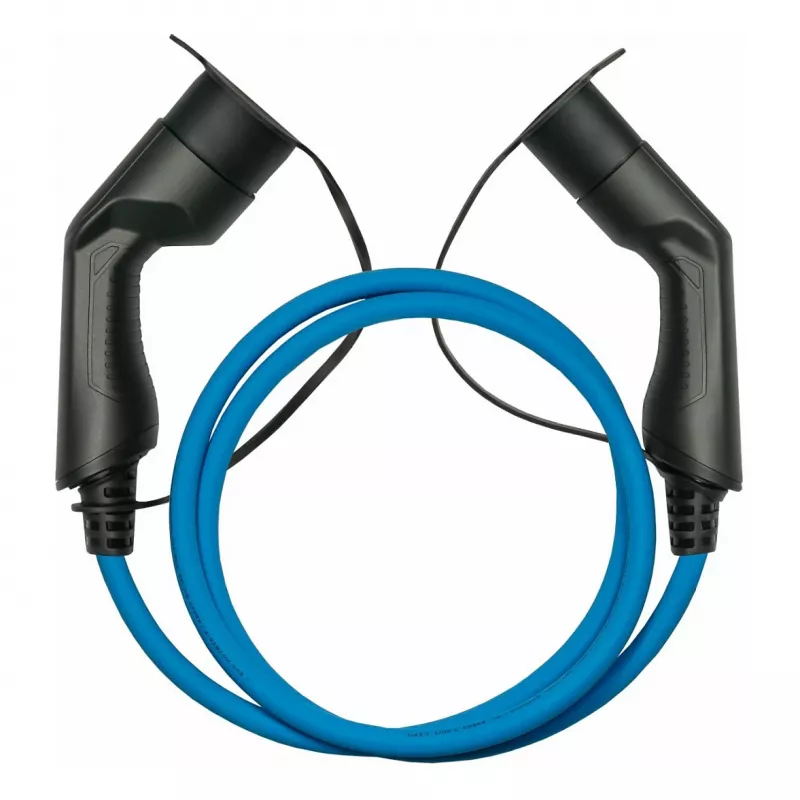

KABELMEISTER Cable de carga para VE Modo 3, conector Type 2 macho a hembra, trifásico, 16A, 11kW, azul, 7,5m

The KABELMEISTER EVC01-075B is a high-quality Mode 3 electric vehicle charging cable designed for safe and efficient charging. With Type 2 connectors on both ends, it serves as an extension cable for your EV charger, offering flexibility and convenience. This 3-phase cable supports up to 16A and 11kW, making it suitable for a wide range of electric vehicles.

Advantages

Robust TPE jacket ensures durability and flexibility even in extreme temperatures from -30°C to +50°C. The IP54 protection rating provides resistance against dust and splashing water, making it ideal for outdoor use. Copper conductors guarantee excellent conductivity and minimal power loss.

Suitable for

• Electric vehicles with Type 2 charging ports
• Extending the reach of your existing charging station
• 3-phase charging systems up to 11kW

Key specifications

• Charging Mode: Mode 3
• Connector 1: Type 2 male plug
• Connector 2: Type 2 female socket
• Rated Voltage: 400V AC
• Maximum Current: 16A per phase
• Maximum Power: 11kW (3-phase)
• Cable Length: 7.5m
• Cable Colour: Blue
• Standards: IEC 62196-2
• Protection Class: IP54 (mated)
• Operating Temperature: -30°C to +50°C
• Conductor Material: Copper
• Jacket Material: TPE

Recommendations

For optimal performance, ensure your charging station and vehicle are compatible with Mode 3 charging and Type 2 connectors. This cable is not intended for DC fast charging.
