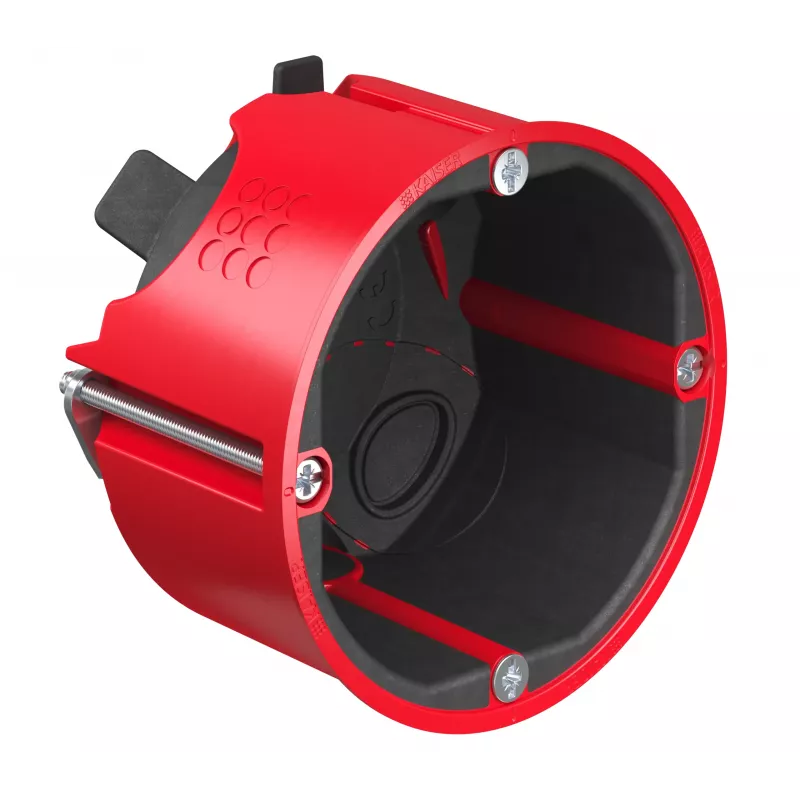

Kaiser Elektro caja para tabique hueco de protección contra incendios 9463-03 HWD 68+ GD

The Kaiser Elektro Brandschutz-Dose 9463-03 HWD 68+ GD is a high-quality fire protection cavity wall box designed for secure and safe electrical installations in drywall constructions. This model is part of the HWD 68 series, offering reliable fire resistance from F30 to F90 depending on the wall structure. It is engineered to maintain the integrity of fire compartments while providing ample space for cable connections.

Advantages

This fire protection box ensures enhanced safety with its integrated fire protection compound that expands in case of fire, sealing off the opening and preventing the spread of flames and smoke. The tool-free cable entry system allows for quick and easy installation, saving time and effort. Its halogen-free plastic material contributes to low smoke emission and reduced toxicity in fire scenarios, making it ideal for public buildings and escape routes.

Suitable for

• Installation in cavity walls (drywall) with plate thicknesses from 5 to 40 mm
• Use in fire-resistant walls requiring F30 to F90 ratings
• Routing of NYM cables and conduits in fire-protected areas
• Applications demanding air-tightness and halogen-free materials

Key specifications

• Product Type: Fire Protection Cavity Wall Box
• Model Series: HWD 68
• Drilling Diameter: 68 mm
• Installation Depth: 61 mm
• Material: Halogen-free plastic
• Fire Resistance Class: F30 to F90 (depending on wall structure)
• Air-tightness: Yes
• Cable Entries: 8 (for NYM cables)
• Conduit Entries: 2 (for conduits)
• Conduit Entry Diameter: M20 / M25
• Plate Thickness Range: 5 - 40 mm
• Mounting Type: Screw mounting
• Protection Class (IP): IP30
• Special Features: Integrated fire protection compound, tool-free entry
• Color: Orange

Recommendations

For optimal fire safety, always ensure that the cavity wall box is installed according to the manufacturer's guidelines and that the wall structure matches the required fire resistance class. Pair with appropriate fire-resistant cables and conduits for a complete solution.
