Kit de breakout Cobbler ALLNET ALL-BRICK-0374 accesorio para placa de desarrollo

The ALLNET ALL-BRICK-0374 Cobbler breakout kit is an accessory for the Brick ’R’ knowledge development board that provides 19 educational bricks to introduce basic electronic components and circuits. The kit visualizes key units and operations and is suitable as a starting point for long-term learning in electronics and for adapting lessons to individual requirements.

Advantages

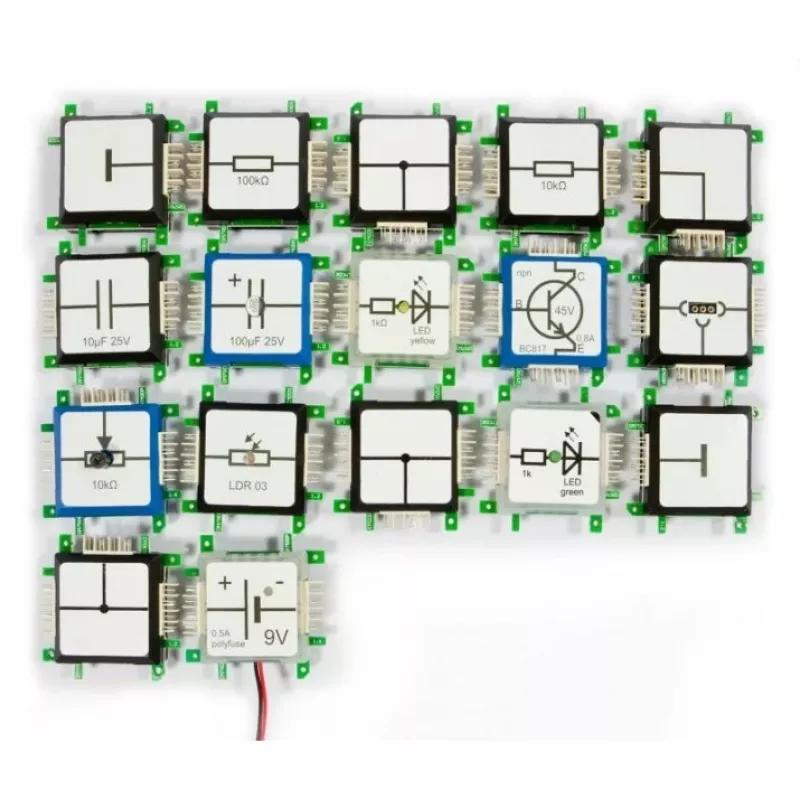

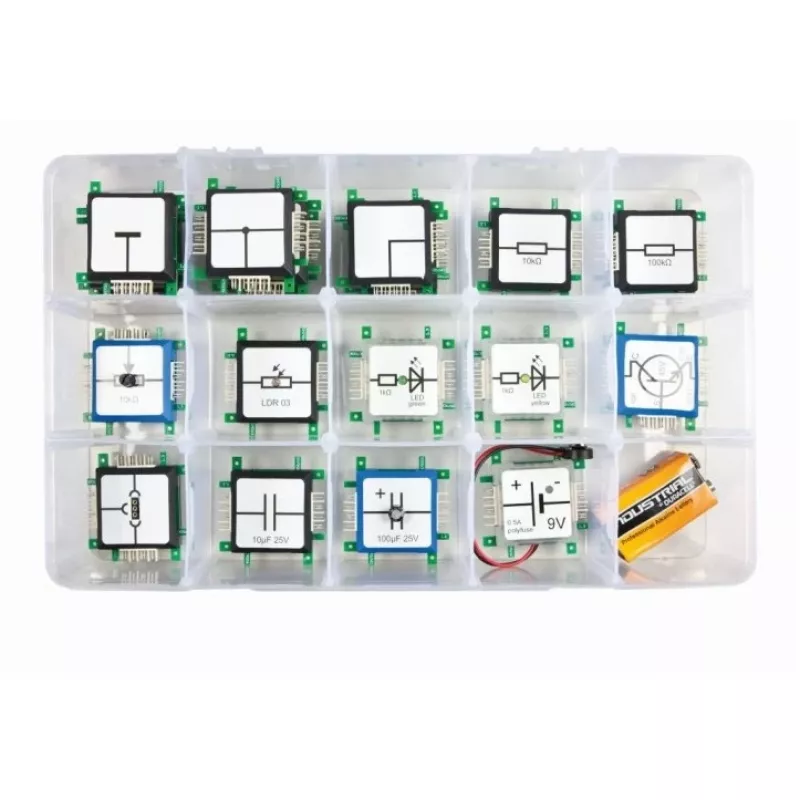

The set includes a balanced selection of passive and active components—LEDs, resistors, capacitors, a transistor and a potentiometer—plus connection and routing bricks that allow building both simple and more demanding circuits. Components are compatible with the Brick ’R’ knowledge open-source educational system and the kit is lightweight and easy to integrate with development boards using the Cobbler breakout format.

Suitable for

• Beginners learning basic electronics concepts
• Educational workshops and classroom exercises
• Prototyping simple circuits with the Brick ’R’ knowledge system
• Hands-on demonstrations of LEDs, resistors, capacitors, photoresistors and transistors

Key specifications

• Contents: 19 bricks (list below)
• Included parts: battery adapter (113628), manual Basic Set (116008), LED yellow (113638), LED green (113369)
• Connection bricks: 2 x lines corner brick (113632), 3 x lines ground brick (113630), 3 x lines T-crossing (113633), 1 x universal brick (116009)
• Passive components: potentiometer 10 kΩ (113654), resistor 10 kΩ (113648), resistor 100 kΩ (113649), photoresistor LDR 03 (113655)
• Capacitors: 1 x 10 µF 25 V (113667), 1 x 100 µF electrolytic 25 V (113669)
• Active components: transistor NPN BC817 (113657)
• Manufacturer: ALLNET, MPN ALL-BRICK-0374, EAN 4038816115584
• Weight (approx.): 635 g

How to use

Consult the included manual to follow step-by-step exercises that explain how to assemble circuits using the bricks. Connect the battery adapter to provide power, place LEDs, resistors, capacitors and the transistor into the matching slots, and use the connection bricks to build signal paths. Adjust the potentiometer and observe changes with the LEDs or the photoresistor to learn about voltage division, current limitation and basic transistor switching.

Recommendations

Use the kit on a stable, non-conductive surface and follow safety guidelines when working with batteries and polarized components. Start with simple circuits from the manual before attempting more complex configurations, and combine this Cobbler breakout kit with compatible Brick ’R’ knowledge modules or development boards for extended experiments.
