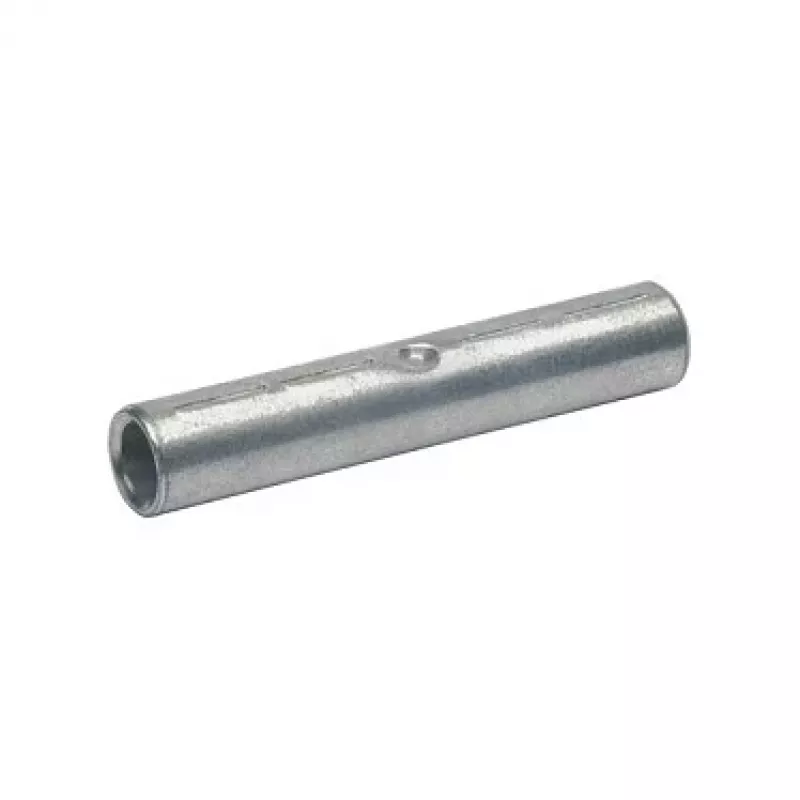

KLAUKE 125R Terminal tubular de cobre, recto, estañado, 35 mm², 8,2 mm (M8)

The KLAUKE 125R is a high-quality tube cable lug designed for reliable electrical connections in power cables, grounding, and electrical installations. Made from electrolytic tinned copper, it offers excellent corrosion resistance and conductivity. The straight design with a bolt hole diameter of 8.2 mm (nominal bolt size M8) ensures a secure fit for 35 mm² conductors. Conforms to DIN 46235 standard.

Advantages

Electrolytic tinned copper material provides superior corrosion protection and long-lasting performance. The inspection hole allows for easy verification of proper conductor insertion. Suitable for a wide temperature range from -55°C to +150°C and rated up to 1000 V. RoHS compliant.

Suitable for

• Power cables
• Grounding systems
• Electrical installations
• Industrial and commercial wiring

Key specifications

• Product Type: Tube Cable Lug
• Material: Electrolytic Tinned Copper
• Conductor Cross-Section: 35 mm²
• Bolt Hole Diameter: 8.2 mm
• Nominal Bolt Size: M8
• Design: Straight
• Connection Method: Crimp
• Standard Conformance: DIN 46235
• Surface Treatment: Tinned
• Corrosion Protection: Yes
• Inspection Hole: Yes
• Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V
• RoHS Compliant: Yes
• Series: 125R

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper conductor insertion. Verify compatibility with your application requirements.
