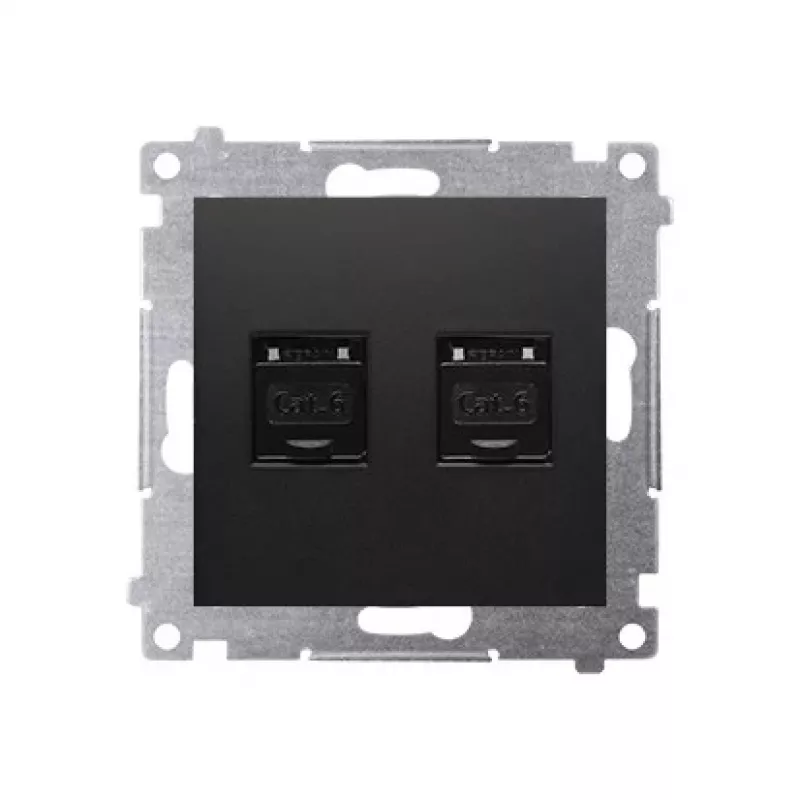

KONTAK-SIMON Simon 54 Premium módulo de datos Cat.6 UTP doble RJ45, negro mate, con tapas antipolvo

The Simon 54 Premium module from KONTAK-SIMON solves a common frustration in structured cabling: twin RJ45 ports in a single 45x45 mm footprint, without the bulk or exposed contacts that plague generic inserts. Its flat profile and integrated dust covers keep the face clean and protected, while the colour-coded T568A/B terminals make termination straightforward for installers.

Highlights

• Two RJ45 (8P8C) sockets in one compact 2-module insert
• Cat.6 performance: up to 1 Gbps and 250 MHz bandwidth
• Unshielded (UTP) design with robust PC/ABS housing
• Integrated flat dust covers protect ports when not in use
• Black matt finish blends into modern interiors
• Supports T568A and T568B wiring standards

In daily use

This module is intended for flush or surface mount frames in the Simon 54 series. The flat design minimises protrusion, reducing the chance of accidental damage in high-traffic areas. The dust covers snap closed when a port is free, keeping out debris and maintaining a tidy appearance. The black matt surface resists fingerprints and scratches, so it continues to look clean even after repeated handling.

Full specifications

• Brand: KONTAK-SIMON
• Model: D62.01/49
• Series: Simon 54 Premium
• Product type: Network data socket module
• Number of ports: 2
• Connector type: RJ45 (8P8C)
• Network category: Cat.6
• Shielding: UTP (unshielded twisted pair)
• Colour: Black matt
• Mounting: Module for flush/surface mount frames
• Wiring standard: T568A/B (colour-coded)
• Transmission speed: Up to 1 Gbps
• Frequency bandwidth: Up to 250 MHz
• Module size: 2M (2 modules), 45x45 mm standard
• Material: High-quality plastic (PC/ABS)
• IP rating: IP20
• Design: Flat profile
• Dust cover: Yes, integrated

Final note

A dependable dual-port Cat.6 solution that keeps connections tidy and protected, ideal for both new installations and retrofits within the Simon 54 ecosystem.
