Adaptador acodado HDMI Kramer AD-HF/HF/RA-FLAT hembra a hembra 99-9797211

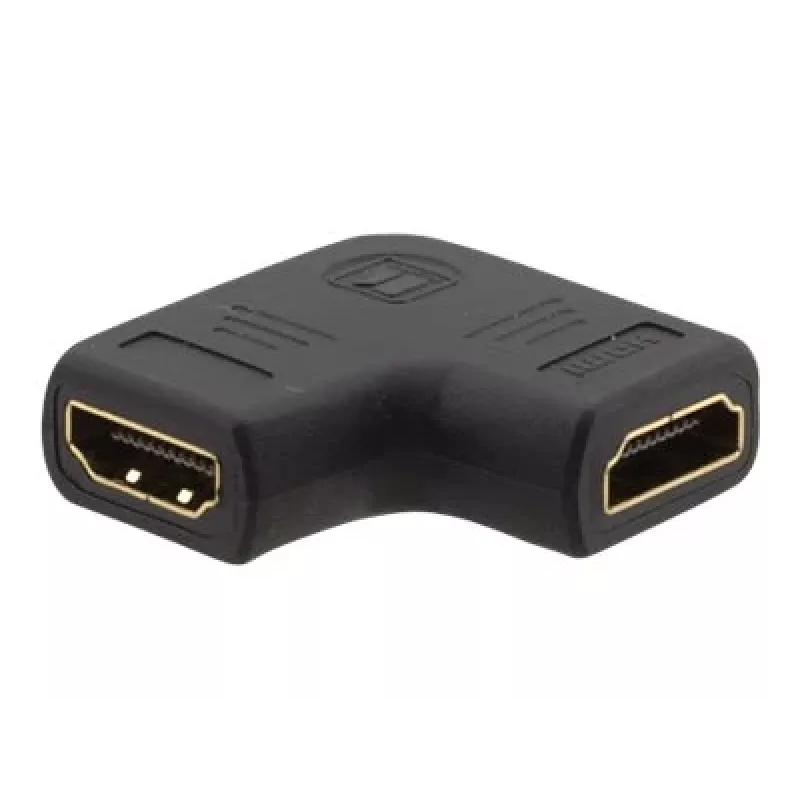

This HDMI coupler joins two standard HDMI cables and turns the connection 90 degrees, solving tight-space installations behind wall-mounted displays or inside cabinets. Its flat right-angle design keeps the profile low while maintaining full HDMI 2.0b signal integrity up to 4K@60Hz.

Advantages

Gold-plated female-to-female connectors ensure reliable contact and corrosion resistance. The passive adapter supports HDR, HDCP 2.2, ARC, CEC and Deep Color with an 18 Gbps data rate, making it transparent to your AV signal chain.

Suitable for

• Connecting two HDMI cables in confined spaces
• Wall-mounted TVs and projectors with rear-facing ports
• AV racks and furniture where cable bend radius is limited

Key specifications

• Connector 1: HDMI Type A Female
• Connector 2: HDMI Type A Female
• Angle: Right-angled (90°)
• HDMI version: 2.0b
• Max resolution: 4K@60Hz
• Data rate: 18 Gbps
• Supported features: HDR, HDCP 2.2, ARC, CEC, Deep Color
• Connector plating: Gold
• Housing material: High-grade PVC/ABS
• Colour: Black

Recommendations

Use with certified High Speed HDMI cables to guarantee 4K HDR performance. For permanent installations, secure the coupler with a cable tie or adhesive pad to prevent strain on the HDMI ports.
