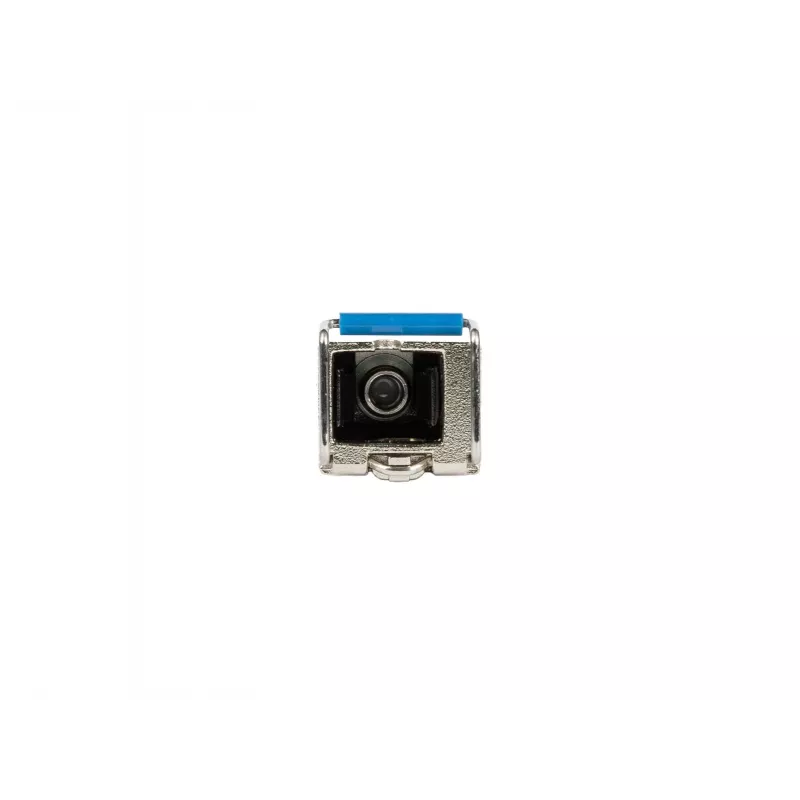

Lanberg módulo SFP BiDi, hasta 3 km, 1 Gb/s, 1310/1550 nm, SC/UPC, tipo A (SFP1-BIDI-SU-1-03-A)

The Lanberg SFP1-BIDI-SU-1-03-A is a bidirectional SFP transceiver module that enables a fiber-optic connection using a single single-mode fiber. It supports Gigabit Ethernet transmission up to 1.25 Gb/s and uses 1310 nm and 1550 nm wavelengths to separate data transmission and reception. The module features a Simplex SC/UPC connector and is designed for a transmission range of up to 3 km.

Key features

• Bidirectional (BIDI) technology using 1310 nm and 1550 nm wavelengths
• Single-mode fiber (SMF) support
• Simplex SC/UPC connector
• Gigabit Ethernet connection up to 1.25 Gb/s
• Hot-swappable SFP form factor
• Transmission range up to 3 km
• BIDI A version: TX 1310 nm, RX 1550 nm
• Operates only as a complementary A + B pair

Specifications

• Product type: Transceiver Module
• Brand: Lanberg
• MPN: SFP1-BIDI-SU-1-03-A
• Form factor: SFP
• Maximum data transfer rate: 1 Gbps
• Fiber optic connector: SC
• Connector: SC/UPC
• Fiber type: Single-mode
• Range: 3 km
• Wavelengths: 1310 nm, 1550 nm
• Ethernet LAN: Yes
• Transmitter Power (Tx Power): -9 - -3 dBm
• Receiver Sensitivity (Rx Sens.): -22 dBm
• Receiver Overload Threshold (Rx Overload): -3 dBm
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
