Lanview LVO-101020 Panel deslizante de fibra óptica ODF, LC SM OS2, 48 fibras, 1HE

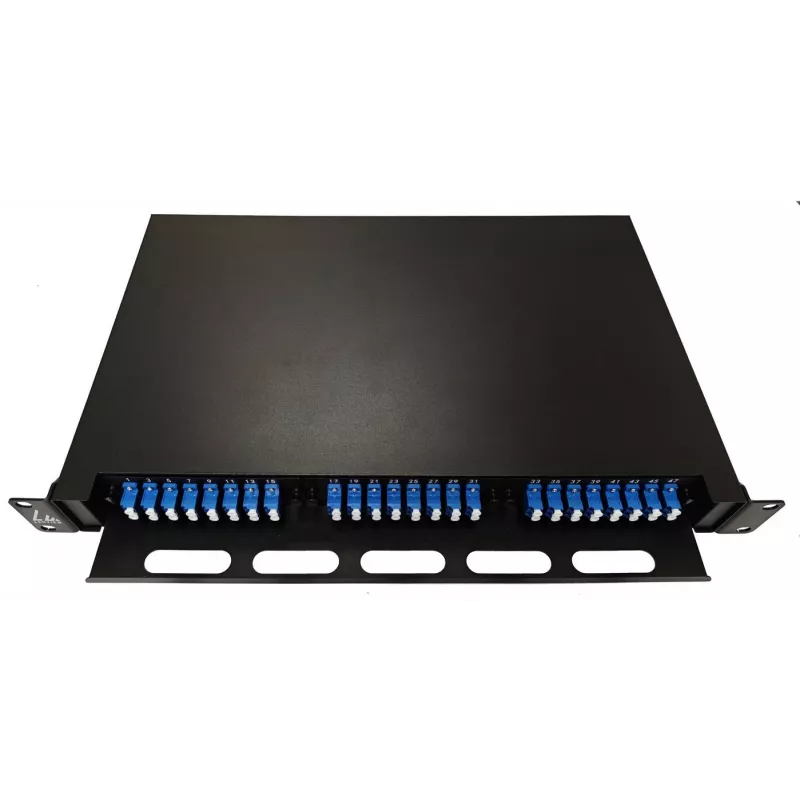

The Lanview LVO-101020 1U 19-inch indoor sliding panel is a compact optical distribution frame (ODF) designed for fiber management in rack-mounted network installations. It supports 48-core capacity with 24 LC duplex ports, preloaded with LC/UPC singlemode duplex adapters and equipped with LC/UPC G.657.A2 0.9 mm LSZH pigtails (1 m) that are colour-coded for straightforward identification.

Advantages

The slide-out design provides easy access to internal connections for installation and maintenance without removing the entire unit from the rack. Preloaded LC/UPC adapters and factory-terminated G.657.A2 pigtails reduce on-site termination time and ensure consistent singlemode performance. LSZH sheathing improves safety in indoor environments by limiting hazardous smoke and halogen emission in case of fire.

Suitable for

• Data centre rack fibre management
• Telecom and central office patching
• Enterprise network cabinets
• FTTx and backbone fiber panels

Key specifications

• Form factor: 1U, 19-inch rack-mount sliding panel
• Capacity: 48 cores (24 LC duplex ports)
• Adapter type: LC/UPC singlemode duplex, full loaded
• Pigtails: LC/UPC, G.657.A2, 0.9 mm, 1 m length, LSZH, colour coded
• Design feature: Slide-out drawer for easy access
• Brand: Lanview, MPN: LVO-101020, EAN: 5715063809358

How to use

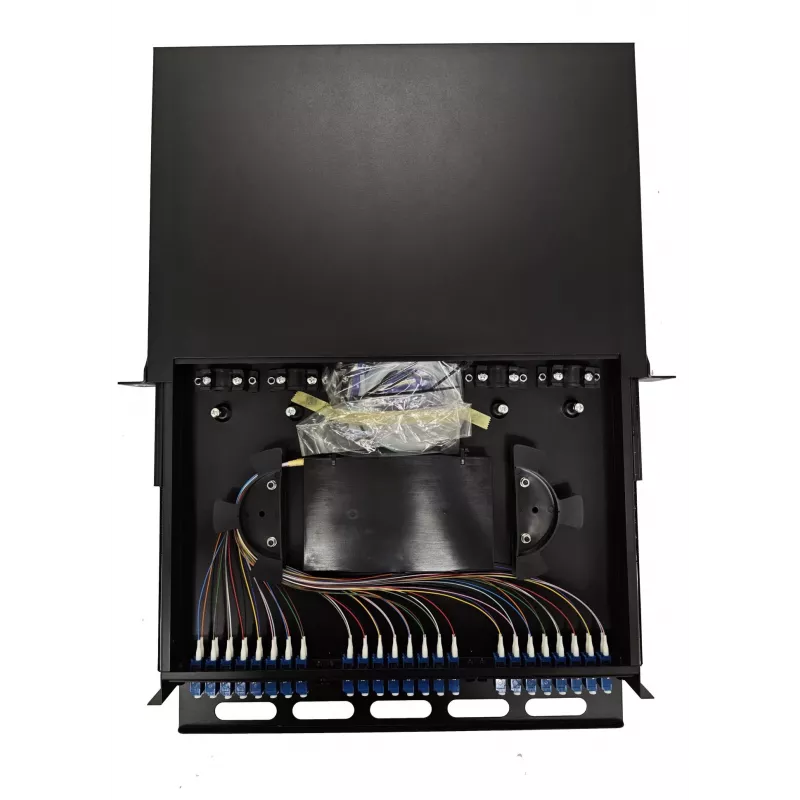

Mount the panel in a standard 19-inch rack occupying 1U of space. Pull the slide-out drawer to access the internal adapters and pigtails. Route incoming fibre cables to splice locations or patch cords to the LC/UPC adapters, then secure fibres and manage excess cable within the tray to maintain bend-radius and organization. Close the drawer after work is completed.

Recommendations

Handle pigtails and connectors with care to avoid contamination or bending below the minimum radius. Use fibre-cleaning tools before mating connectors and follow standard optical fibre safety procedures when installing and maintaining the ODF.
