LANVIEW Quick Assembly Flat Pack armario de red de pared 19" 9U, 600x450x500mm, negro

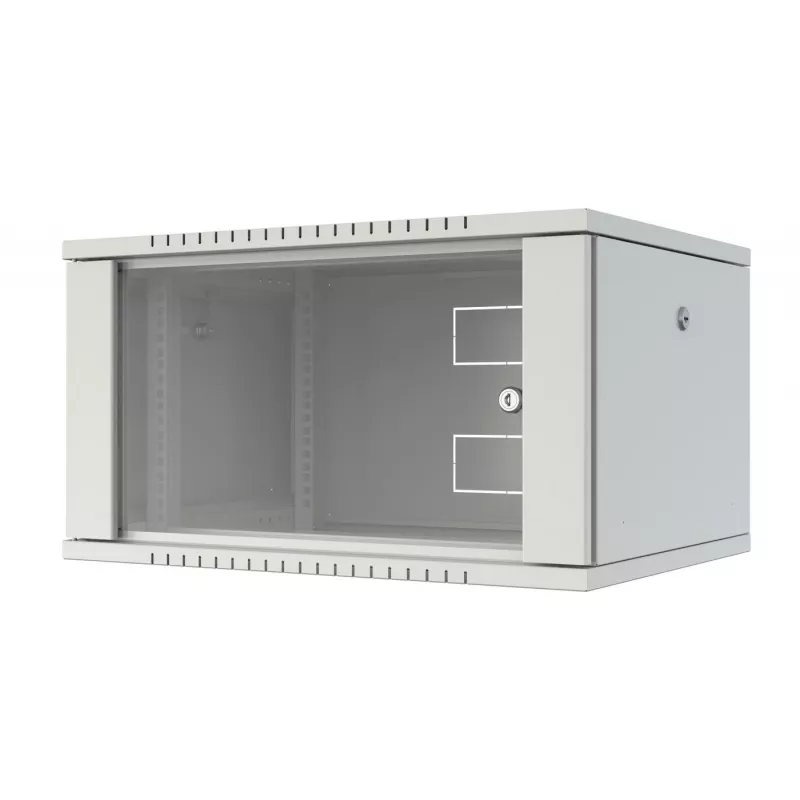

For compact spaces where floor area is limited, the LANVIEW Quick Assembly Flat Pack 19 offers a 9U wall-mount network cabinet that arrives flat-packed for efficient shipping and rapid on-site assembly. Unlike pre-assembled cabinets, its quick-assembly design reduces storage and transport costs while delivering the same professional rack integration. The tempered glass front door with key lock provides secure visibility of equipment LEDs, and the removable, lockable side panels allow convenient access during installation and maintenance.

Highlights

• Quick assembly flat-pack design – easy to build and install
• Wall-mount 19-inch cabinet with 9U of rack space
• Tempered glass front door with key lock
• Removable, lockable side panels for convenient access
• Cable entry points top and bottom with brush strips
• Passive ventilation with fan-ready top panel
• Cold rolled steel construction with powder-coated finish
• Supports up to 60 kg static load

In daily use

This cabinet is ideal for small server rooms, offices, or retail spaces where floor area is limited. Mount it securely to the wall using the included brackets. The 9U height accommodates switches, patch panels, and compact servers. The glass door allows quick monitoring of LEDs and equipment status without opening the cabinet. Cable management is made simple with brush strips at the top and bottom, keeping installations neat and professional.

Full specifications

• Rack standard: 19-inch
• Rack units: 9U
• Cabinet type: Wall mount
• Assembly type: Quick assembly, flat pack
• External dimensions: 600 x 450 x 500 mm (W x D x H)
• Material: Cold rolled steel
• Colour: Black (RAL 9005)
• Front door: Tempered glass with key lock
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan-ready top panel
• Static load capacity: 60 kg
• IP protection rating: IP20
• Finish: Powder coated
• Mounting hardware: Included (wall mounting brackets)
• Compliance: IEC 60297, DIN 41494

Final note

The LANVIEW Quick Assembly Flat Pack 19 combines security, flexibility, and efficient logistics, making it a smart choice for professional network installations in constrained environments.
