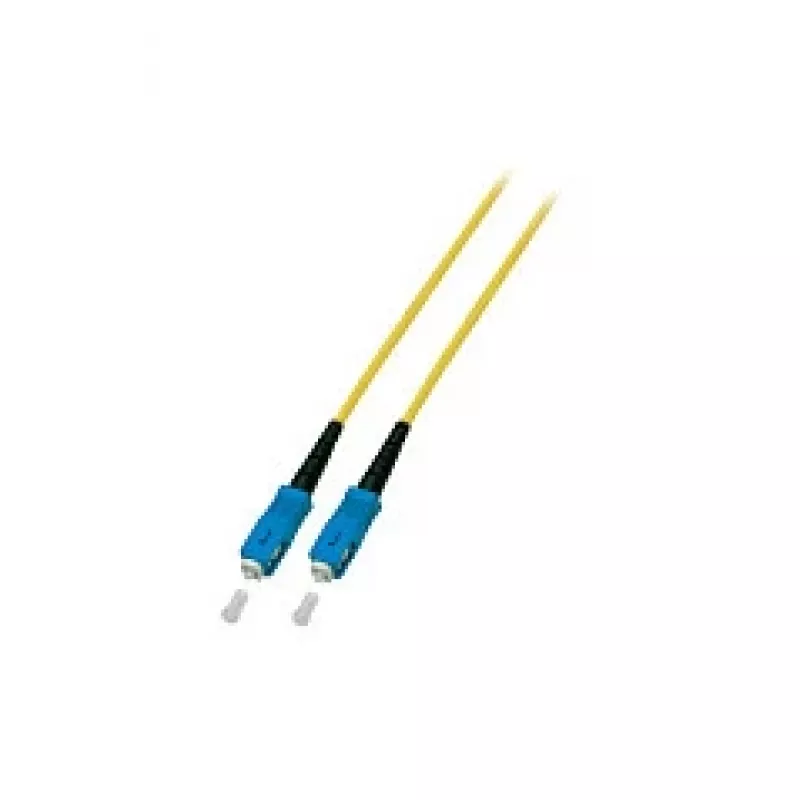

Latiguillo simplex EFB Elektronik SC-SC 9/125 OS2 LSZH amarillo 3,0 mm 20 m

The EFB Elektronik Simplex Jumper SC-SC is a high-quality fiber optic patch cable designed for reliable single-mode connections in indoor environments. With a length of 20 meters and a 3.0 mm diameter, this cable features bend-insensitive G.657.A2 fiber, ensuring excellent performance even in tight installations. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety by reducing toxic fumes in case of fire.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥50 dB), ensuring optimal signal integrity. The SC/PC connectors provide secure and easy connections, while the yellow jacket allows for quick identification. The bend-insensitive fiber minimizes signal loss when bent, making it ideal for space-constrained areas.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LANs) requiring single-mode fiber

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (OS2)
• Connector Type: SC/PC to SC/PC
• Fiber Standard: ITU-T G.657.A2
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 20 m
• Cable Diameter: 3.0 mm
• Jacket Color: Yellow
• Jacket Material: LSZH
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/PC interfaces and is suitable for use with optical transceivers and patch panels.
