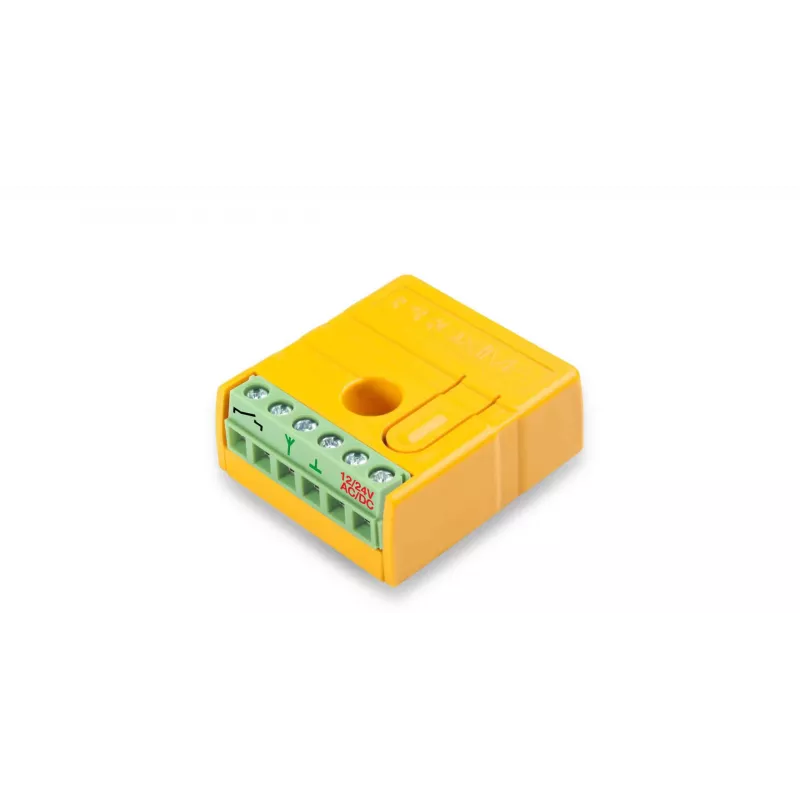

Proxima NW1 SP Receptor universal por radiofrecuencia para CAME SPACE

The Proxima NW1 SP is a universal radio receiver designed for seamless integration with CAME SPACE remote controls. This compact and reliable device enables wireless control of gate automation, garage doors, and access control systems. With a rolling code system and support for up to 1000 remote controls, it offers enhanced security and flexibility for residential and commercial applications.

Advantages

Easy to install with screw terminals and internal mounting. The receiver features an internal antenna with an option for an external antenna connection to extend range. Its low power consumption and wide operating temperature range ensure reliable performance in various environments.

Suitable for

• Gate automation systems
• Garage doors
• Access control systems

Key specifications

• Compatibility: CAME SPACE remote controls
• Number of channels: 1
• Operating frequency: 433.92 MHz
• Power supply: 12-24V AC/DC
• Current consumption: Max. 20mA
• Output: 1x Normally Open (NO) relay contact
• Max relay contact load: 1A / 30V DC
• Memory capacity: Up to 1000 remote controls
• Coding type: Rolling Code (CAME SPACE)
• Operating temperature: -20°C to +70°C
• Enclosure material: ABS plastic
• IP rating: IP20
• Antenna: Internal, with external antenna connection option
• Mounting type: Screw terminals, internal mounting
• Programming method: Via button on receiver

Recommendations

For optimal performance, ensure the receiver is mounted in a dry location and the antenna is properly positioned. Compatible with all CAME SPACE rolling code remote controls.
