Foco LED OEM Lamp VS221-200W-S, 200 W, 20000 lm

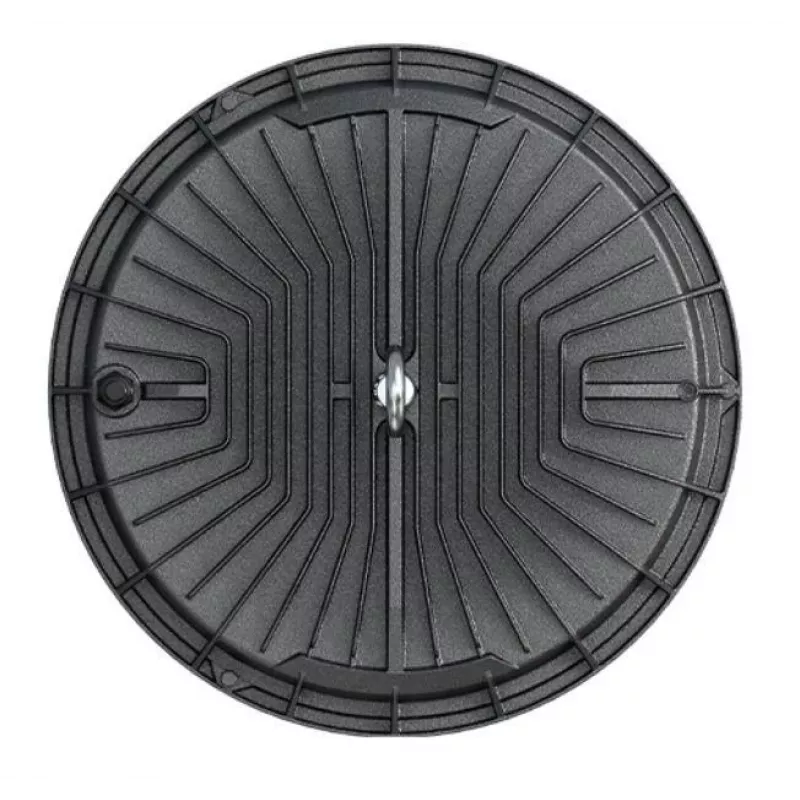

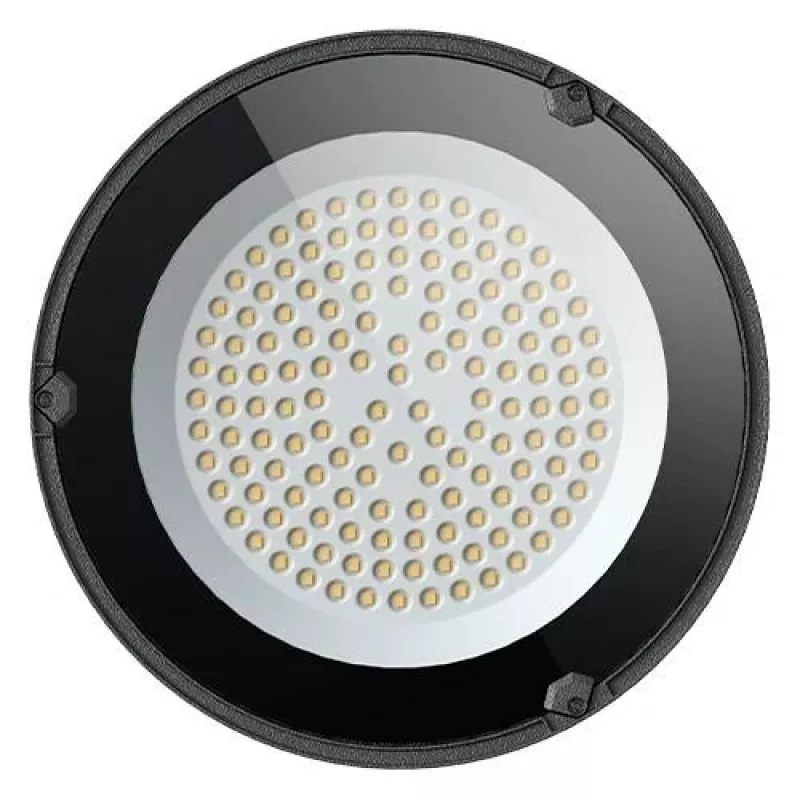

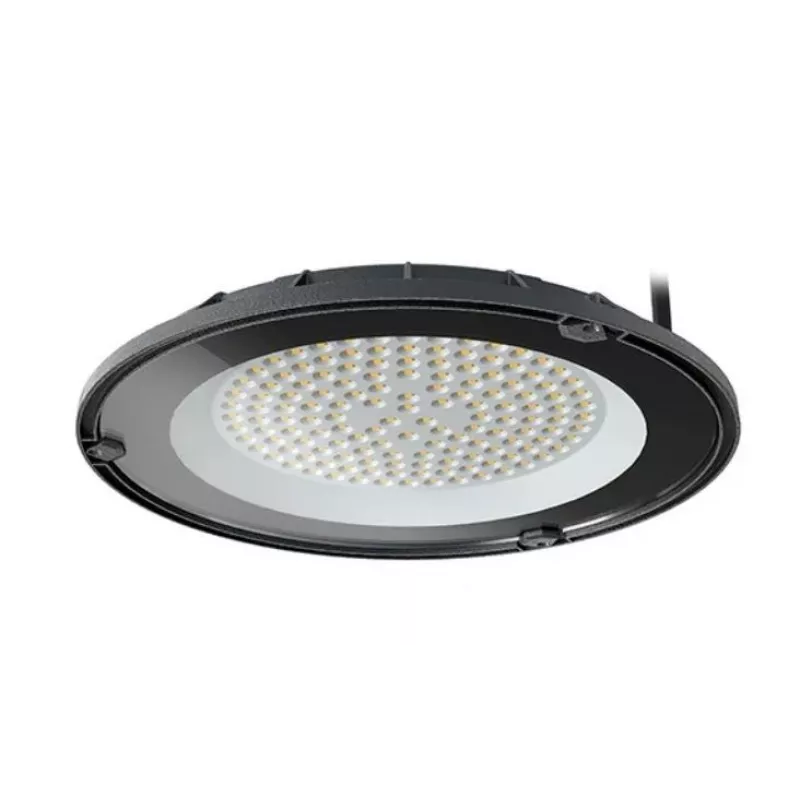

OEM Lamp VS221-200W-S is a 200 W LED floodlight that delivers 20,000 lumens of neutral white light (4000 K). With a beam angle of 110° and AC 220–240 V operation, this floodlight is intended for high-output illumination of outdoor and large indoor spaces such as warehouses, parking lots, building façades, and sports areas. Its compact disc-shaped housing (Ø 346 × 29 mm) is designed for continuous use while reducing the frequency of replacements.

Advantages

The LED floodlight offers high luminous efficacy and stable light output at 200 W power consumption, providing bright, uniform illumination across wide areas. Operating from standard AC 220–240 V, it produces neutral white light (4000 K) that supports good color rendering without excessive glare thanks to a 110° beam angle. The low-profile Ø 346 × 29 mm housing simplifies installation in locations with limited mounting depth and the robust construction reduces maintenance needs.

Suitable for

• Warehouse and industrial halls
• Parking lots and outdoor car parks
• Building facades and external architectural lighting
• Sports grounds and training areas

Key specifications

• Power consumption: 200 W
• Luminous flux: 20,000 lm
• Light colour temperature: 4000 K (neutral white)
• Input voltage: AC 220–240 V
• Beam angle: 110°
• Dimensions: Ø 346 × 29 mm
• Model / MPN: VS221-200W-S
• EAN: 4752233014915

How to use

Mount the floodlight on a stable surface or bracket suitable for outdoor or indoor use, ensuring the fixture is connected to an AC 220–240 V supply by a qualified electrician. Position the unit to provide even coverage of the target area, taking advantage of the 110° beam angle. Avoid covering ventilation openings and follow local electrical codes and safety practices during installation. After installation, switch on the power and check the uniformity and direction of the beam; adjust aiming as needed.

Recommendations

For optimum performance and longevity, use the floodlight with a compatible driver and install in well-ventilated positions to prevent heat buildup. Regularly inspect mounting hardware and electrical connections; replace if damaged. Not suitable for direct connection to dimmers unless specified by the manufacturer.
