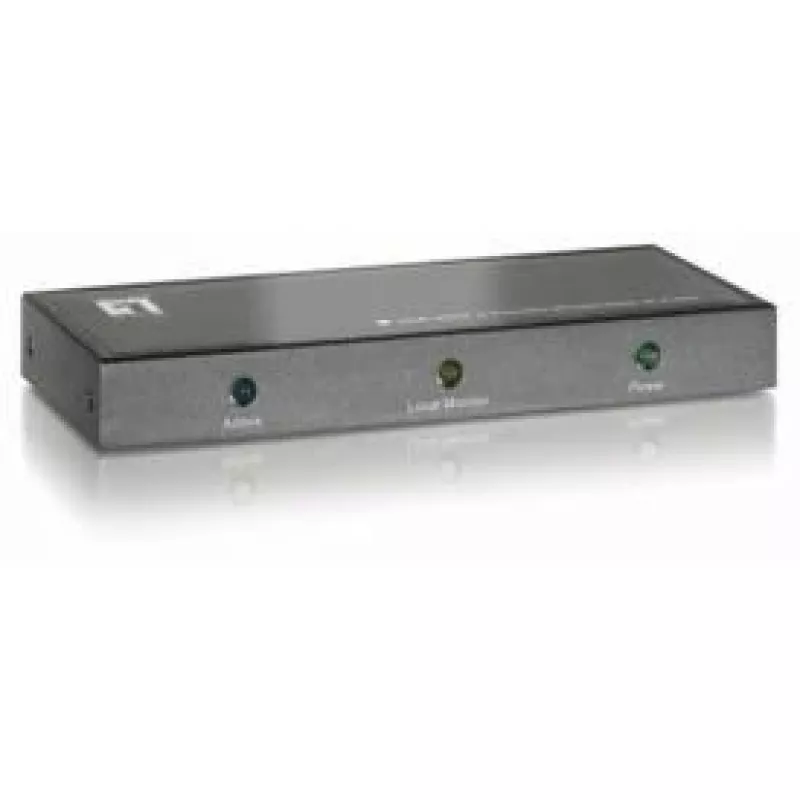

LevelOne ADE-8202 AV-Extender transmisor AV gris

- Transmits DVI signal via Cat.5, Cat.5e, Cat.6 cable
- Transmits stereo audio via 4-wire phone cable
- DVI signal transmission distance up to 70 meters at 1024 x 768 resolution
- Supports high DVI resolution up to 1920 x 1200
- Easy installation and no software required

LevelOne DVI-Broadcaster Series
The LevelOne DVI Broadcaster Series is the perfect solution for malls, plazas, stations, supermarkets or any other environment where real-time information needs to be displayed at different remote viewing locations without the loss of resolution.

The ADE-8200 DVI Broadcaster series from LevelOne is a cost-effective alternative to expensive systems currently available. Without loosing resolution or sound quality, the LevelOne broadcaster series can broadcast DVI video signals over Cat5/5e/6 and stereo audio over 4-wire phone cabling to remote monitors at standard 1024x768 resolution 70 meters away.

Further, the broadcaster series has stackable capability to expand transmission of DVI signals to additional viewing stations. By utilizing the multi port broadcasters (ADE-8202, 8204 and 8208), users can scale out the original DVI signal with audio to 81 remote monitor locations.

The single port transmitter (ADE-8201), coupled with the ADE-8002 long range DVI receiver, is able to transmit a DVI signal to a remote viewing station 70 meters away. Coupled with the short range receiver (ADE-8001) the single port transmitter transmits the DVI signal to a remote viewing station 15 meters away.

The LevelOne DVI-broadcaster series is the best solution at the most competitive pricing compared to other leading brands. Not only is it possible to use inexpensive Cat5 cabling without the loss of any resolution, but also provides for a more cost-competitive solution that has direct impact on lower installation, maintenance and management costs.

LevelOne ADE-8202. Type: AV transmitter, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Operating voltage: 5 V, Current: 2 A. Dimensions (WxDxH): 194 x 87 x 24 mm
