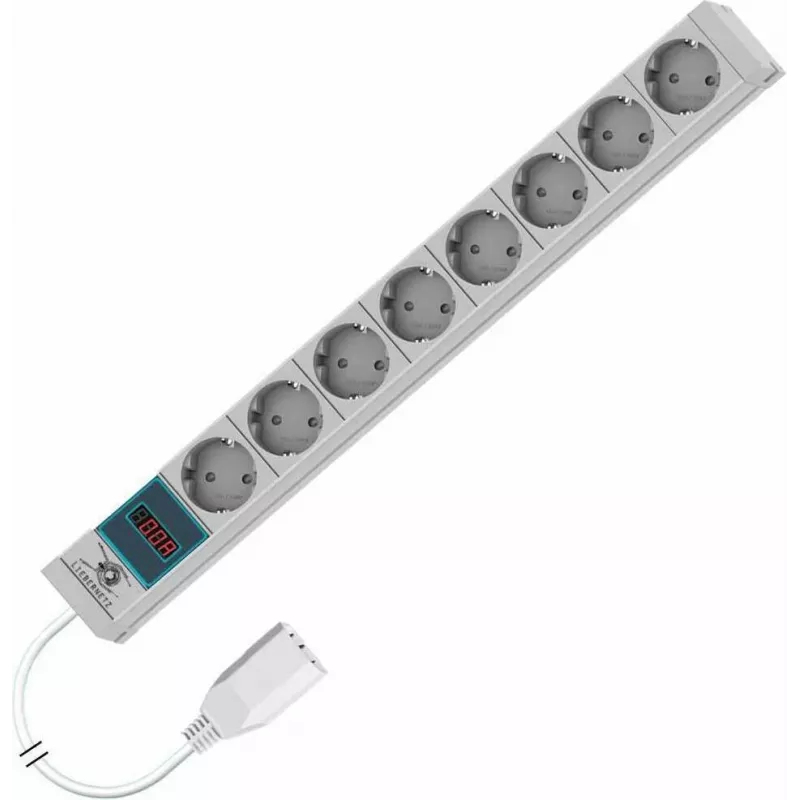

Liebernetz PDU de medición para rack 19" 1U, 8 tomas Schuko CEE 7/3, entrada C14, cable de 3m, gris claro (90LNSDL20SC083)

Managing power distribution in a 19-inch rack can be a challenge, especially when you need to monitor current draw to avoid overloads. This Liebernetz metered PDU solves that by providing eight Schuko CEE 7/3 outlets and a built-in ammeter, all in a compact 1U rackmount form factor.

Who is it for

System administrators, network engineers, and data center technicians who require reliable power distribution with current monitoring in server racks, network cabinets, or industrial enclosures.

Main features

• Eight Schuko CEE 7/3 outlets for connecting equipment with standard European plugs.
• Integrated ammeter displays real-time current consumption, helping prevent overloads.
• IEC C14 input connector with a 3-meter power cord for flexible placement.
• 1U 19-inch rackmount design with metal housing for durability.
• Light grey color blends with typical rack equipment.

Specifications

• Product type: Power Distribution Unit (PDU)
• Form factor: 19-inch rackmount, 1U
• Number of outlets: 8
• Outlet type: Schuko CEE 7/3
• Input connector: IEC 60320 C14 male
• Input cable length: 3 m
• Input voltage: 230 V AC
• Maximum current: 10 A
• Maximum power output: 2300 W
• Frequency: 50/60 Hz
• Colour: Light grey
• Housing material: Metal
• Mounting orientation: Horizontal
• Overload protection: Yes

Tips

Use the ammeter to monitor total current draw and ensure it stays below the 10 A maximum to prevent tripping circuit breakers. Mount the PDU at the rear of the rack for easy access to power cables.
