Lightwin Cable de conexión de fibra óptica dúplex de alta calidad, MM OM4, FC - LC

With a bandwidth of 4700 MHz·km at 850 nm, this OM4 multimode duplex patch cable delivers exceptional performance for high-speed data transmission in demanding network environments. The Lightwin LDP-50 FC-LC 1.0 OM4 is engineered to meet the rigorous requirements of modern data centers, LANs, SANs, and telecommunication networks, ensuring reliable connectivity with minimal signal loss.

Overview

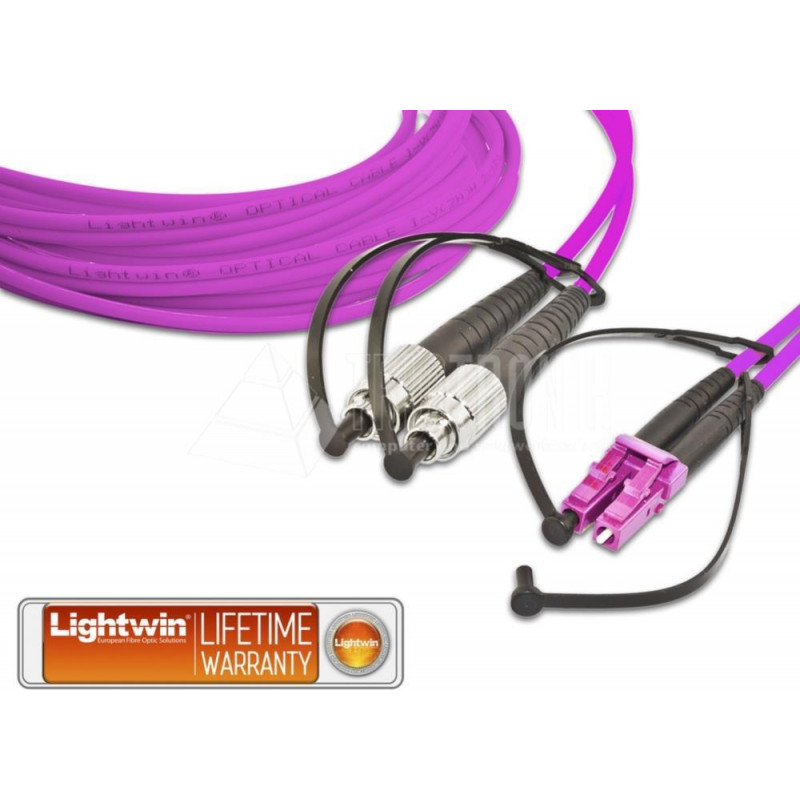

This 1-meter duplex fiber optic patch cable features an FC connector on one end and an LC connector on the other, both precision-polished to reduce insertion loss to ≤0.3 dB. The OM4 multimode fiber, with a 50/125 µm core/cladding diameter, is optimized for laser-based equipment and supports 10G, 40G, and 100G Ethernet over short distances. The aqua-colored LSZH jacket provides excellent fire safety characteristics, emitting low smoke and zero halogen in the event of combustion, making it suitable for enclosed spaces.

What stands out

• OM4 multimode fiber with 4700 MHz·km bandwidth at 850 nm for high-speed applications
• FC to LC connectors with low insertion loss (≤0.3 dB) and high return loss (≥30 dB)
• LSZH jacket in aqua color for safety and easy identification
• Duplex A-B polarity for standard cross-connect configurations
• RoHS and CE compliant for environmental and safety assurance

Technical details

• Cable type: Duplex fiber optic patch cable, multimode OM4
• Connector A: FC; Connector B: LC
• Core/cladding diameter: 50/125 µm
• Cable length: 1 meter
• Cable diameter: 3.0 mm
• Insertion loss (typical): ≤0.3 dB
• Return loss (typical): ≥30 dB
• Wavelengths: 850 nm and 1300 nm
• Bandwidth: 4700 MHz·km @850 nm, 500 MHz·km @1300 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, CE

Our verdict

A reliable and high-performance OM4 patch cable that balances cost and capability, ideal for short-reach high-speed links in enterprise and data center environments.
