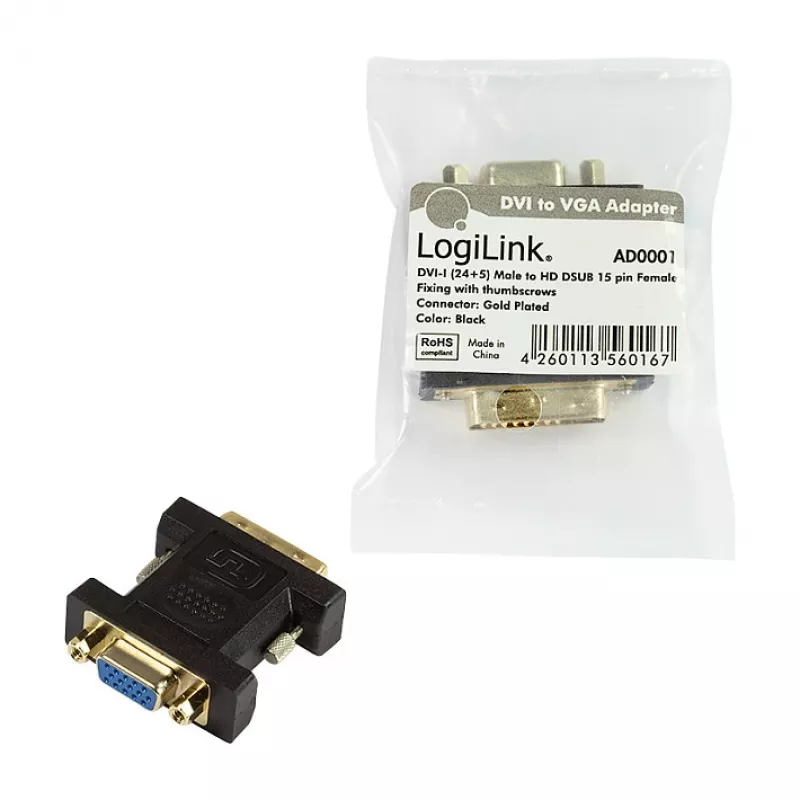

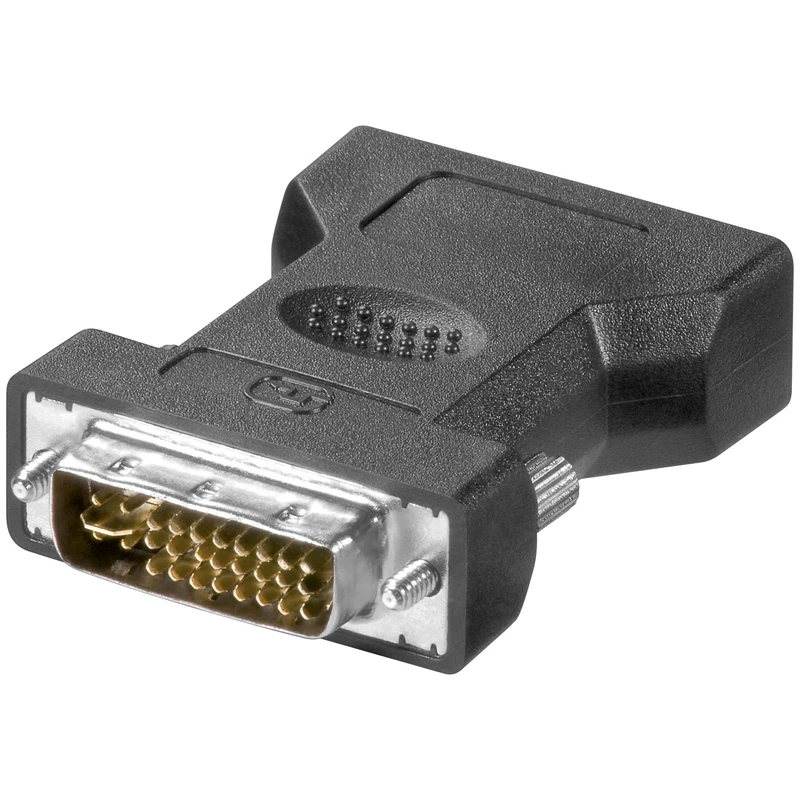

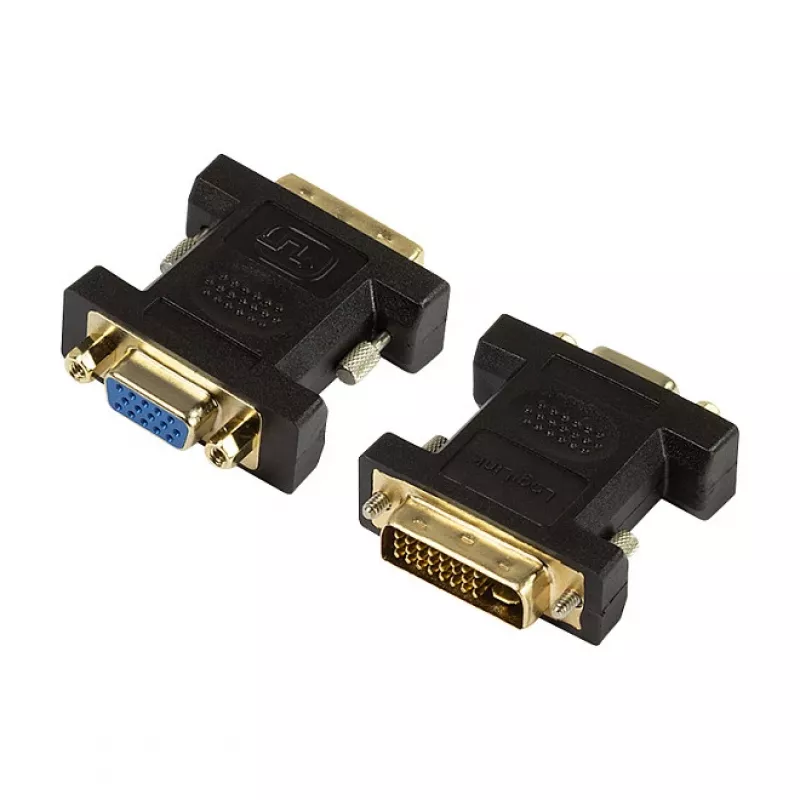

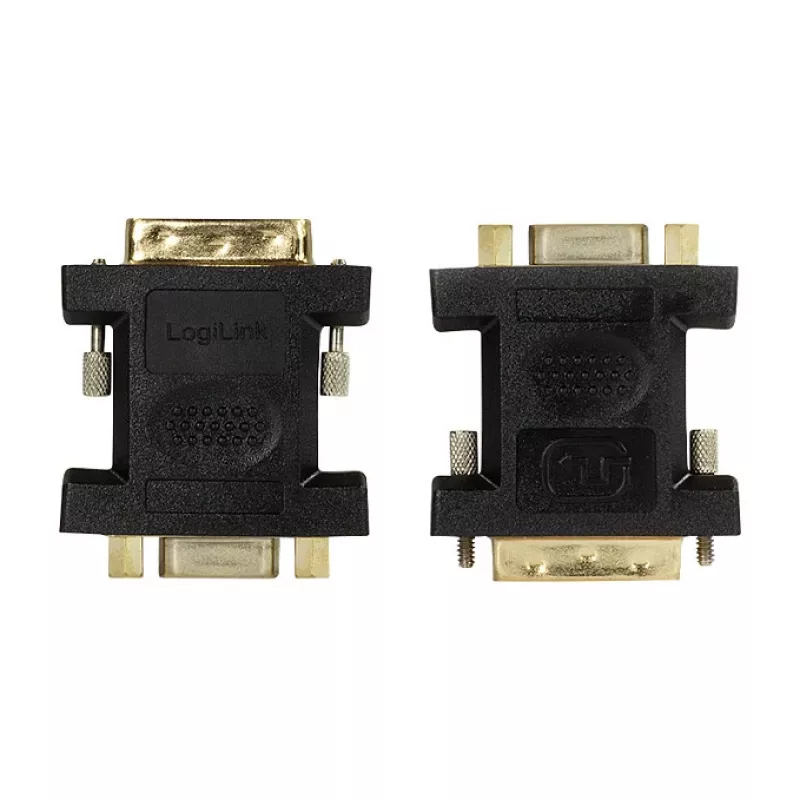

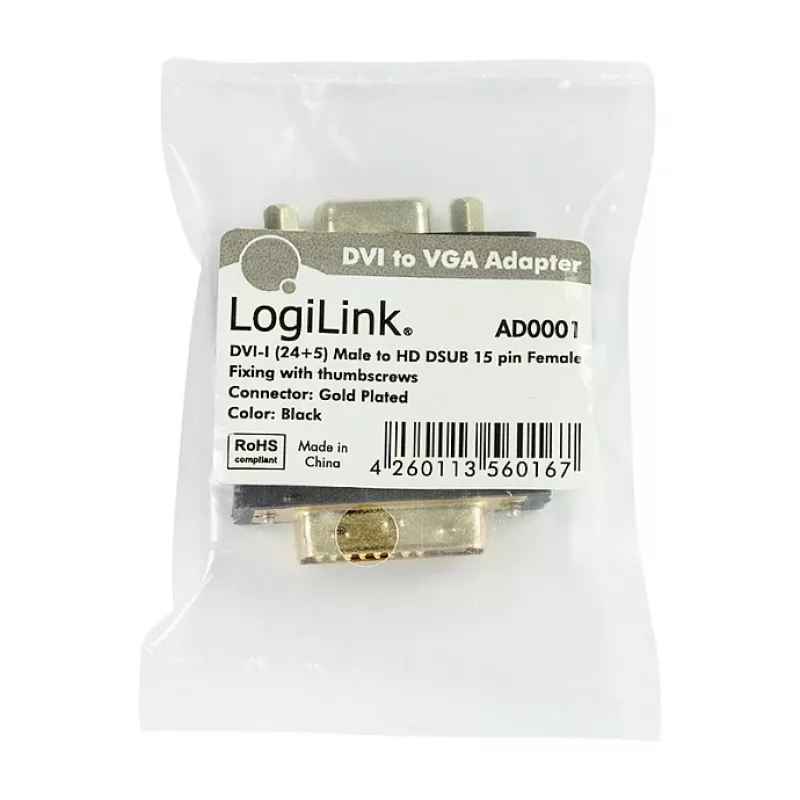

LogiLink AD0001 Adaptador DVI-I a VGA, conector macho DVI-I a conector hembra HD15, 1080p, Negro

Connect a DVI-I source to any VGA display with this LogiLink AD0001 adapter, delivering crisp Full HD 1080p video without extra software. The passive design taps power directly from the DVI port, so setup is truly plug-and-play.

Advantages

Built for everyday reliability, the adapter features a compact PVC housing that withstands frequent plugging and travel. Its DVI-I (24+5 pin) male connector carries the analog signals needed for VGA, while the HD15 female port accepts standard monitor cables. No drivers, no external power—just connect and go.

Suitable for

• Linking DVI-I equipped desktops, laptops, or graphics cards to VGA monitors and projectors
• Extending the life of legacy VGA displays in offices, classrooms, and home setups
• Mirroring or extending desktops for presentations and dual-screen productivity

Key specifications

• Connector 1: DVI-I (24+5 pin) male
• Connector 2: HD15 (VGA) female
• Maximum resolution: 1920x1080 @ 60Hz
• Product colour: Black
• Housing material: PVC / plastic
• Plug & Play: Yes
• Power source: Passive (bus-powered)
• Certification: RoHS compliant

Recommendations

This adapter works only with DVI-I or DVI-A sources that carry analog signals. If your device has DVI-D (digital only) output, use an active converter instead.
