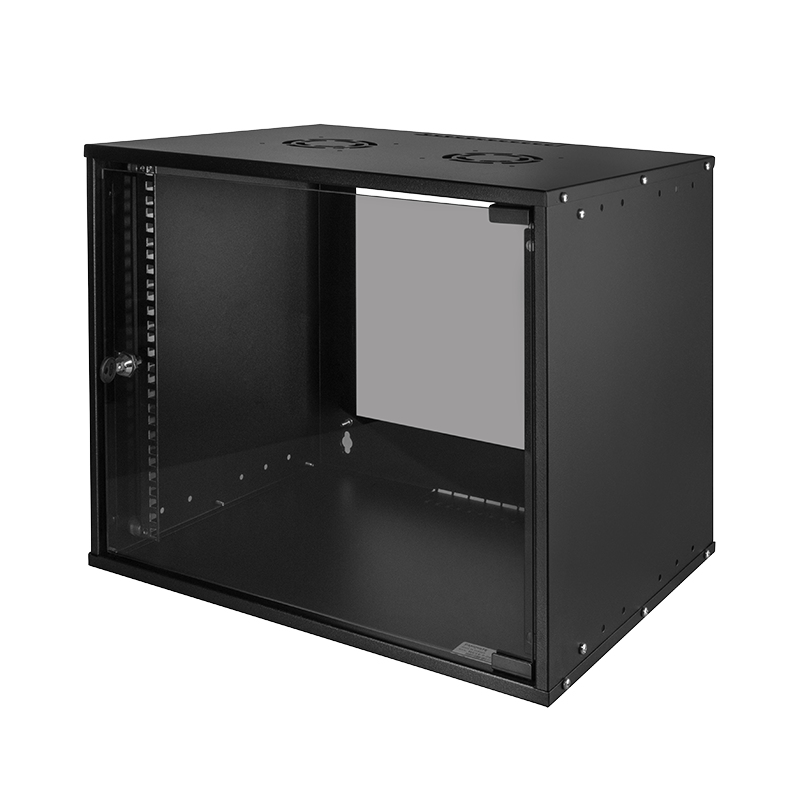

LogiLink Caja de pared ECO de 19" y 9U, 550 mm de profundidad, puerta de cristal, negro RAL 9005, premontada W09C55B

This 19-inch wall-mount cabinet provides 9U of rack space in a pre-assembled steel enclosure with a lockable glass door. Its 0.8 mm steel sheet construction supports up to 60 kg of equipment while maintaining a compact footprint for network and server installations.

Advantages

The cabinet arrives fully assembled, reducing installation time. Removable side panels and top/bottom cable entry points simplify cable management. The cylinder lock on the glass door secures equipment while allowing visual monitoring of indicator lights.

Suitable for

• Small office network switches and patch panels
• Security system DVRs and NVRs
• Edge computing and IoT gateways
• AV equipment in classrooms or meeting rooms

Key specifications

• Rack standard: 19 inch
• Rack units: 9U
• External dimensions (W x D x H): 500 x 550 x 470 mm
• Material: 0.8 mm steel sheet
• Colour: Black (RAL 9005)

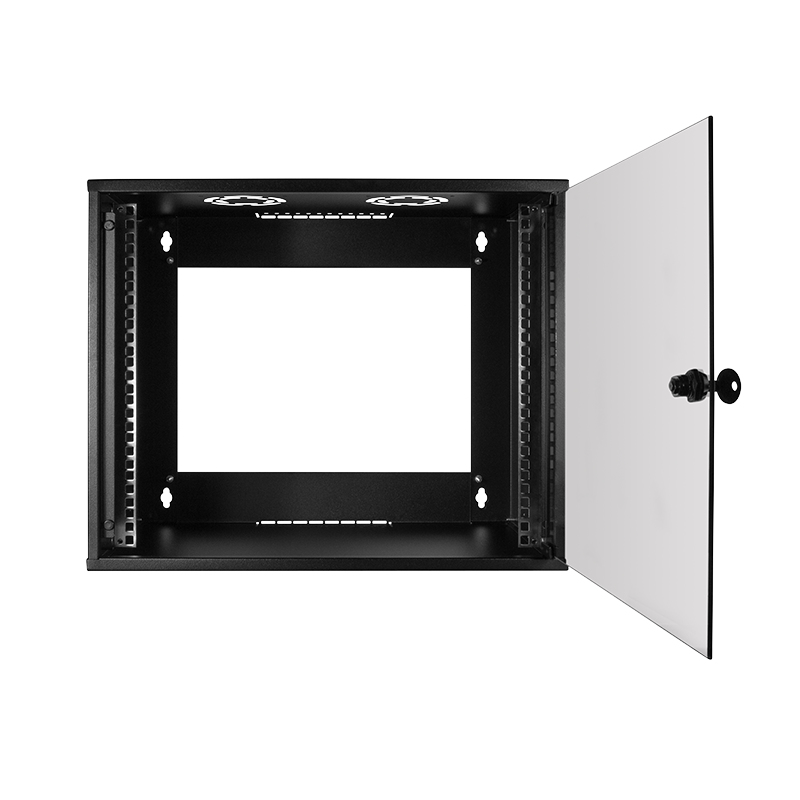

• Door: Single section glass door with cylinder lock
• Max load capacity: 60 kg

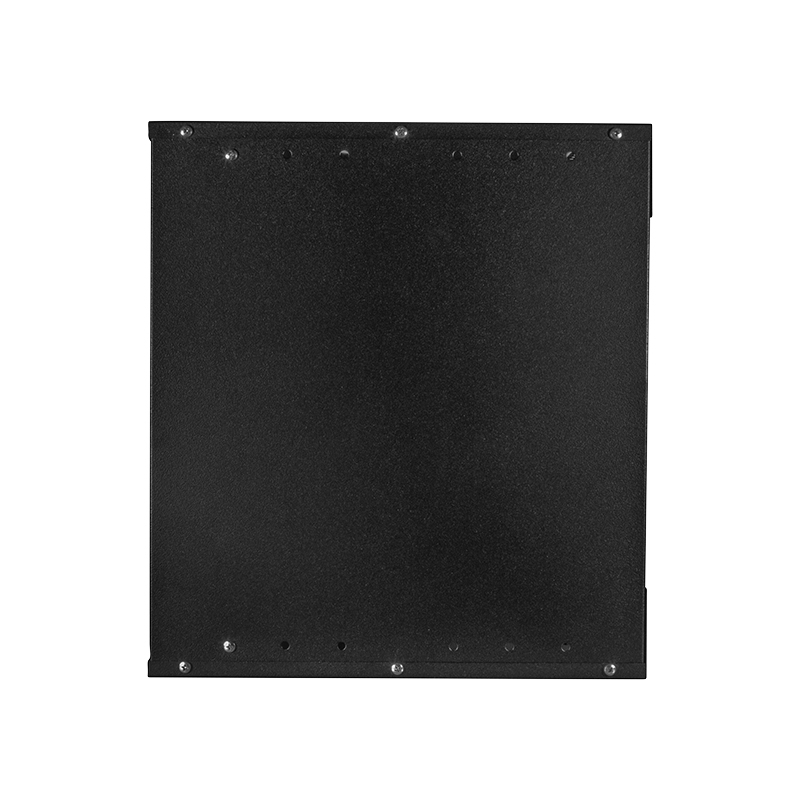

• Side panels: Removable

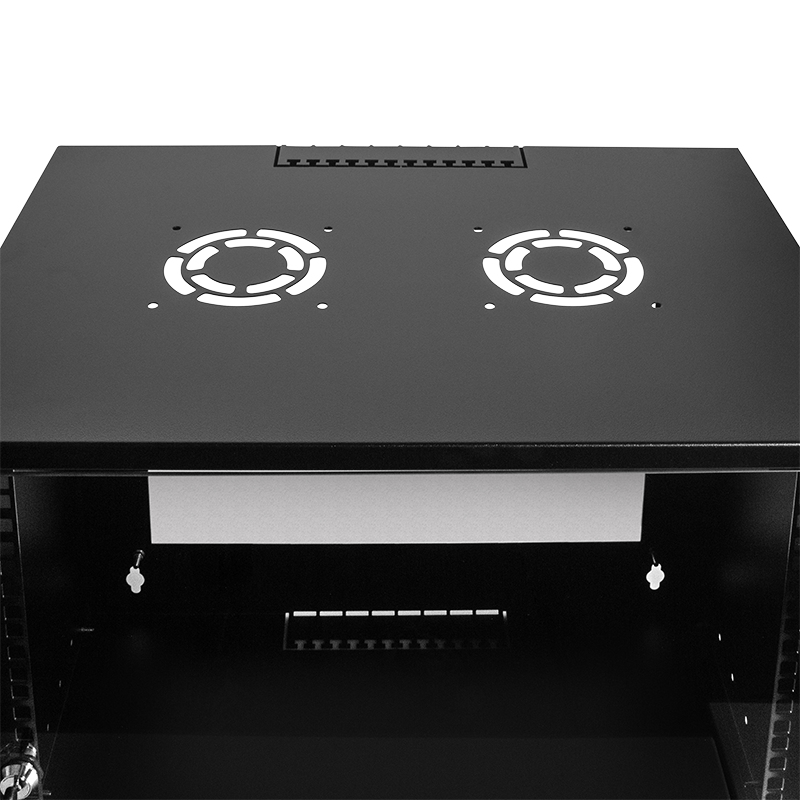

• Cable entry: Top and bottom

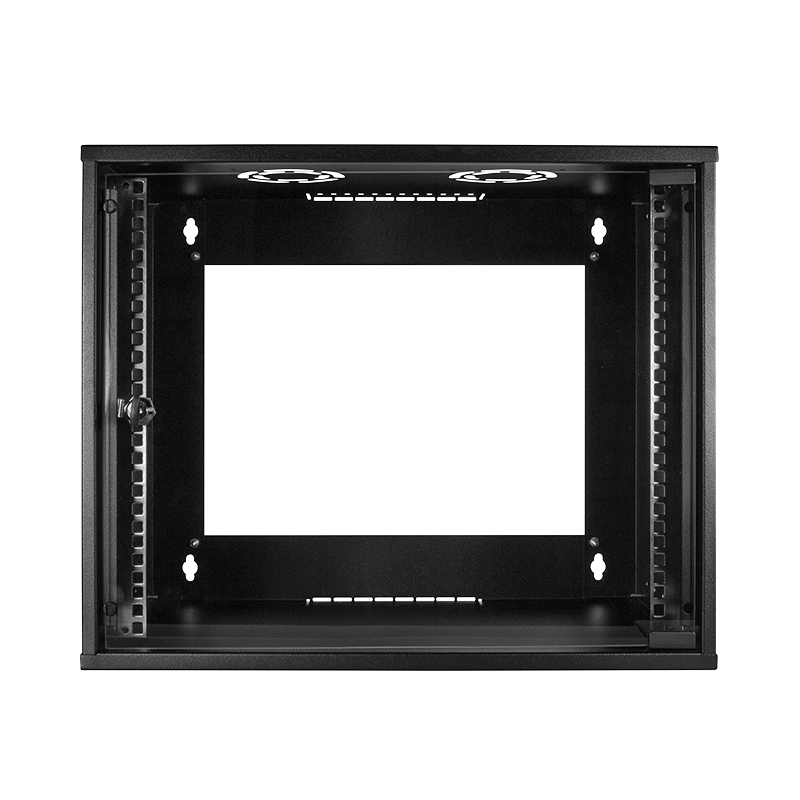

• Mounting rails: Adjustable 19-inch rails
• Included accessories: 2 keys, mounting material

Recommendations

Verify wall construction and use appropriate anchors for the total installed weight. Leave clearance above and below for cable access and airflow.
