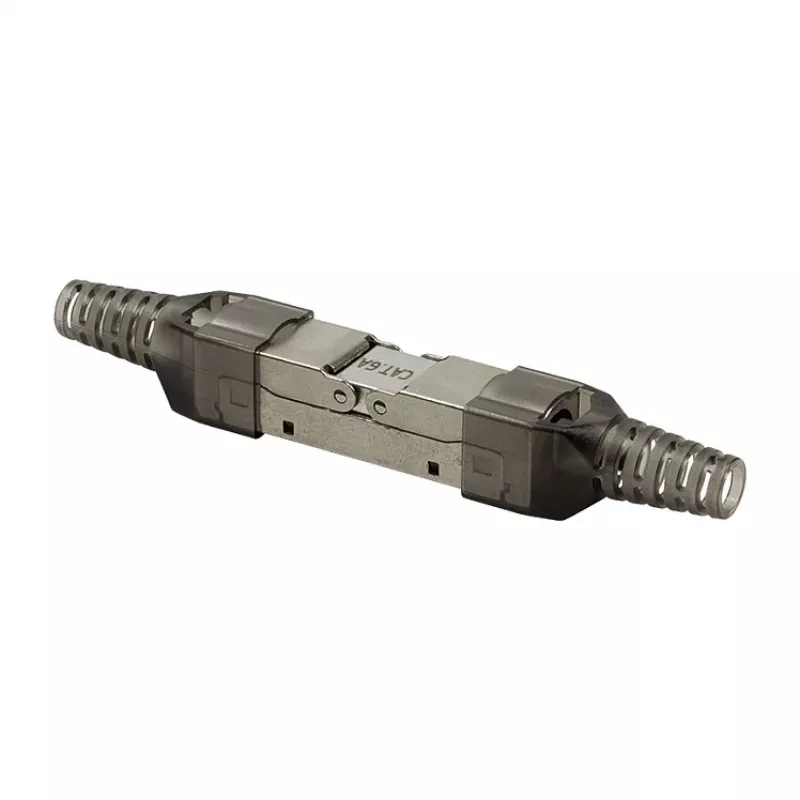

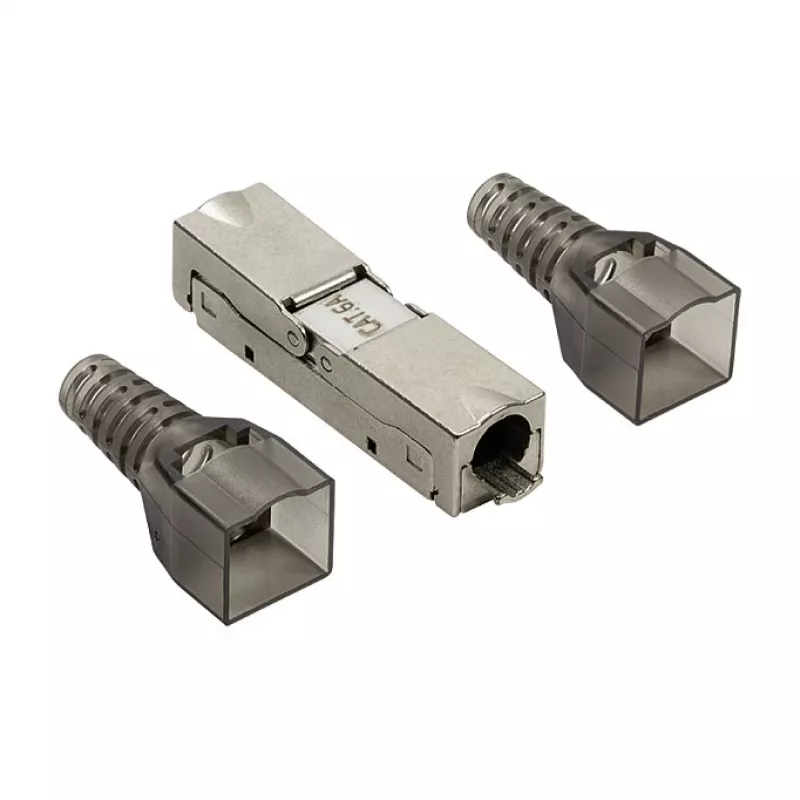

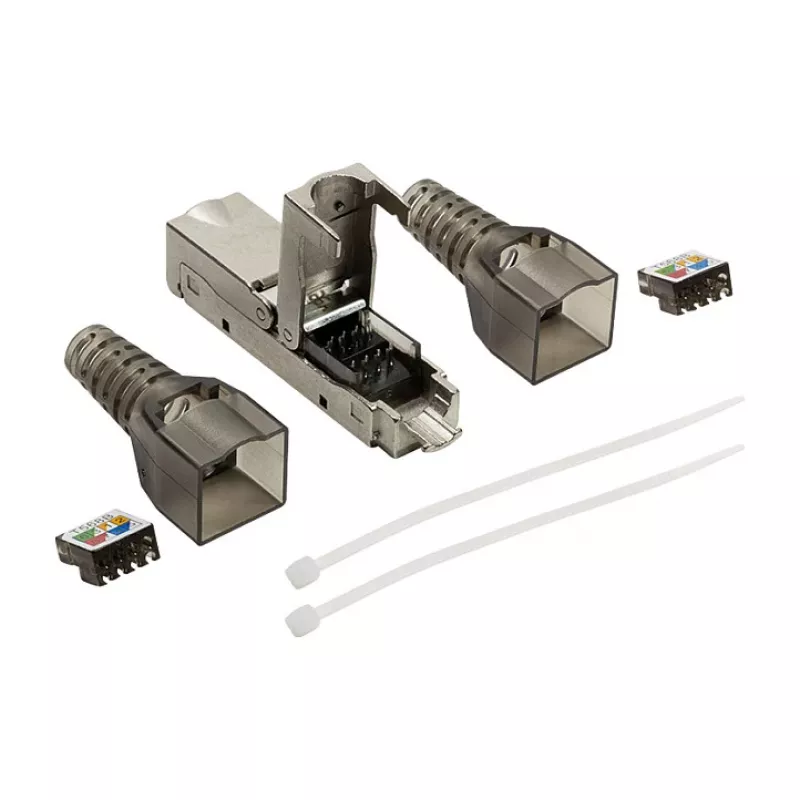

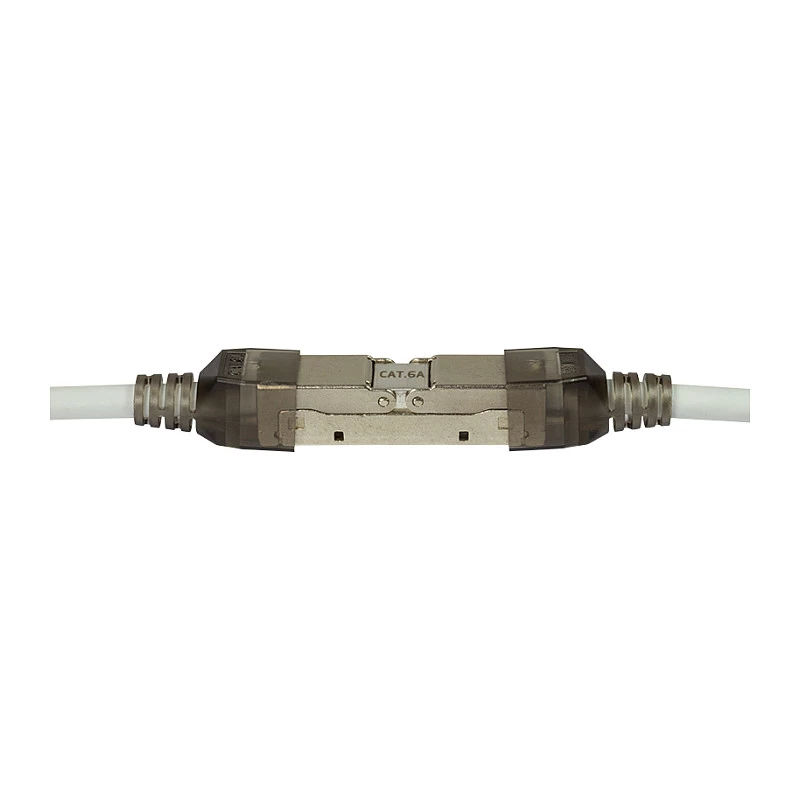

LogiLink conector RJ45 de campo Cat.6A STP 10G, IDC sin herramientas, zamak, AWG 22-26, plateado

Network technicians and installers working in data centers, industrial environments, or office buildings often face the challenge of terminating shielded Cat.6A cables on-site without specialized crimping tools. The LogiLink MP0046 field-terminable RJ45 connector solves this problem with a tool-free IDC mechanism that allows a reliable 10 Gigabit Ethernet connection to be assembled in about 60 seconds. Its zinc die-cast housing and gold-plated contacts ensure durability and stable performance for high-speed networks.

Key specifications

• Connector type: RJ45 plug, 8P8C, shielded (STP)
• Performance: Cat.6A, up to 10GBASE-T, 500 MHz bandwidth

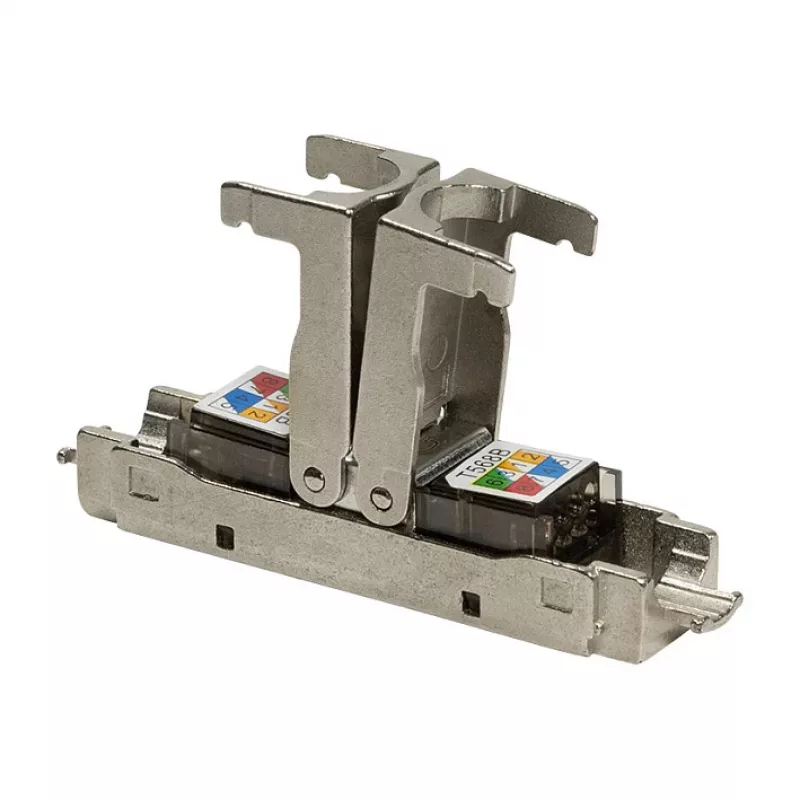

• Termination: tool-free IDC, reusable up to 5 cycles
• Wire compatibility: solid and stranded, AWG 22-26
• Cable diameter: 6.0 - 9.0 mm
• Housing: zinc die-cast, silver metallic
• Contact plating: gold, 50µ"
• Standards: TIA/EIA 568-C.2, ISO/IEC 11801, EN 50173
• PoE support: IEEE 802.3af/at/bt (up to 4PPoE)
• Operating temperature: -10°C to 60°C

Why choose it

This connector eliminates the need for crimping tools, reducing installation time and potential errors. Its robust metal housing protects against EMI and mechanical stress, making it suitable for demanding environments. The ability to reuse the connector up to five times adds flexibility for moves, adds, and changes in network infrastructure.

Ideal use cases

• Field termination of Cat.6A shielded cables in data centers
• Industrial network installations where tool access is limited
• Office cabling upgrades to 10G Ethernet
• Quick repairs or temporary links requiring reliable PoE delivery

Good to know

The connector supports Power over Ethernet up to 4PPoE, allowing it to power devices like IP cameras or wireless access points directly through the cable. It is compatible with both solid and stranded conductors, offering versatility across cable types. Always verify cable diameter within 6.0–9.0 mm for optimal strain relief and performance.
