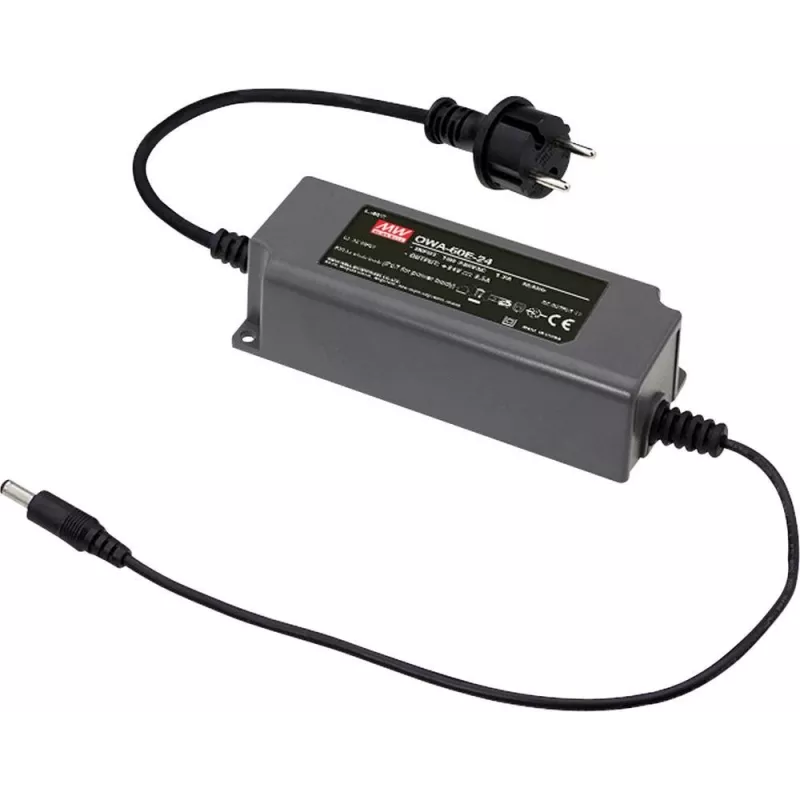

MEAN WELL OWA-60E-30 Fuente de alimentación driver LED de tensión constante 60W 30V DC IP67, entrada universal 90-305V AC, negra

The OWA-60E-30 stands apart from typical power supplies by combining a fully plastic, IP67-rated enclosure with universal AC input up to 305 V and a constant-voltage 30 V DC output—all in a fanless design that works from -40 °C to +70 °C. It delivers 60 W for LED lighting and industrial DC applications where moisture, dust, and wide temperature swings are daily realities.

Highlights

• 60 W constant-voltage output at 30 V DC, 2 A
• Ultra-wide input: 90–305 V AC or 127–431 V DC
• IP67 waterproof and dustproof plastic housing
• Fanless free-air convection cooling—silent operation
• Full protection: short circuit, overload, over voltage, over temperature
• Class II double insulation, no earth ground required
• Global safety approvals: UL, cUL, TUV, CE, CB, FCC

In daily use

This driver is built for outdoor LED fixtures, signage, and industrial controls that face rain, dust, or condensation. The wide input range handles unstable mains or 277 V industrial lines without derating. With 90% efficiency and plastic housing, heat stays low and the unit remains safe to touch. Setup is quick: wire the input and output cables, and the supply starts within 500 ms at 230 V AC. No fan means no noise and no moving parts to fail.

Full specifications

• Output power: 60 W
• Output voltage: 30 V DC
• Output current: 2 A
• Input voltage: 90–305 V AC / 127–431 V DC
• Efficiency: 90%
• IP rating: IP67
• Operating mode: Constant voltage (CV)
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling: Fanless, free air convection
• Operating temperature: -40 to +70 °C
• Safety class: Class II (no FG)
• Power factor correction: No
• Enclosure material: Plastic
• Input connector: Cable
• Output connector: Cable
• Harmonic current: EN61000-3-2 Class C (>60% load)
• Setup time: 500 ms @ 230 V AC, 1000 ms @ 115 V AC at full load
• Certifications: UL, cUL, TUV, CE, CB, FCC

Final note

For reliable outdoor and industrial DC power with a compact, waterproof footprint, the OWA-60E-30 is a proven choice that simplifies installation and lasts for years.
