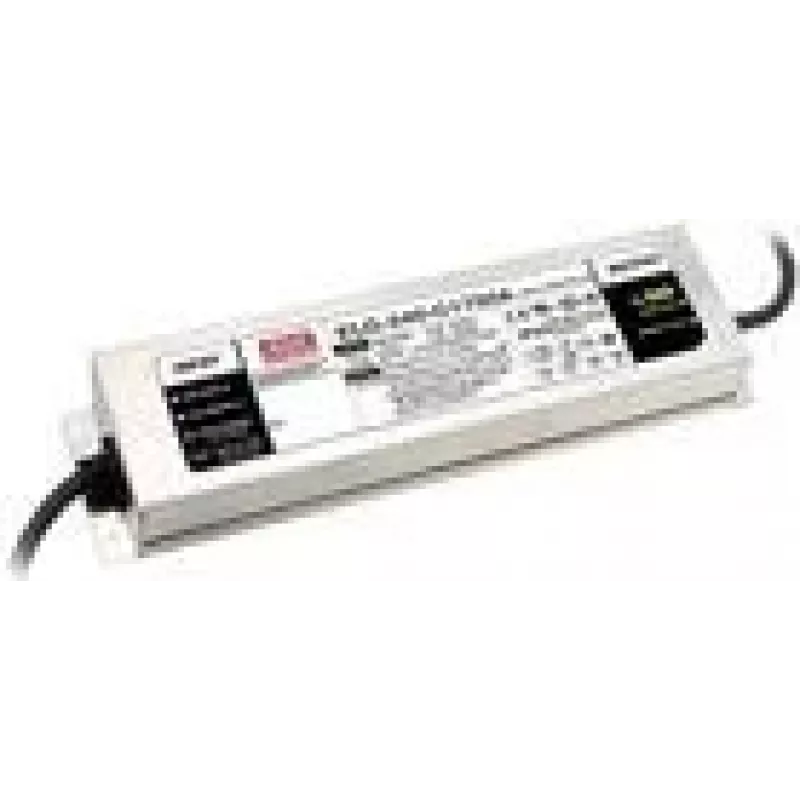

Driver LED MEAN WELL ELG-240-48-3Y 240W IP20 100-305V 5A 48V

The MEAN WELL ELG-240-48-3Y is a single-output LED driver delivering up to 240 W with a fixed constant-current output of 5 A at 48 VDC. Designed for indoor lighting installations, it accepts an AC input voltage range of 100–305 VAC and includes power factor correction (PFC). The unit has an IP20 enclosure and three-wire AC input, with a cable-type DC output for connection to LED loads. Compact dimensions (71 mm × 244 mm × 37.5 mm) facilitate integration into fixtures and control cabinets.

Advantages

The ELG-240-48-3Y offers a stable 48 VDC output with a fixed 5 A current, supporting constant-voltage plus constant-current (CV+CC) operation suitable for many LED applications. Wide input range (100–305 VAC) allows use across different mains supplies while built-in PFC improves power quality. Its compact form factor and cable output simplify installation in indoor lighting systems.

Suitable for

• Indoor LED luminaires and panels
• Commercial and retail lighting
• Architectural accent lighting
• Retrofit LED installations requiring 48 VDC supply

Key specifications

• Brand: mean well
• Model: ELG-240-48-3Y
• Output: 48 VDC, 5 A (fixed CC output)
• Output power: 240 W
• Input voltage: 100–305 VAC
• Input: 3-wire AC
• PFC: Yes
• Ingress protection: IP20 (indoor use)
• Dimensions (W×D×H): 71 × 244 × 37.5 mm
• Output connection: cable

How to use

Mount the ELG-240-48-3Y in a dry indoor location and secure it according to fixture or cabinet requirements. Connect the three-wire AC supply within the specified 100–305 VAC range to the input terminals, observe correct polarity and grounding. Connect the DC cable output to the LED array rated for 48 VDC and ensure the load current does not exceed 5 A. Power on and verify stable output voltage and proper LED operation.

Recommendations

Install the driver in a well-ventilated indoor environment away from moisture. Ensure the LED load matches the 48 VDC / 5 A output rating and observe local electrical codes when wiring the three-wire AC input and protective earth connection.
