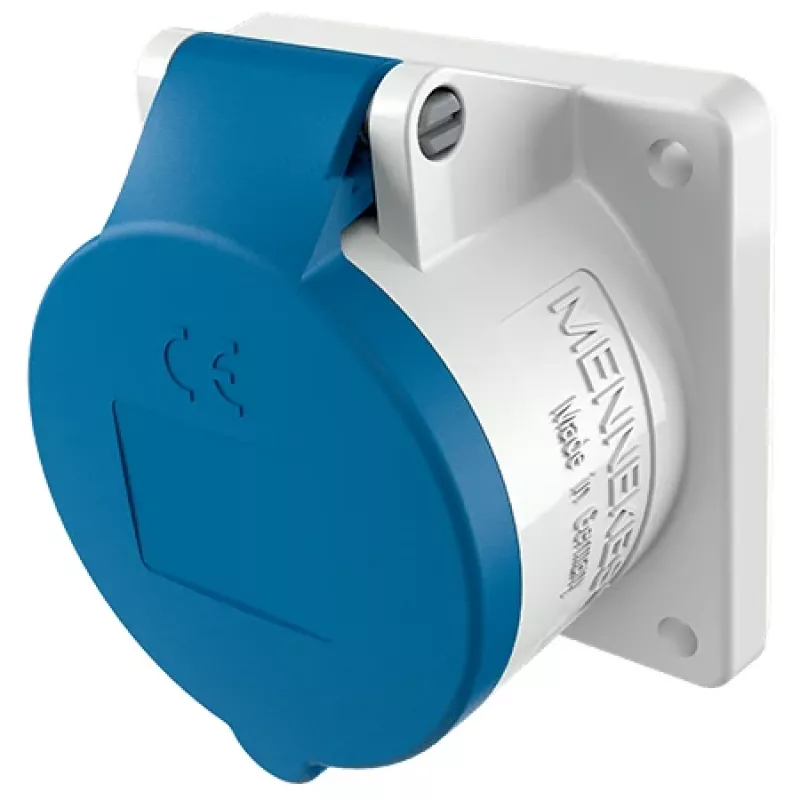

MENNEKES 1787 TwinCONTACT Toma de corriente de superficie 32A 3P 6H 230V IP44

The MENNEKES 1787 is a 32 A, 3-pole (2P+E) surface-mounted socket with a 6h earth contact position, rated for 200–250 V and protected to IP44. Its TwinCONTACT screwless terminal technology delivers fast, vibration-proof wiring without torque checks.

Overview

Engineered for demanding industrial and commercial power distribution, this straight socket combines a rugged polyamide housing (light grey, RAL 7035) with nickel-plated brass contacts for reliable conductivity. The 50/60 Hz rating and -25 °C to +40 °C operating range suit both indoor and sheltered outdoor installations.

What stands out

• TwinCONTACT screwless terminals for quick, maintenance-free connections
• IP44 protection against splashing water and solid objects over 1 mm
• Flange dimensions 75 x 85 mm with 60 x 70 mm mounting hole spacing
• Complies with IEC 60309-1 and IEC 60309-2

Technical details

• Current rating: 32 A
• Voltage range: 200–250 V
• Poles: 3-pole (2P+E)
• Earth contact position: 6h
• Frequency: 50/60 Hz
• Connection technology: TwinCONTACT (screwless terminals)
• Mounting type: surface-mounted / panel-mounted, straight
• Housing material: polyamide (PA6)
• Colour: light grey (RAL 7035)
• Contact material: nickel-plated brass
• Operating temperature: -25 °C to +40 °C
• Flange dimensions: 75 x 85 mm
• Mounting hole spacing: 60 x 70 mm

Our verdict

A dependable, time-saving power socket for fixed installations where fast wiring and splash protection matter.
