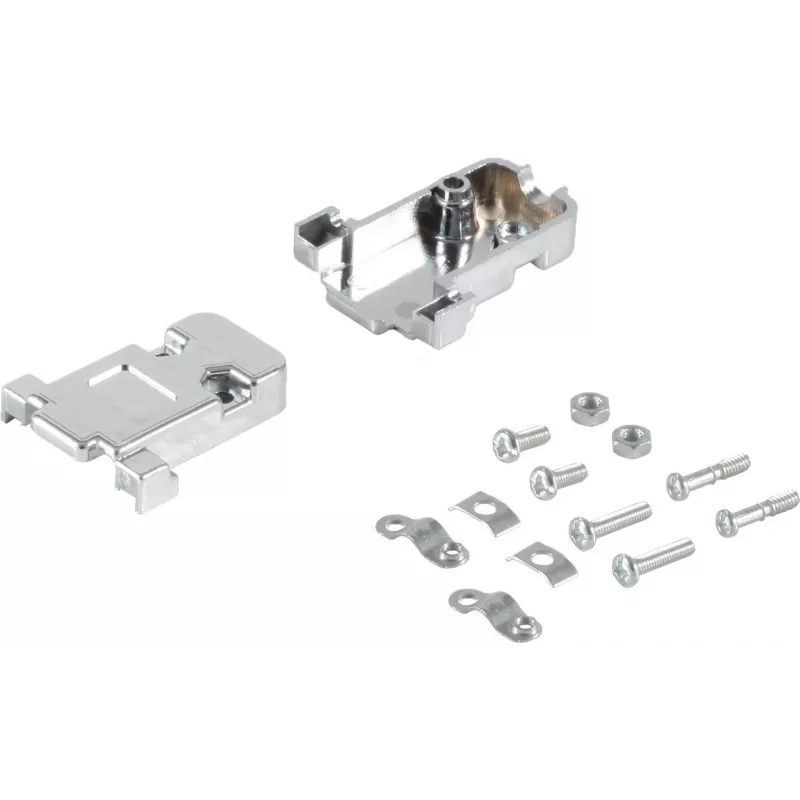

Carcasa de conector multipolar capucha ShiverPeaks BS79109-M

The ShiverPeaks BS79109-M multipolar connector housing Hood is a single-piece electrical enclosure designed to protect and organize multi-contact connections. Constructed from durable materials, this housing provides mechanical protection and helps maintain secure electrical contacts in industrial and technical environments. It is supplied individually and is suitable for use where a compact, shielded housing is required to support a BS79109-M compatible connector insert.

Advantages

This connector housing offers robust mechanical durability and reliable retention for multipolar contacts, reducing the risk of accidental disconnection. Its design facilitates neat cable routing and provides basic protection against dust and mechanical impact. The individual supply format allows flexible procurement and replacement of single housings without the need to purchase full sets.

Suitable for

• Industrial control cabinets and machinery
• Distribution panels and junction boxes
• Instrumentation and measurement equipment
• Maintenance and repair tasks requiring connector replacement

Key specifications

• Form factor: multipolar connector housing for hood-style mounting
• Material: durable polymer or composite enclosure suitable for mechanical protection
• Mounting: panel or cable-side hood configuration compatible with matching connector insert
• Contact arrangement: multipin configuration (compatible with corresponding multipolar inserts)
• Supply: sold as single unit

How to use

Install the ShiverPeaks multipolar connector housing by aligning the matching connector insert and securing it according to the mating system’s retention method. Route wires through the housing and assemble contacts into the connector insert following the connector manufacturer’s assembly instructions. After insertion, close the hood and fasten any latches or screws to ensure a secure mechanical and electrical connection.

Recommendations

Verify compatibility between the housing and the chosen connector insert before installation. Use appropriate cable strain relief and ensure contact termination is performed with the correct tooling to maintain reliable electrical performance and mechanical stability.
