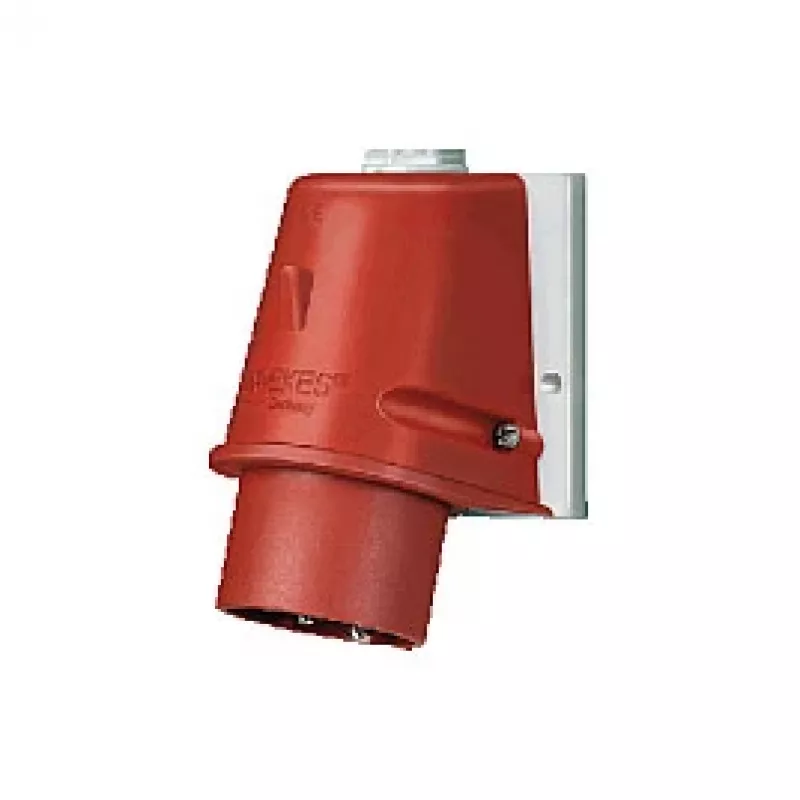

MENNEKES 801 Conector macho de pared CEE 16A 5 polos 6h 400V IP44

Industrial and commercial environments need reliable power connections that can withstand dust, moisture, and frequent use. The MENNEKES 801 wall-mounted plug provides a robust 16 A, 5-pole, 6h, 400 V connection point for three-phase equipment, ensuring safe and dependable power distribution in demanding settings.

Who is it for

This wall-mounted plug is ideal for electricians, facility managers, and machine operators who require a fixed power outlet for industrial machinery, construction site distribution boards, or commercial appliances. It suits installations where a durable, surface-mounted CEE socket is needed.

Main features

• Rated current: 16 A
• Number of poles: 5-pole (3P+N+PE)
• Rated voltage: 400 V (380-415 V AC)
• Earth contact position: 6h
• Ingress protection: IP44
• Housing material: Thermoplastic (Polyamide PA6)
• Connection type: Screw terminals
• Mounting type: Surface-mounted (Wall-mounted)
• Colour: Red housing with grey base
• Standard: IEC 60309-1, IEC 60309-2

Specifications

• Frequency: 50/60 Hz
• Cable entry: Rear
• Terminal capacity: 1.5 - 4 mm²
• Operating temperature: -25°C to +40°C
• Flammability rating: UL94 V2
• Contact material: Brass, nickel-plated
• Application: Industrial, Commercial, Construction Sites

Tips

Ensure the mounting surface is flat and stable. Use appropriate cable glands to maintain the IP44 protection. For outdoor installations, consider additional weather shielding if exposed to direct rain.
