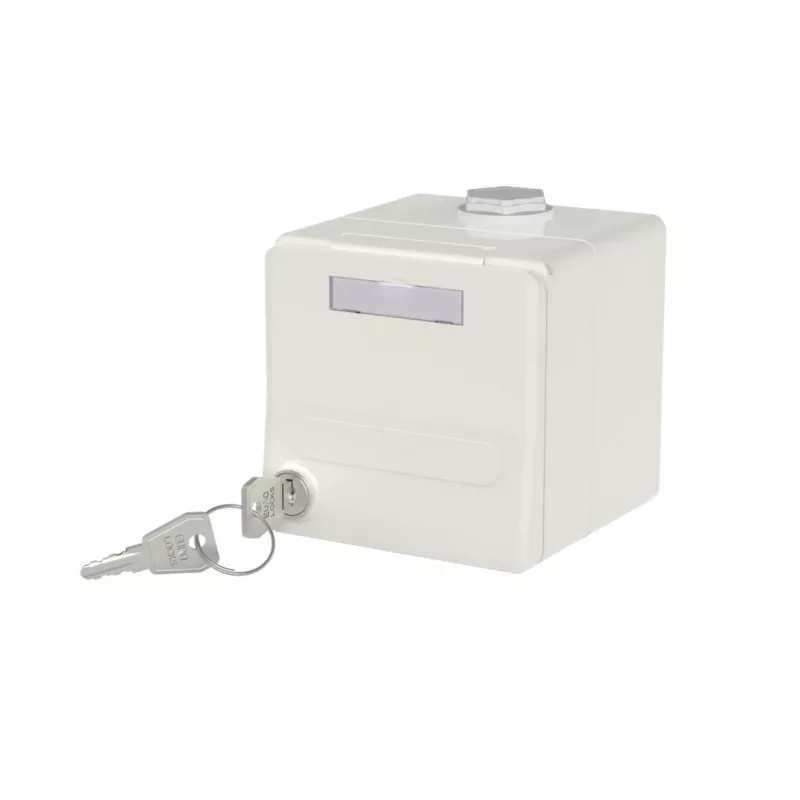

METZ CONNECT 1309470002KI Caja de superficie para módulo IP44 con tapa abatible y cerradura, 2 insertos de módulo, gris claro (RAL 7035)

The METZ CONNECT 1309470002KI is a robust IP44 surface mount module housing designed for industrial and protected outdoor data network infrastructure. Featuring a hinged cover with lock and two module slots, it accommodates METZ CONNECT E-DAT Industry modules for secure and reliable connections.

Advantages

Durable polycarbonate construction with UV resistance and IK08 impact rating ensures long-lasting performance in harsh environments. The lockable hinged cover provides security against unauthorized access, while pre-punched cable entries simplify installation.

Suitable for

• Industrial environments requiring protected data connections
• Outdoor areas with IP44 protection needs
• Data network infrastructure installations

Key specifications

• Protection Class: IP44
• Mounting Type: Surface Mount
• Number of Module Slots: 2
• Lid Type: Hinged Cover with Lock
• Housing Material: Polycarbonate (PC)
• Cover Material: Polycarbonate (PC)
• Color: Light Grey (RAL 7035)
• Cable Entry: 2x M20 cable glands (pre-punched)
• Operating Temperature: -20 °C to +70 °C
• Flammability Rating: UL94 V-0
• Impact Resistance: IK08
• Standards Compliance: DIN EN 60670-1, DIN EN 50173-1, ISO/IEC 11801

Recommendations

Ideal for use with METZ CONNECT E-DAT Industry modules to create secure, weather-resistant data outlets in industrial settings.
