METZ CONNECT Cable de red Cat6a M12 a RJ45 1 m verde S/FTP libre de halógenos

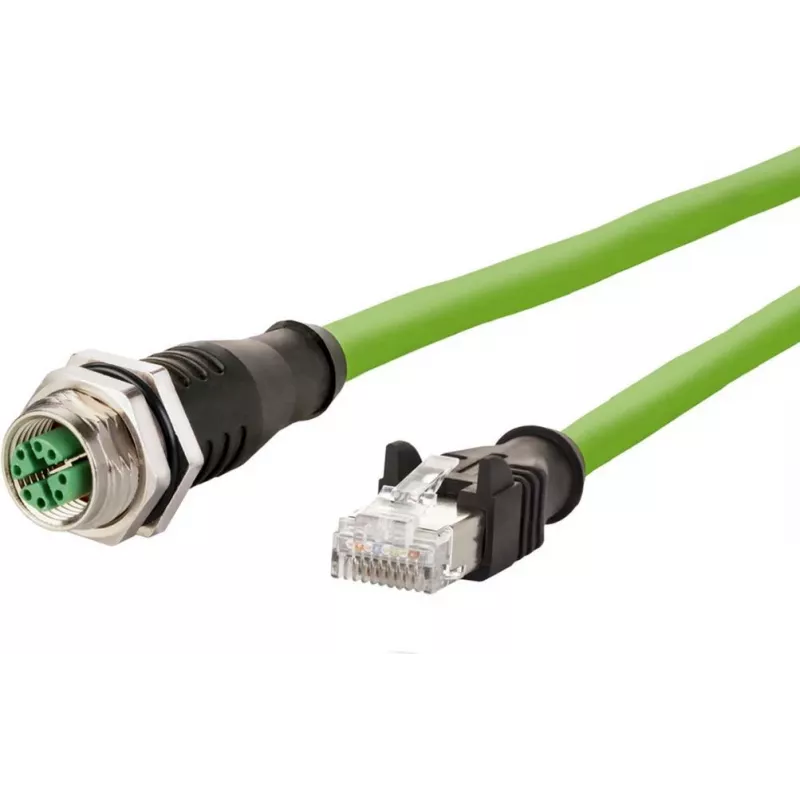

The METZ CONNECT 142M2X25010 is a high-performance industrial Ethernet cable designed for reliable data transmission in demanding environments. This Cat6a cable features an M12 (R-coded) 8-pin male connector to an RJ45 male connector, providing a robust connection for automation and networking applications.

Advantages

With S/FTP shielding (screened foiled twisted pair), this cable offers excellent protection against electromagnetic interference, ensuring stable signal integrity. The halogen-free jacket material enhances safety in enclosed spaces, while the stranded conductor construction provides flexibility for easy routing.

Suitable for

• Industrial Ethernet networks requiring Cat6a performance
• Automation systems, robotics, and machine vision
• Connecting M12 devices to standard RJ45 ports
• Applications demanding high data rates up to 10 Gigabit Ethernet

Key specifications

• Cable Category: Cat6a
• Shielding: S/FTP
• Connector 1: M12 (R-coded), 8-pin, Male
• Connector 2: RJ45, Male
• Length: 1.0 m
• Cable Diameter: 6.4 mm
• Jacket Material: Halogen-free
• Conductor: Stranded
• Color: Green
• Data Transfer Rate: Up to 10 Gbps
• Frequency Bandwidth: Up to 500 MHz
• Impedance: 100 Ohm
• Wiring Standard: TIA/EIA-568B

Recommendations

This cable is ideal for industrial applications where durability and high-speed data transfer are critical. Ensure compatibility with your devices by verifying M12 R-coded and RJ45 connectors.
