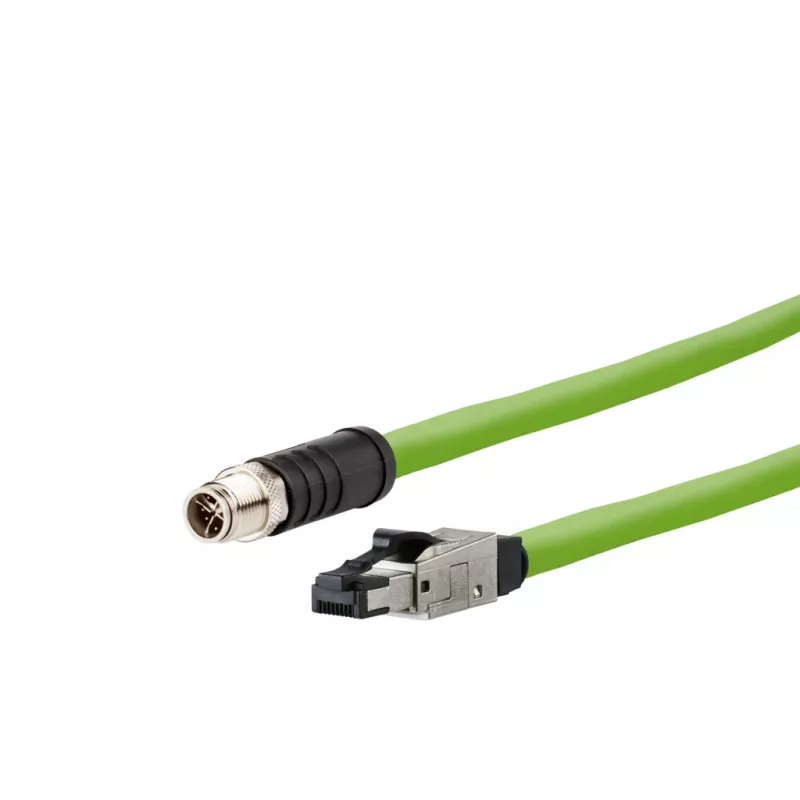

METZ CONNECT Cable Industrial Ethernet M12 codificado X CAT 6a SF/UTP 10 m verde cubierta PUR apto para cadenas portacables (142M6X18100)

The METZ CONNECT 142M6X18100 is a high-performance industrial Ethernet patch cable designed for demanding environments. With M12 X-coded connectors on both ends, it ensures reliable data transmission in automation and control systems. The CAT 6a performance supports 10 Gbit/s data rates and 500 MHz bandwidth, making it ideal for high-speed industrial networks.

Advantages

This cable offers exceptional durability and resistance to harsh conditions. The PUR jacket provides protection against acids, ozone, and UV radiation, while the drag chain compatibility ensures flexibility in moving applications. The SF/UTP shielding minimizes electromagnetic interference, guaranteeing stable signal integrity.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT, etc.)
• Automation and control systems
• Robotics and drag chain applications
• Outdoor and harsh environment installations

Key specifications

• Cable type: Patch cable
• Connector type: M12 X-coded (both ends)
• Performance category: CAT 6a

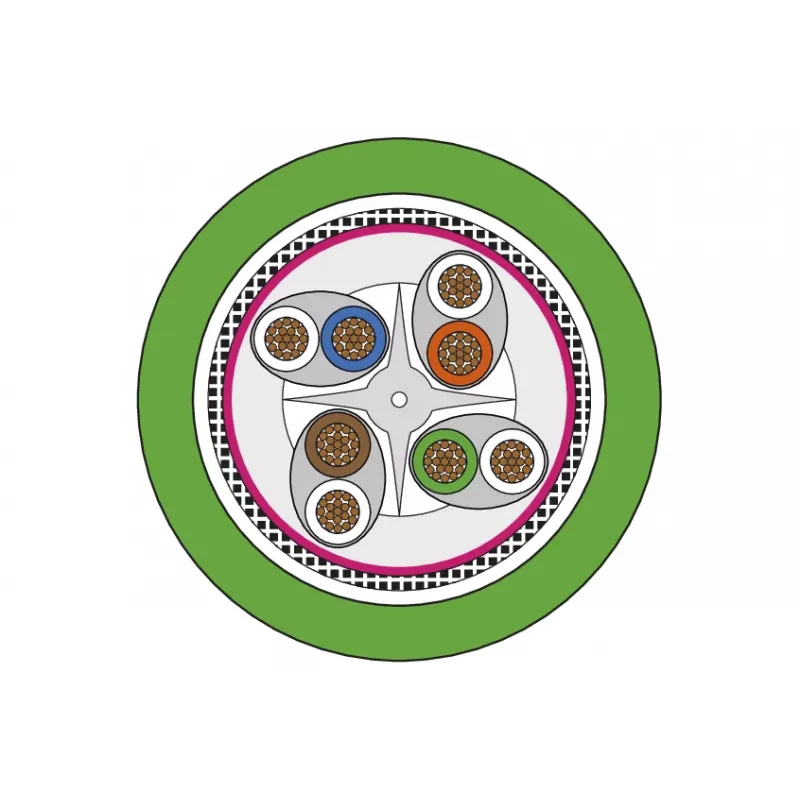

• Shielding: SF/UTP (S-FTP)
• Length: 10 m
• Color: Green
• Jacket material: PUR (Polyurethane)
• Data transfer rate: 10 Gbit/s
• Bandwidth: 500 MHz
• Resistance: Acid, ozone, UV resistant
• Flexibility: Drag chain compatible
• Number of pairs: 4

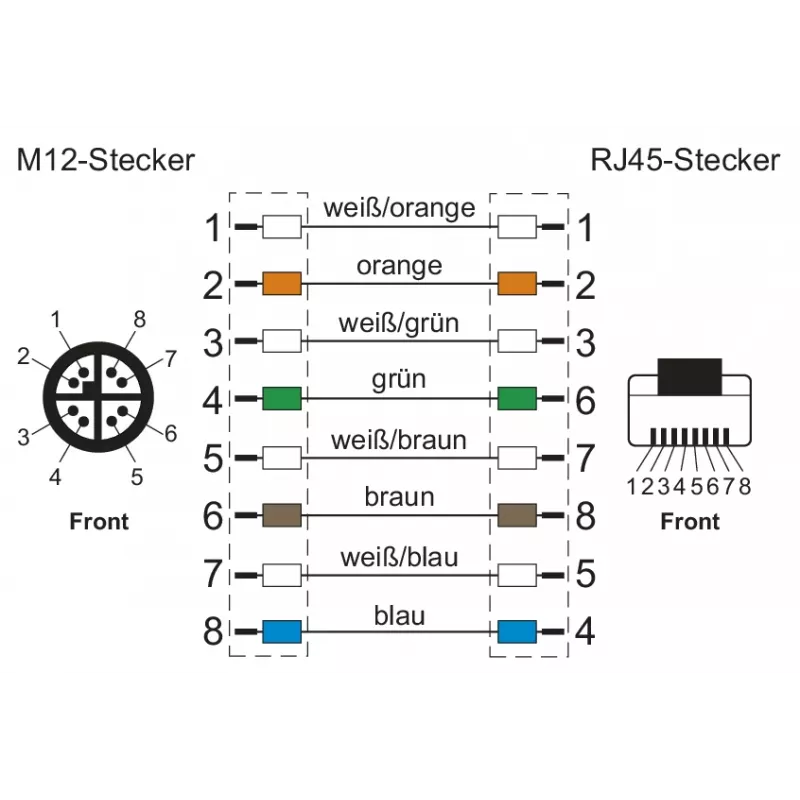

• Wiring standard: TIA/EIA-568B
• Standard compliance: ISO/IEC 11801, EN 50173, IEC 61076-2-109

Recommendations

For optimal performance in industrial environments, pair this cable with compatible M12 X-coded connectors and devices. Ensure proper installation to maintain shielding effectiveness.
