METZ CONNECT Panel de Parcheo Splice 6xLC-D OS2 1504597406-F

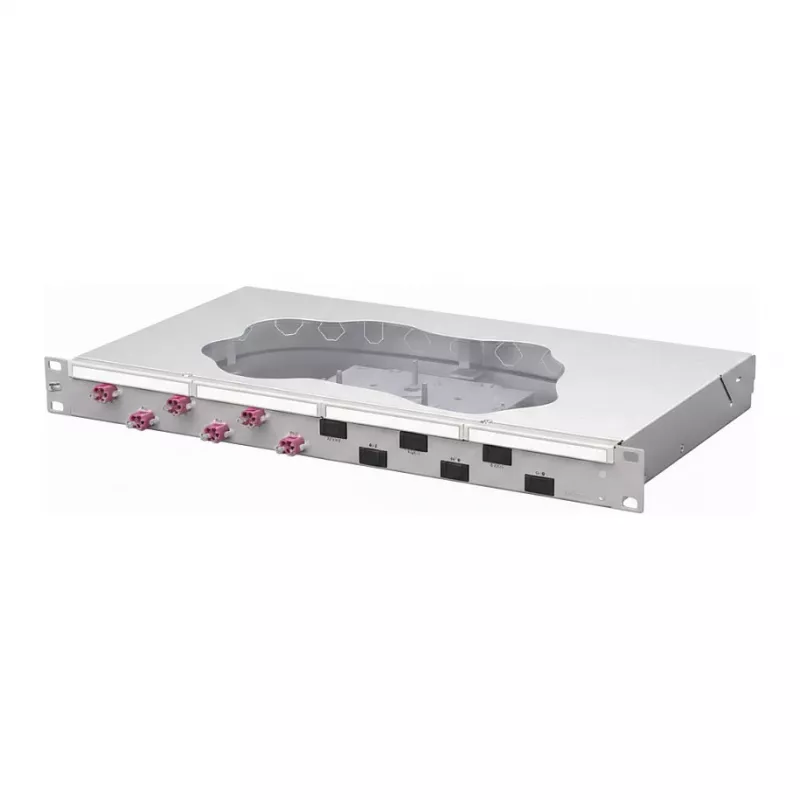

The METZ CONNECT patch panel splice 6xLC-D OS2 is a high-quality 1U 19-inch rackmount panel designed for efficient fiber optic splicing and termination. It features 6 LC duplex adapters on the front, providing a total fiber capacity of 12 fibers. The panel is pre-loaded with 2m LC pigtails (OS2) and is ready for fusion splicing. Its robust steel housing with powder coating in grey (RAL 7035) ensures durability and reliable performance in data center and telecom environments.

Advantages

Space-saving 1U design with 6 LC duplex ports for up to 12 fibers. Pre-installed pigtails reduce installation time. Fusion splicing ensures low insertion loss and high return loss. Compliant with RoHS and REACH standards.

Suitable for

• Data centers
• Telecommunication networks
• LAN cabling systems
• Fiber-to-the-home (FTTH) applications

Key specifications

• Rack Unit: 1U
• Mounting: 19-inch rackmount
• Fiber type: Single-mode (OS2)
• Connector type: LC Duplex
• Number of ports: 6
• Total fibers: 12
• Included pigtails: LC, OS2, 2m
• Housing material: Steel, powder-coated
• Colour: Grey (RAL 7035)
• Operating temperature: -10°C to +60°C
• Insertion loss: <0.2 dB
• Return loss: >50 dB (UPC)

Recommendations

For optimal performance, use with METZ CONNECT LC duplex patch cables and fusion splicer. Ensure proper cable management and bend radius protection.
