MiBoxer DL2-T controlador LED DALI-2-DT8-LE, 3 modos, carril DIN, 12–48 V DC

MiBoxer DL2-T is a constant-voltage LED controller with two output channels and three selectable modes: CCT tunable white, single colour and two independently controlled single-colour channels. In the last mode, each channel has its own DALI address. The DIP switches select the required output arrangement.

The controller supports DALI-2 communication according to IEC62386 and DT8 for colour-temperature control. Its input is 12–48 V DC, with a maximum of 10 A per channel and 20 A in total. Match the supply voltage to the connected LED strips and observe both current limits. The labelled screw terminals separate the DALI signal, power input and LED outputs.

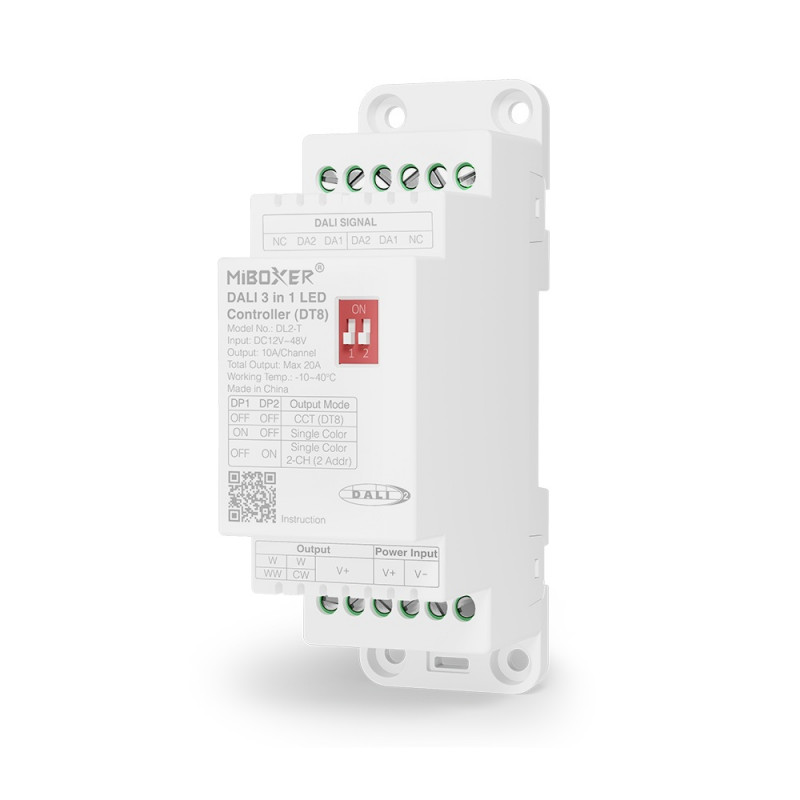

The white enclosure fits a 35 mm DIN rail, including TS-35/7.5 and TS-35/15 profiles. IP20 is intended for dry indoor use at −10 to +40 °C. Reverse-polarity, short-circuit and overcurrent protection with recovery are specified. A suitable DC supply, DALI bus supply, control panel, rail and LED strips are separate installation components.
