Microconnect FIB841002 Cable InfiniBand/fibra óptica 2 m SC LC amarillo

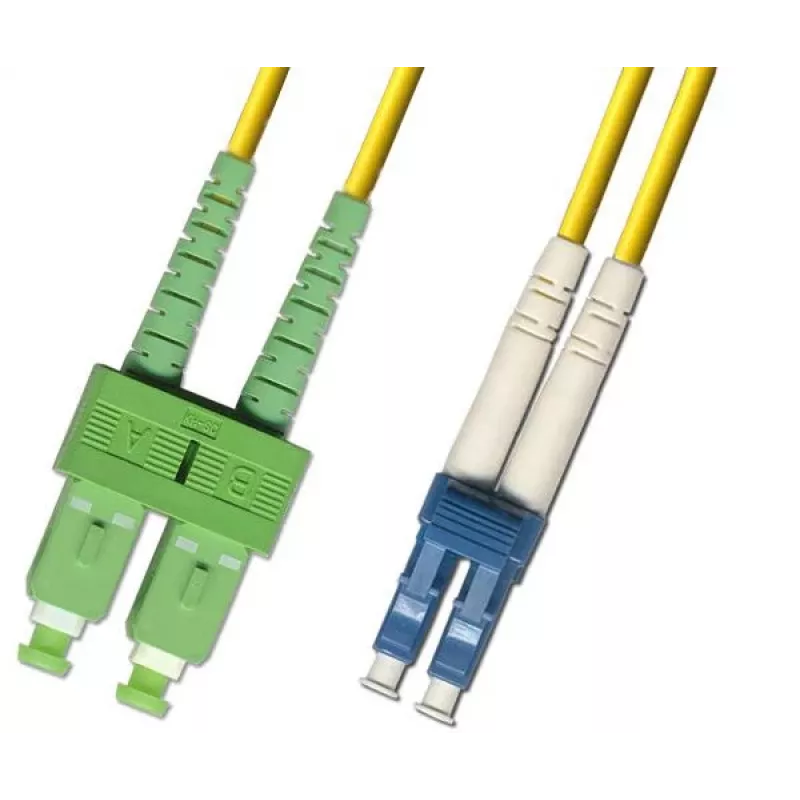

The Microconnect FIB841002 is a 2 m single-mode fibre optic patch cable with SC to LC connectors, OS2 fibre (9 µm core) and yellow jacket for easy identification in racks and cable runs. It is designed for enterprise networks, telecom rooms, server farms and cloud storage networks that require reliable fibre jumper connections and supports 1G/10G/40G/100G Ethernet links. Typical transmission ranges reach up to 10 km at 1310 nm and up to 40 km at 1550 nm. The cable uses LSZH jacket materials and conforms to common industry standards.

Advantages

The SC–LC OS2 single-mode construction provides low attenuation and stable performance over long distances. A 9 µm core diameter ensures compatibility with 1G–100G optic equipment. The 2 m length and yellow color simplify installation and identification in data centres and professional network environments. LSZH jacket improves safety in confined spaces by reducing toxic smoke and halogen emissions in case of fire.

Suitable for

• Connecting servers and switches in data centres
• Telecom rooms and backbone links
• Cloud storage and SAN networks
• High-speed Ethernet links: 1G, 10G, 40G, 100G

Key specifications

• Model: Microconnect FIB841002
• Fibre type: OS2 single-mode, 9 µm core
• Connectors: SC (one end) to LC (other end)
• Cable length: 2 m
• Colour: Yellow
• Jacket: LSZH
• Typical range: up to 10 km @1310 nm, up to 40 km @1550 nm
• Weight: 0.026 kg

How to use

Verify connector types on your equipment (SC and LC) before installation. Route the 2 m patch cable between the corresponding ports without bending the fibre beyond its minimum bend radius. Insert the SC connector into the SC port and the LC connector into the LC port until each connector latches. Avoid pulling on the fibre itself; handle by the connector boots and secure excess cable to cable management panels to prevent strain.

Recommendations

Inspect connector end-faces with a fibre inspection tool and clean if necessary before mating. Use this OS2 single-mode patch cord in compliant installations and keep cable runs away from sources of physical damage and extreme bend points to maintain optimal attenuation and longevity.
