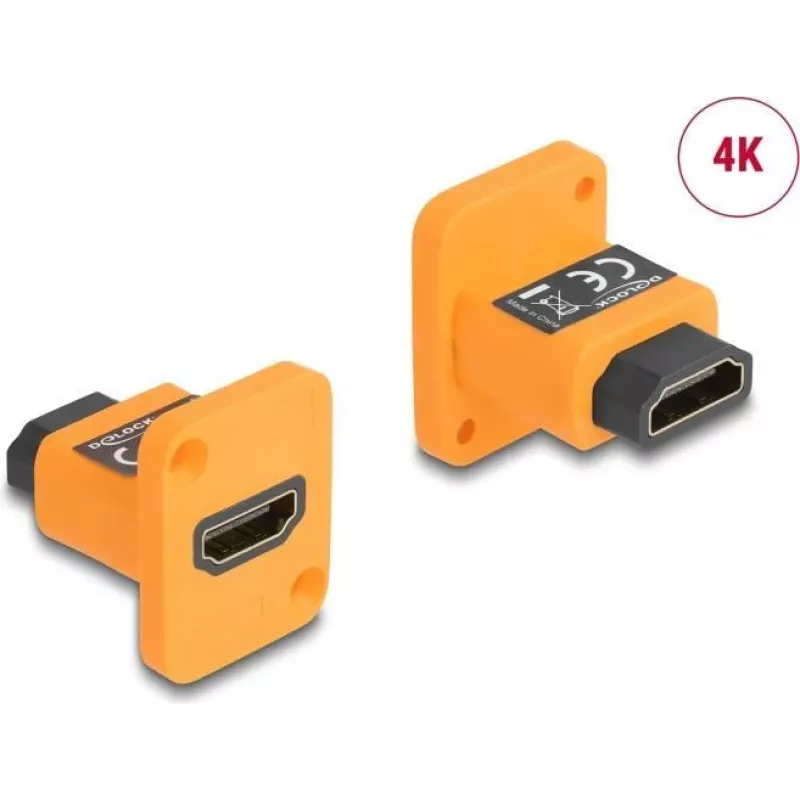

Módulo D-Type DeLOCK HDMI-A conector hembra a conector hembra 4K naranja

This DeLOCK D-Type Module HDMI-A female to female 4K in orange is designed for installation in panels or enclosures with D-type openings for XLR jacks, allowing HDMI connections to be integrated into professional audio and AV setups. It supports 4K resolution and uses HDMI-A connectors on both sides for straightforward cable connections while providing a visible orange colour for easy identification.

Advantages

The module supports 4K video transmission and provides a compact D-type form factor for mounting in panels or cases. With HDMI-A female connectors on both sides it enables straightforward pass-through or panel-mounted HDMI connections. The orange housing improves visual identification of the port among other connectors.

Suitable for

Key specifications

How to use

Mount the D-Type module into a panel or enclosure cut-out that accepts D-type inserts (for example openings intended for XLR jacks). Secure the module according to the panel’s fixing method, then connect HDMI cables to the HDMI-A female ports on each side to enable signal pass-through or to provide an accessible HDMI port on the panel face.

Recommendations

Ensure compatibility of cable length and HDMI version with connected devices to maintain 4K performance. Tighten panel fittings securely to prevent movement and avoid exposing the module to excessive moisture or mechanical stress.
