Módulo DisplayPort DeLOCK Easy 45 81306

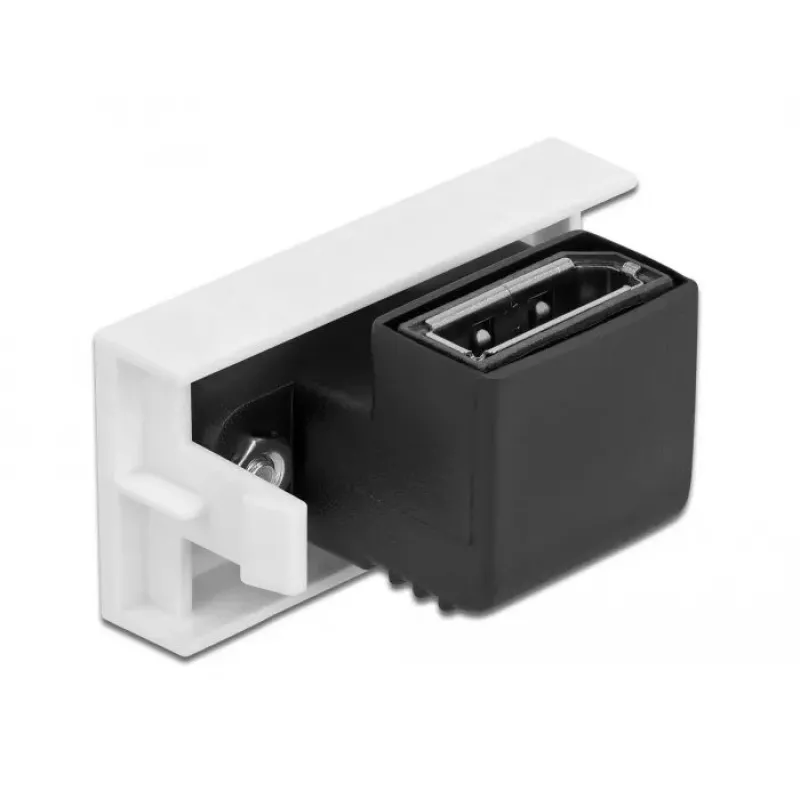

The DeLOCK Easy 45 DisplayPort Module (model 81306) is a snap-in modular unit that provides a DisplayPort female port with a 90° angled design. With dimensions of 22.5 x 45 mm and a height of 26.5 mm, this black module fits standard Easy 45 frames and cable ducts, allowing neat installation of DisplayPort connections in confined spaces.

Advantages

The snap-in mechanism secures the module firmly while allowing easy removal when needed. Its standardized Easy 45 form factor ensures compatibility with a range of module holders and cable ducts. The 90° angled DisplayPort connector helps reduce cable strain and is suitable for installations with limited depth.

Suitable for

• Connecting monitors and displays with DisplayPort interfaces

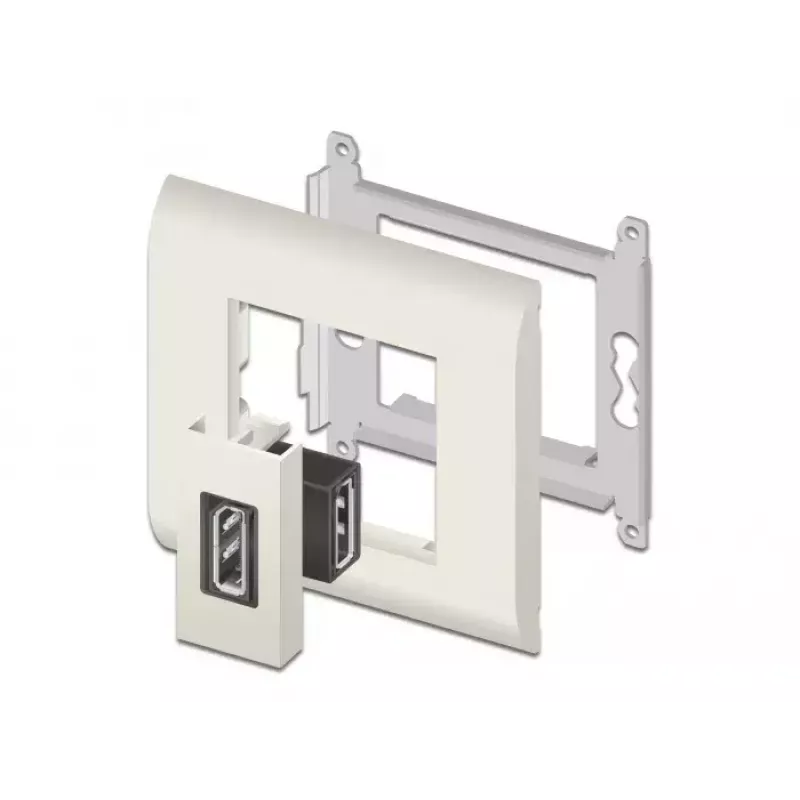

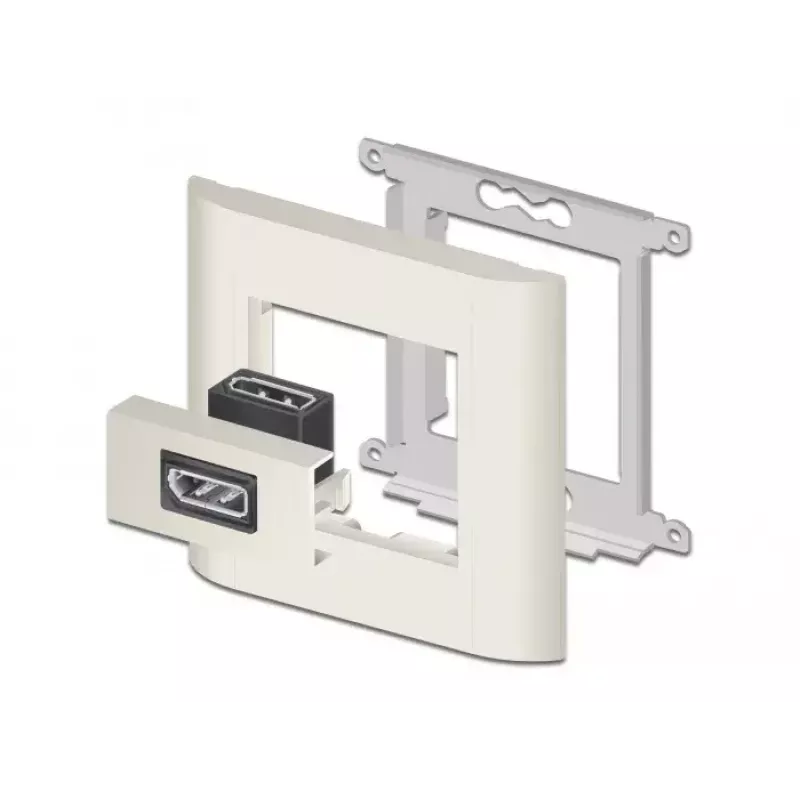

• Integration into Easy 45 modular frames and cable ducts
• Workstations or AV cabinets with limited rear clearance
• Office, meeting room, or multimedia installations

Key specifications

• Brand: DELOCK
• Model / MPN: 81306
• EAN: 4043619813063
• Interface: DisplayPort female (90° angled)

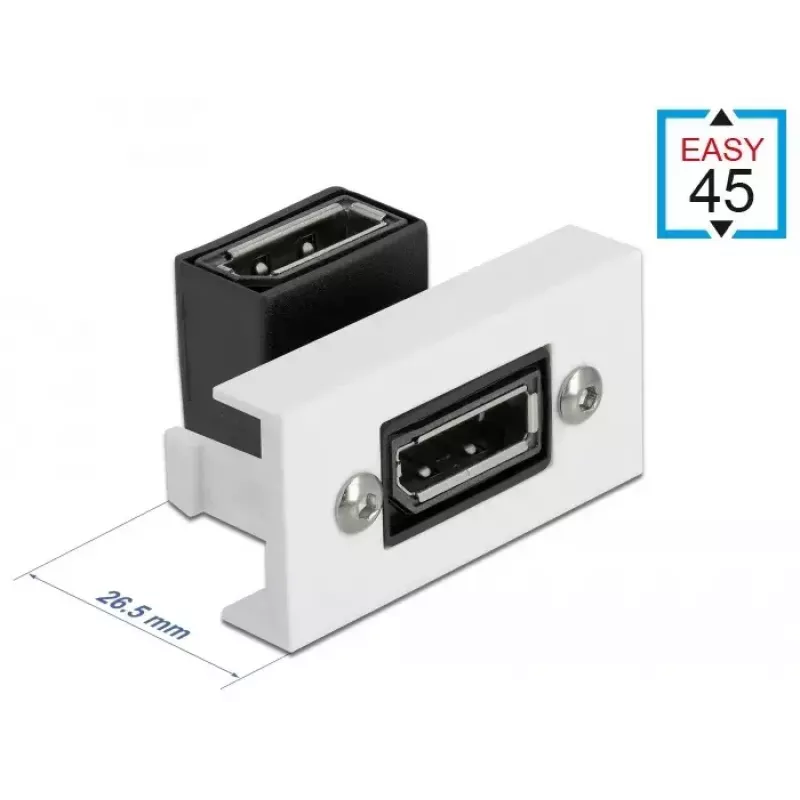

• Dimensions: 22.5 x 45 mm; height 26.5 mm
• Colour: Black
• System: Compatible with Easy 45 modular frames

How to use

Insert the module into a compatible Easy 45 frame or cable duct until the snap-in mechanism clicks into place. Connect a DisplayPort cable to the angled female port. To remove the module, press the release tab (if present) or carefully pull the unit out while supporting the surrounding frame to avoid damaging adjacent modules.

Recommendations

Use the 90° DisplayPort module where rear depth is limited and secure module placement within Easy 45 frames to maintain tidy cable routing; avoid forcing incompatible frames or applying excessive torque to connected cables.
