Módulo receptor GPS USB Navilock NL-8004U negro

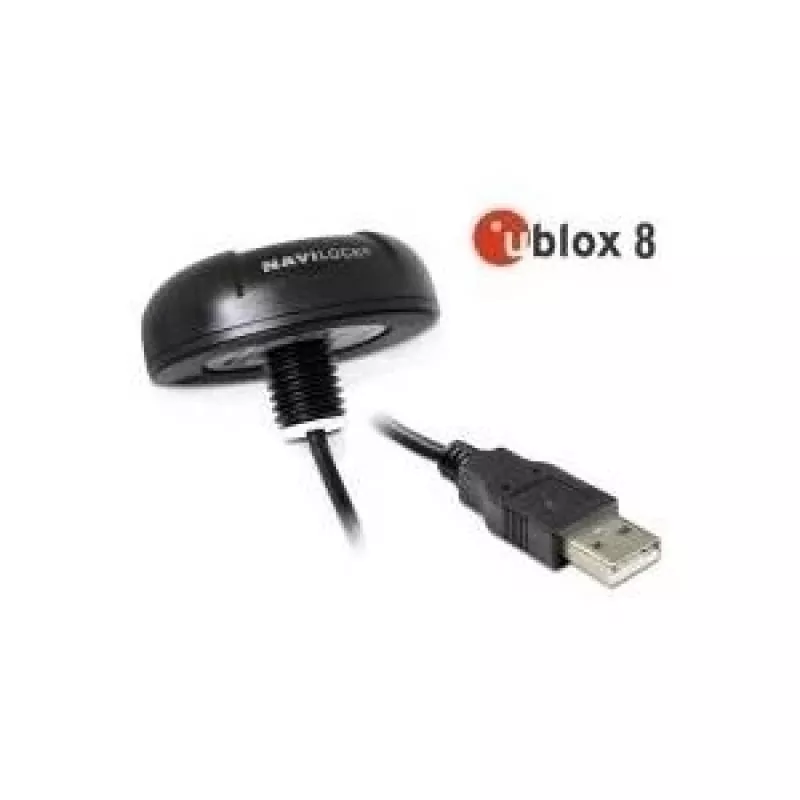

The Navilock NL-8004U USB GNSS receiver is a compact GPS receiver module based on the u-blox 8 chipset with a built-in antenna and USB Type-A connector. It receives L1 navigation signals at 1575.42 MHz and connects directly to a notebook or other device with compatible routing or navigation software. The unit measures 62 mm × 62 mm × 21 mm and is supplied with installation material for mounting on vehicle roofs such as cars, trucks or buses.

Advantages

The NL-8004U provides high-sensitivity satellite reception via its integrated antenna and proven u-blox 8 GNSS engine. Its USB 2.0 interface and USB Type-A connector enable plug-and-play connection to laptops and devices running standard navigation software. The compact, low-profile housing and included mounting kit allow secure roof installation on a variety of vehicles without additional external antennas.

Suitable for

• Portable navigation with a notebook or PC
• Vehicle roof installation for car, truck or bus navigation
• Routing and mapping applications requiring L1 GPS reception

Key specifications

• Model: Navilock NL-8004U (MPN 62531, EAN 4043619625314)
• GNSS chipset: u-blox 8
• Signal: L1 GPS, 1575.42 MHz
• Interface: USB 2.0, USB Type-A connector
• Built-in antenna for high sensitivity
• Dimensions: 62 × 62 × 21 mm

How to use

Connect the NL-8004U to a notebook or PC via the USB Type-A connector. Install or run compatible routing or navigation software on the host device; the receiver will supply GNSS position data to that software. For vehicle use, mount the receiver on the roof using the supplied installation material, ensuring a clear view of the sky for optimal satellite reception. Follow any host software prompts for COM port selection or driver installation if required.

Recommendations

Install the receiver in a central roof position and avoid metallic obstructions above the antenna. Use the included mounting hardware for a secure fit and verify software settings on the host device to ensure the correct data stream and update rate for your navigation or tracking application.
