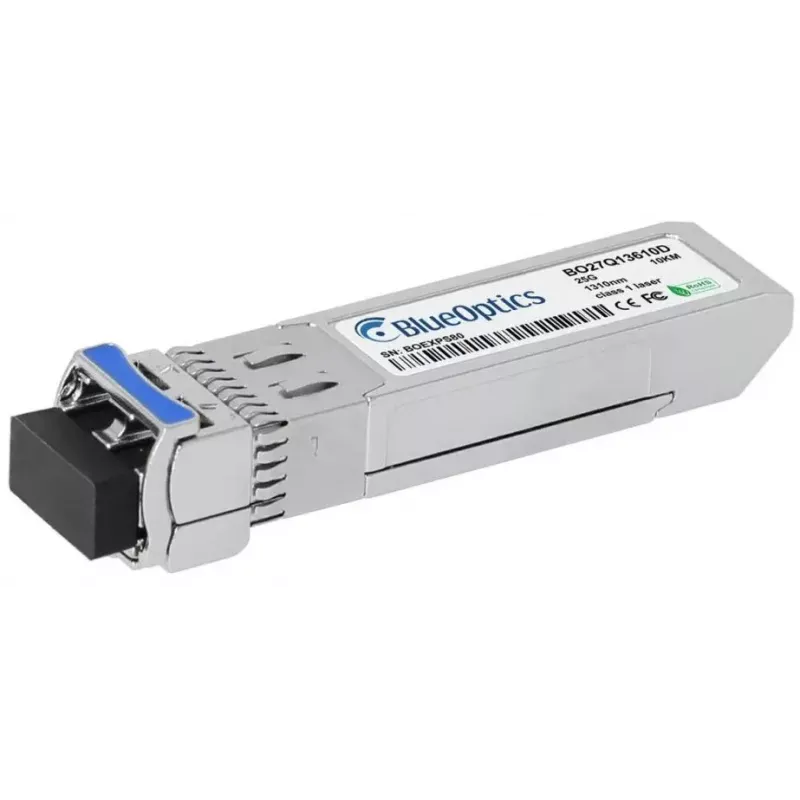

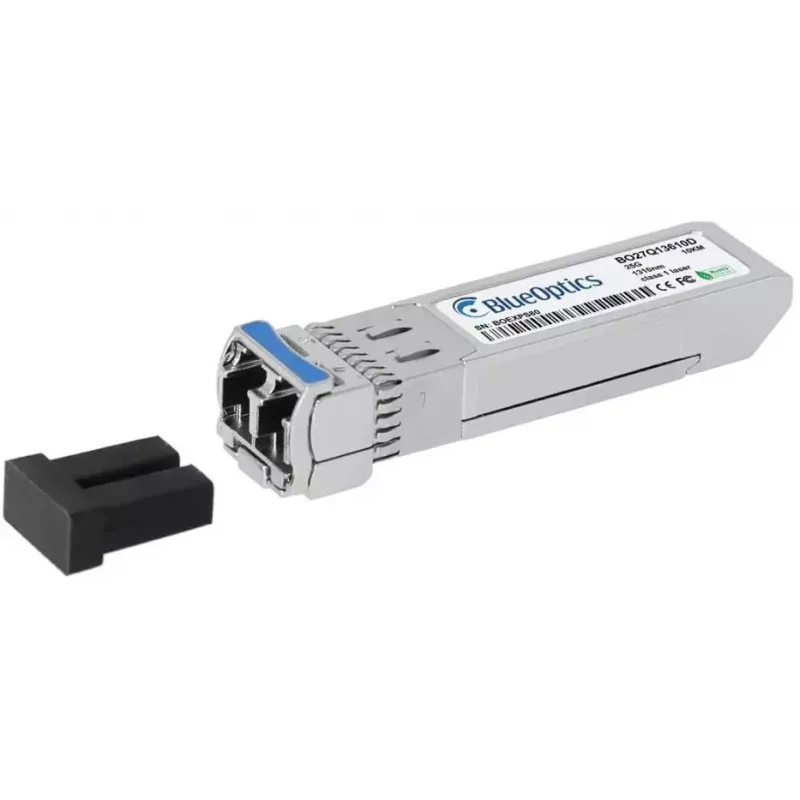

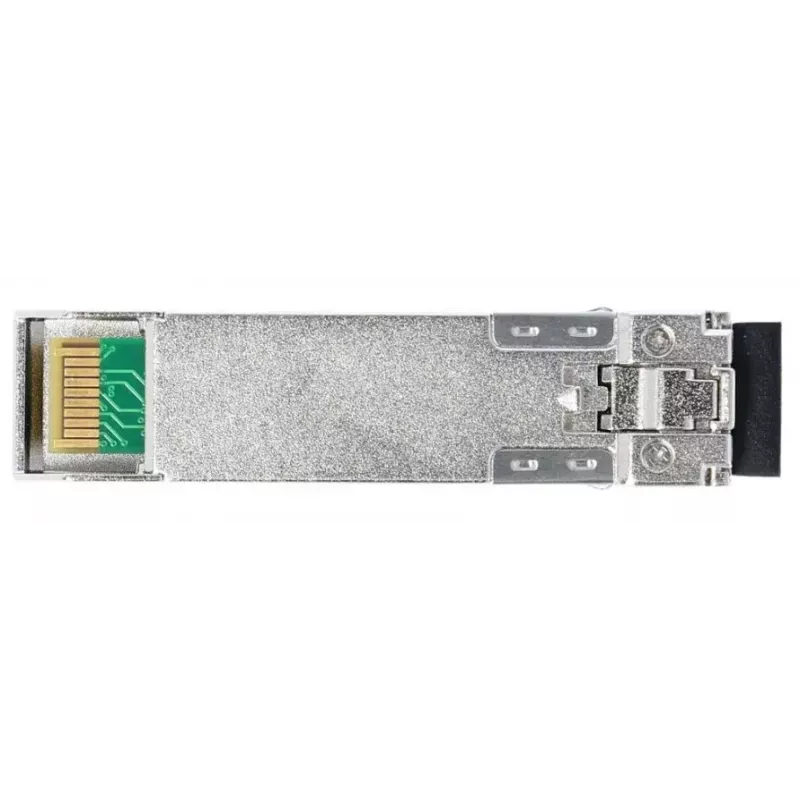

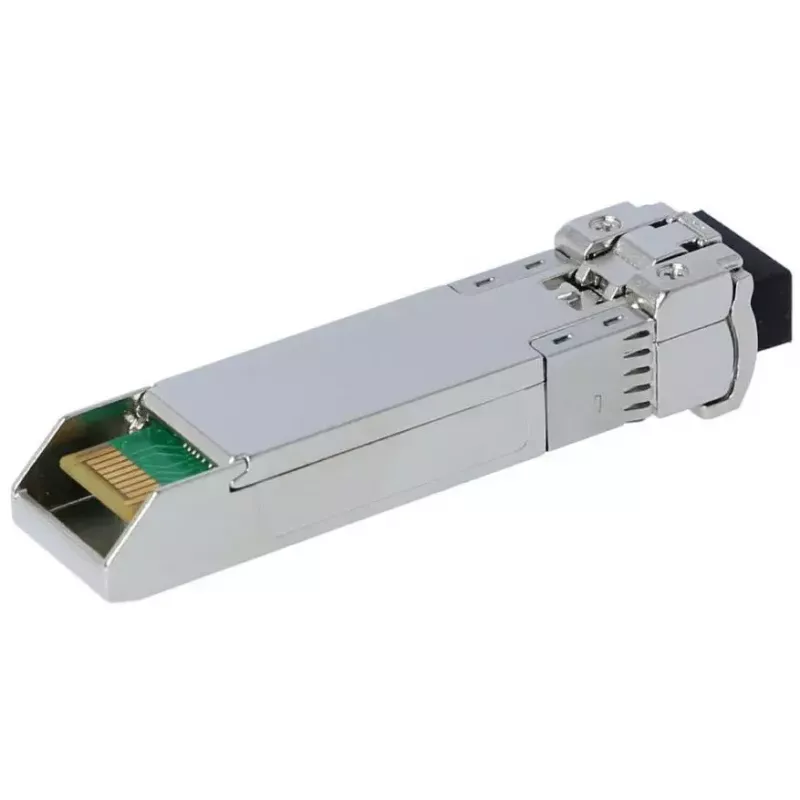

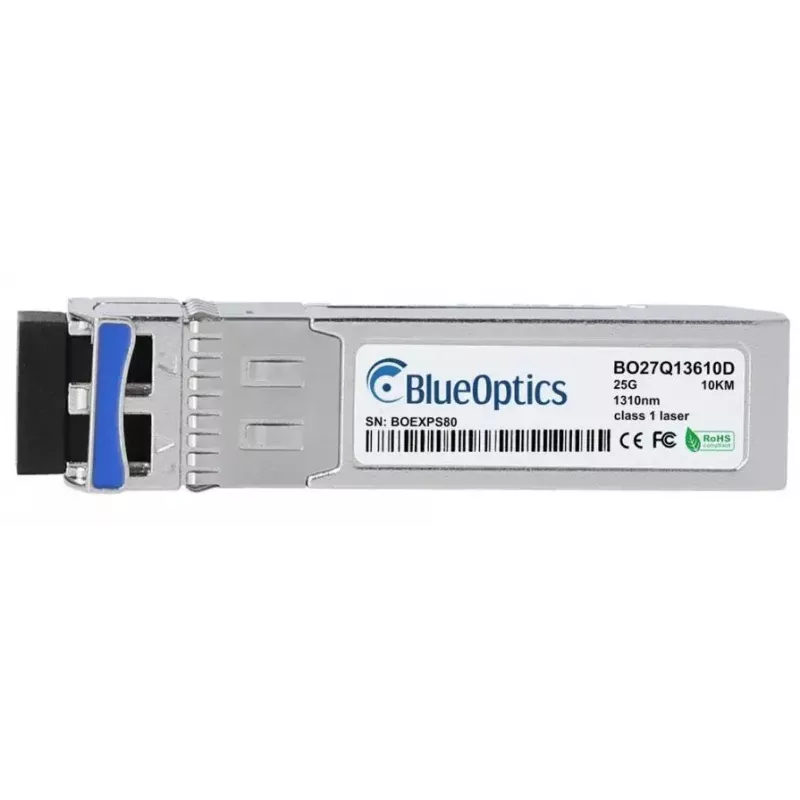

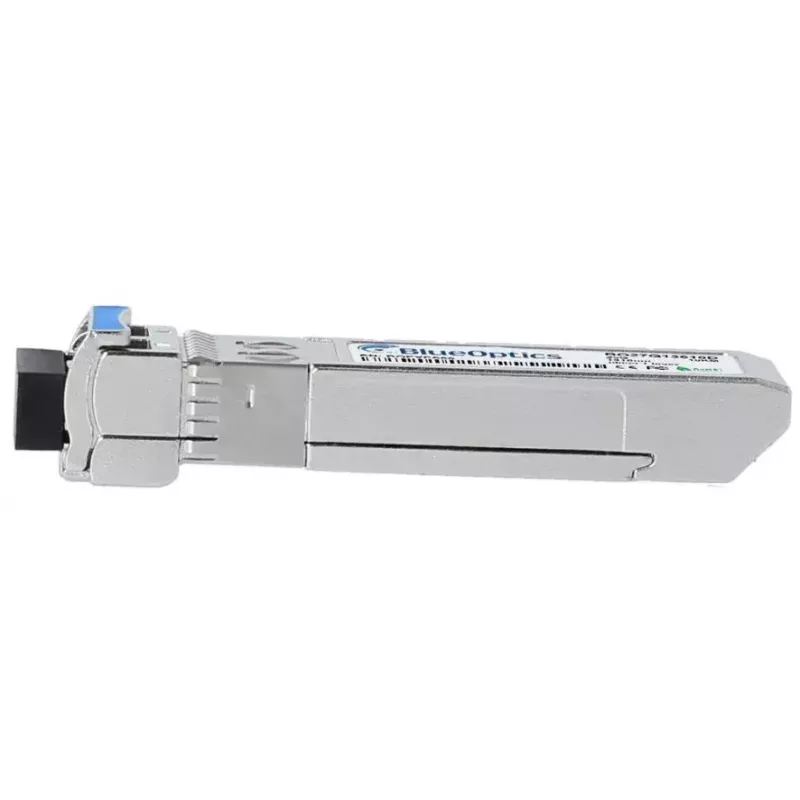

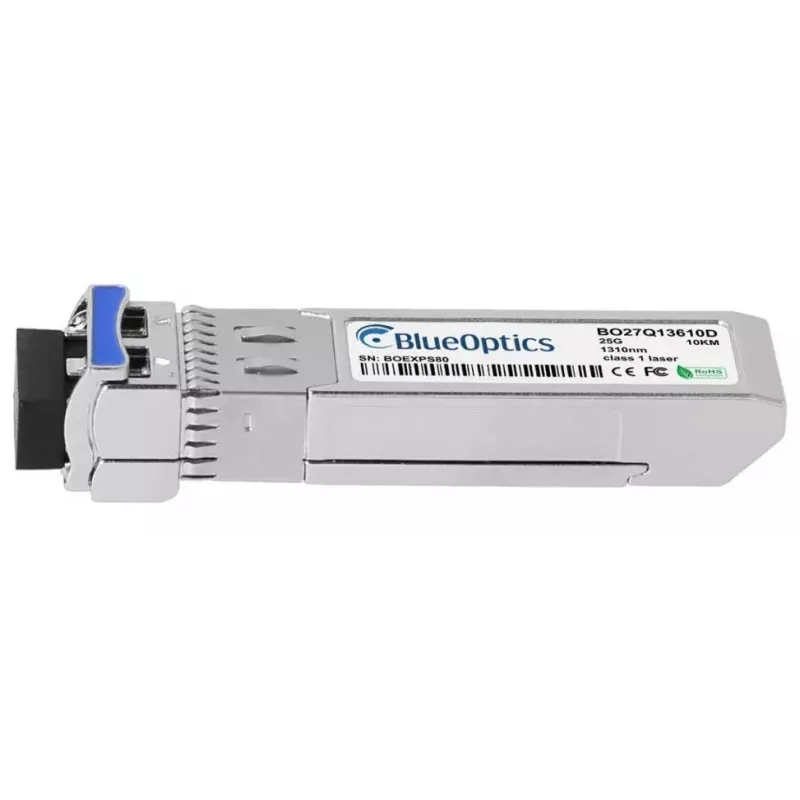

Módulo transceptor de fibra óptica BlueOptics 407-BBXZ-BO SFP28 10000 m

The BlueOptics 407-BBXZ-BO is a fiber optic SFP28 transceiver module designed for high-speed optical data transmission over single-mode fiber. Constructed in an aluminium housing and weighing approximately 20 g, the module supports long-distance links up to 10,000 m and fits SFP28 ports that accept MSA-compliant transceivers. It provides bidirectional optical transmission with LC duplex connectivity and is intended for use in networking equipment that supports 25GBASE-LR class SFP28 modules.

Advantages

The module offers a compact SFP28 form factor that enables 25 Gbps class performance while maintaining low weight and a robust aluminium enclosure. Being MSA-compliant, it is suitable for use in a wide range of switches, routers and storage systems that accept SFP28 optics. The design supports long reach up to 10 km on single-mode fiber and includes industry-standard optical interfaces for straightforward integration into existing fiber links.

Suitable for

• 25 Gbps Ethernet uplinks and interconnects
• Data center switch-to-switch or switch-to-server links
• Long-reach single-mode fiber connections up to 10 km
• High-bandwidth storage and aggregation networks

Key specifications

• Interface type: SFP28
• Maximum reach: 10,000 m (single-mode fibre)
• Connector: LC duplex
• Housing material: aluminium
• Weight: 0.02 kg
• Optical wavelength: 1310 nm transmit and receive (typical for 25GBASE-LR class)

How to use

Install the BlueOptics 407-BBXZ-BO into any compatible SFP28 port until it clicks into place. Connect LC duplex single-mode fiber patch cords ensuring transmit and receive channels are correctly aligned. Verify link status on the host device and configure the interface for the appropriate 25G Ethernet protocol in the device operating system. If the host supports digital diagnostics (DDM/DOM), enable monitoring to read real-time parameters such as optical power and temperature where supported by the platform.

Recommendations

Use high-quality single-mode LC duplex patch cords and, where available, check digital diagnostic outputs to validate link health. Ensure the network equipment firmware and drivers support third-party or MSA-compliant SFP28 modules if required by the platform.
