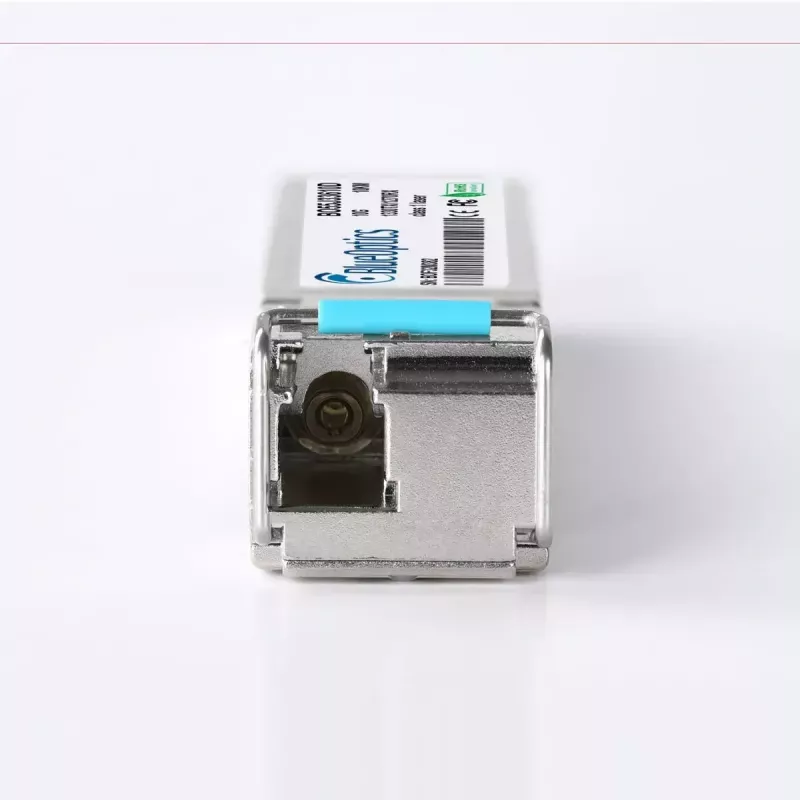

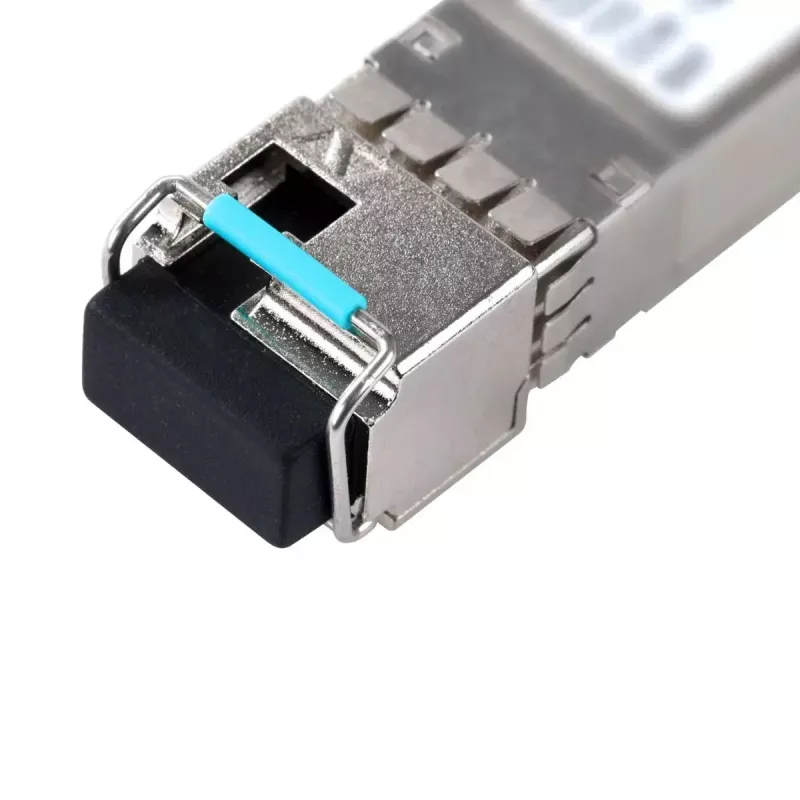

Módulo transceptor de fibra óptica BlueOptics 740-096088-BO SFP+ 10000 m

The BlueOptics 740-096088-BO SFP+ 10000m fiber optic transceiver module is a single-mode 10GBASE-BX-D compatible SFP+ designed for optical links up to 10 kilometers. Housed in an aluminium casing and weighing 20 grams, the module uses an LC simplex connector and implements distinct transmit (1270 nm) and receive (1330 nm) wavelengths for bidirectional transmission on a single fiber. The module follows MSA form-factor and optical-interface standards and supports common high-speed protocols such as Ethernet and Fibre Channel over Ethernet.

Advantages

The module provides a compact, MSA-compliant SFP+ solution that fits standard transceiver slots and is compatible with equipment supporting the corresponding Juniper 10GBASE-BX-D specification. Lightweight aluminium housing offers mechanical robustness and heat dissipation while keeping the module compact. Built to use quality optical lasers and IC components, it supports digital diagnostics (DDM/DOM) for real-time monitoring of supply voltage, bias current, transmitted and received optical power and temperature where the host hardware exposes that functionality.

Suitable for

• 10 Gbps single-mode fiber links up to 10 km
• Network switches and routers that accept MSA-compliant SFP+ 10GBASE-BX-D modules
• Data center uplinks and inter-rack connections using LC simplex connectors
• Fibre Channel over Ethernet and other high-speed optical applications

Key specifications

• Form factor: SFP+
• Optical type: Single-mode fiber (SMF)
• Wavelengths: TX 1270 nm / RX 1330 nm
• Connector: LC simplex
• Max. link distance: up to 10 km
• Supported data rate: 10 Gbps
• Housing material: aluminium
• Weight: 0.02 kg

How to use

Install the BlueOptics SFP+ transceiver into a compatible SFP+ slot following the host device manufacturer’s hot-swap and handling recommendations. Connect an LC simplex single-mode fiber patch cable matching the module’s bidirectional wavelengths (one fiber carrying TX/RX using the BX-D scheme) and ensure proper polarity and mating. Verify link status on the host device; if available, enable or read DDM/DOM monitoring through the equipment management interface to observe optical power, temperature and other diagnostic parameters.

Recommendations

For reliable performance, use single-mode fiber patch cords and compatible LC connectors rated for 10 Gbps, confirm that the host hardware supports 10GBASE-BX-D modules and DDM/DOM if diagnostics are required, and avoid excessive bending or contamination of fiber connectors. Follow electrostatic discharge precautions when handling the transceiver.
