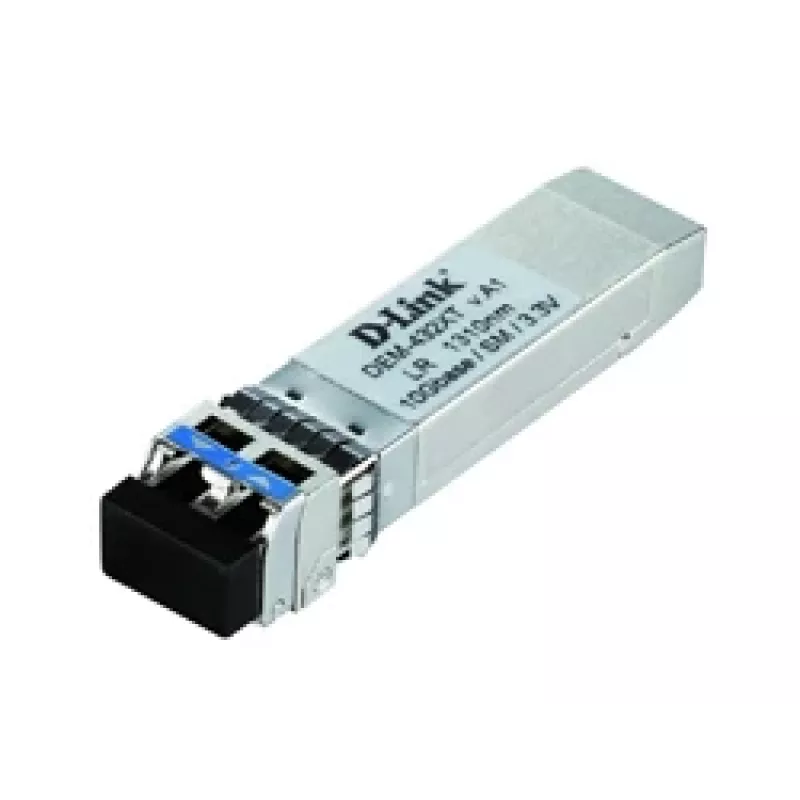

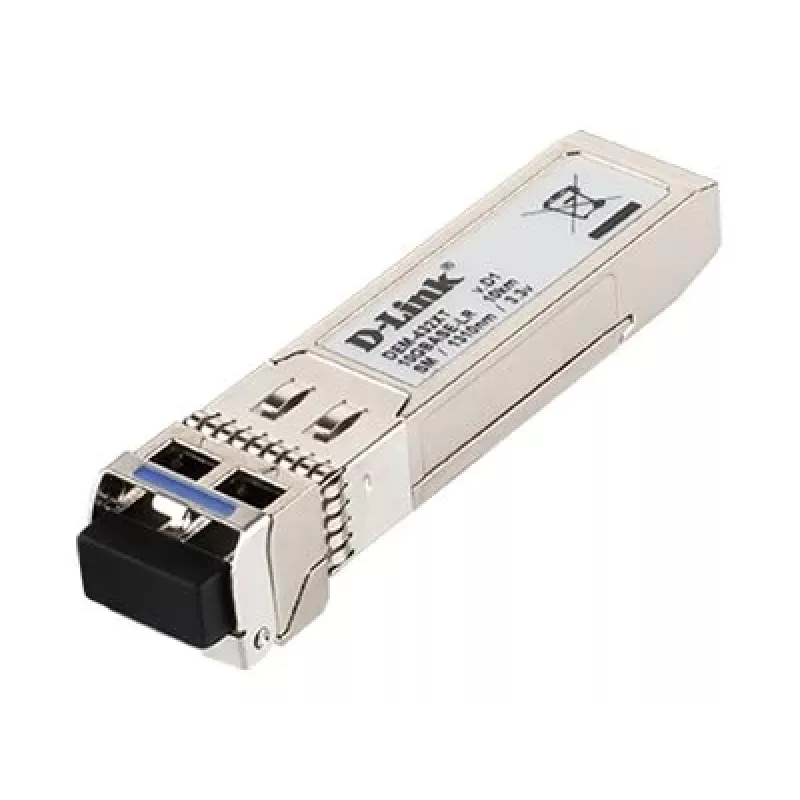

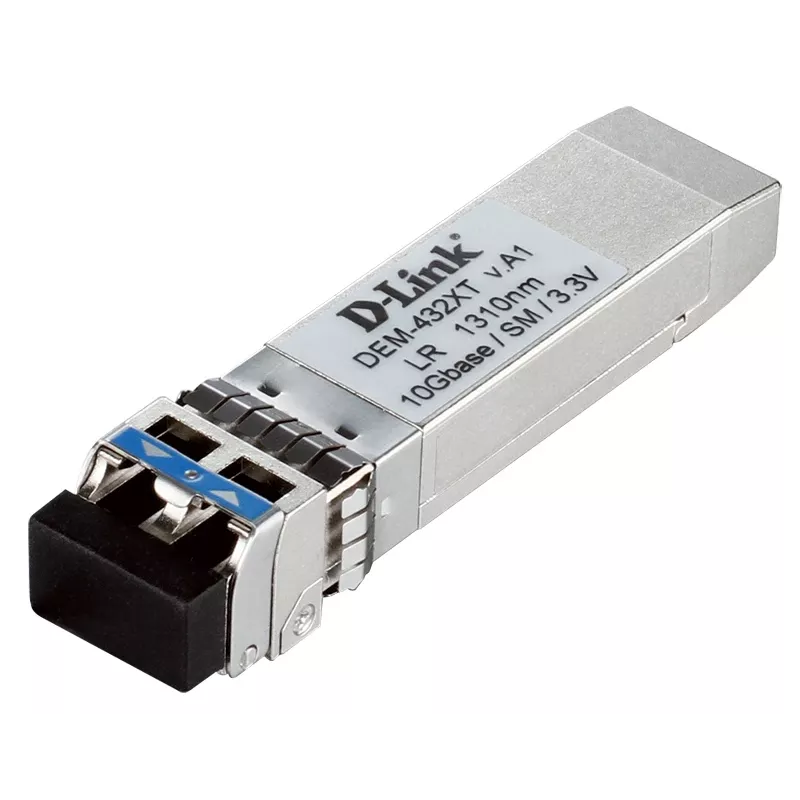

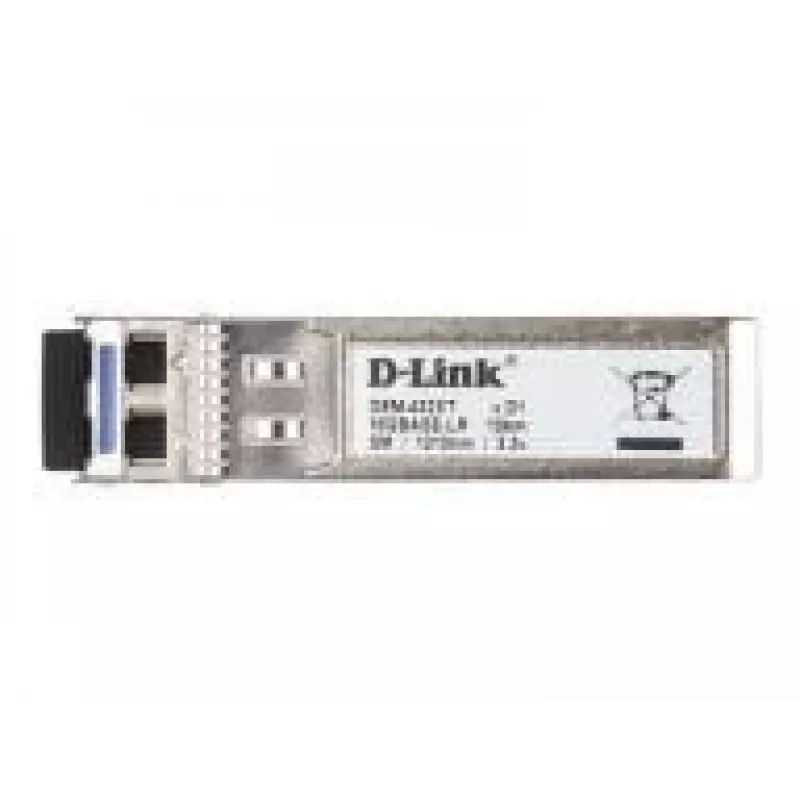

Módulo transceptor de fibra óptica D-Link DEM-432XT 10000 Mbit/s SFP+

The D-Link DEM-432XT is a 10G SFP+ fiber optic transceiver module designed for SFP+ slots on network switches and other compatible devices. It supports 10 000 Mbit/s data rate at a 1310 nm wavelength and offers a compact SFP+ form factor that reduces power consumption and increases port density. The module is hot-swappable and includes the necessary signal amplification for reliable transmission over suitable fiber cabling. It is RoHS-compliant and carries certifications such as UL, TUV, CE, FCC, and VCCI.

Advantages

The SFP+ form factor of the DEM-432XT is smaller and more power-efficient than older 10G modules, providing lower cost per port and higher port density in switches. As a hot-pluggable transceiver, it can be inserted or removed without powering down the system, minimizing service interruptions. The module supports 10G Ethernet performance up to 10 Gbit/s, making it suitable for high-throughput environments.

Suitable for

• Data center uplinks and aggregation
• Enterprise wiring closets and distribution
• Service provider transport links
• High-speed server or storage connections

Key specifications

• Model: D-Link DEM-432XT
• Form factor: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 1310 nm
• Hot-pluggable: Yes
• Compliance and certifications: RoHS, UL, TUV, CE, FCC, VCCI
• Dimensions (W×D×H): 14.8 mm × 11.8 mm × 56.5 mm
• Weight: 0.0195 kg
• Product colour: Gold, Metallic
• MTBF: 4,650,000 hours

How to use

Insert the DEM-432XT transceiver into an empty SFP+ slot on a compatible switch or network device while the device is powered on; the module is hot-pluggable so no shutdown is required. Attach a compatible 10G-capable fiber cable (appropriate for 1310 nm operation) and configure the switch port via the device management interface to enable 10G operation. After configuration, verify the link status and speed through the management interface or indicator LEDs.

Recommendations

Use the DEM-432XT with switches and network equipment that explicitly support D-Link SFP+ modules or the SFP+ specification. Deploy certified multimode or single-mode fiber and check vendor documentation and firmware compatibility before installation to ensure reliable 10G connectivity.
