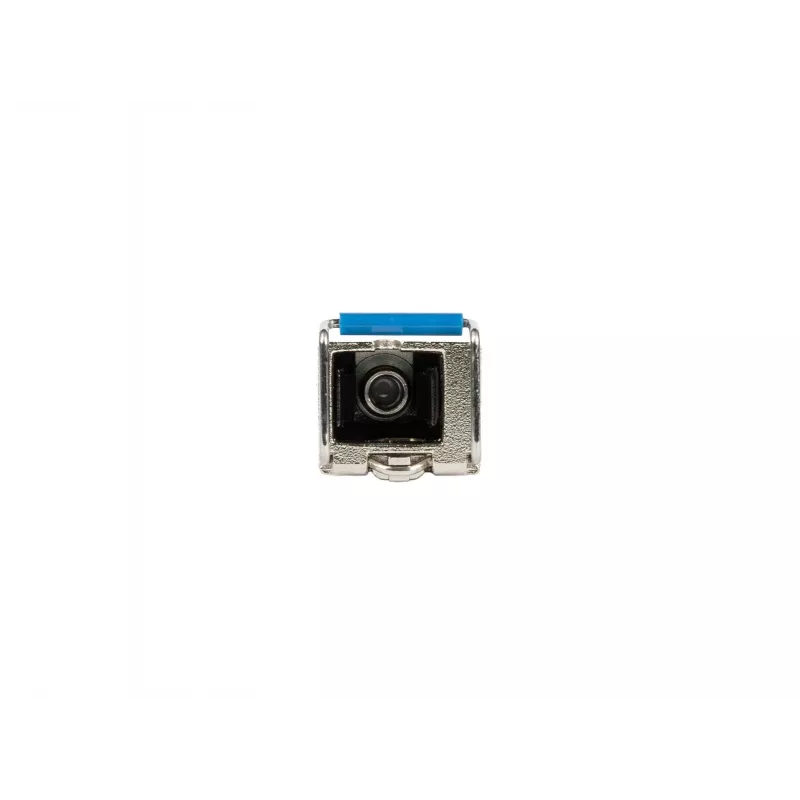

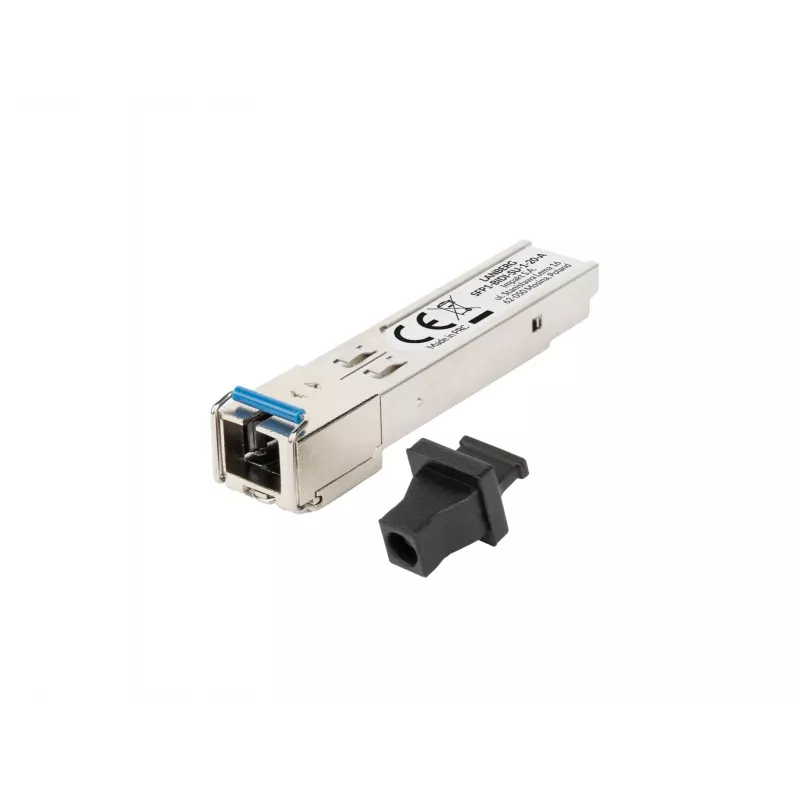

Módulo transceptor SFP BiDi Lanberg, 1 Gb/s, 1310/1550 nm, 20 km, SC/UPC, A

The Lanberg SFP Bidi Module is a transceiver module designed for bidirectional fiber-optic communication over a single single-mode fiber. It uses BIDI technology with 1310 nm and 1550 nm wavelengths to separate transmission and reception, supporting Gigabit Ethernet connections up to 1.25 Gb/s over distances up to 20 km.

Key features

• BIDI technology enables bidirectional transmission over one single-mode fiber
• Supports Gigabit Ethernet connections up to 1.25 Gb/s
• Simplex SC connector for standard fiber installations
• Hot-swappable SFP form factor
• BIDI A version: TX 1310 nm, RX 1550 nm; operates only as a complementary A + B pair

Specifications

• Brand: Lanberg
• MPN: SFP1-BIDI-SU-1-20-A
• Product type: Transceiver Module
• SFP transceiver type: SFP
• Maximum data transfer rate: 1 Gbps
• Fiber optic connector: SC
• Single-mode fiber (SMF) supported: Yes
• Ethernet LAN: Yes
• Form factor: SFP
• Type / wavelength: 1310 nm
• Type / wavelength: 1550 nm
• Range: 20 km
• Fiber type: Single-mode
• Max transmission speed: 1
• Connector: SC/UPC
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
• Power consumption: 1 W
• Transmitter power (Tx Power): -9 to -3 dBm
• Receiver sensitivity (Rx Sens.): -22 dBm
• Receiver overload threshold (Rx Overload): -3 dBm
