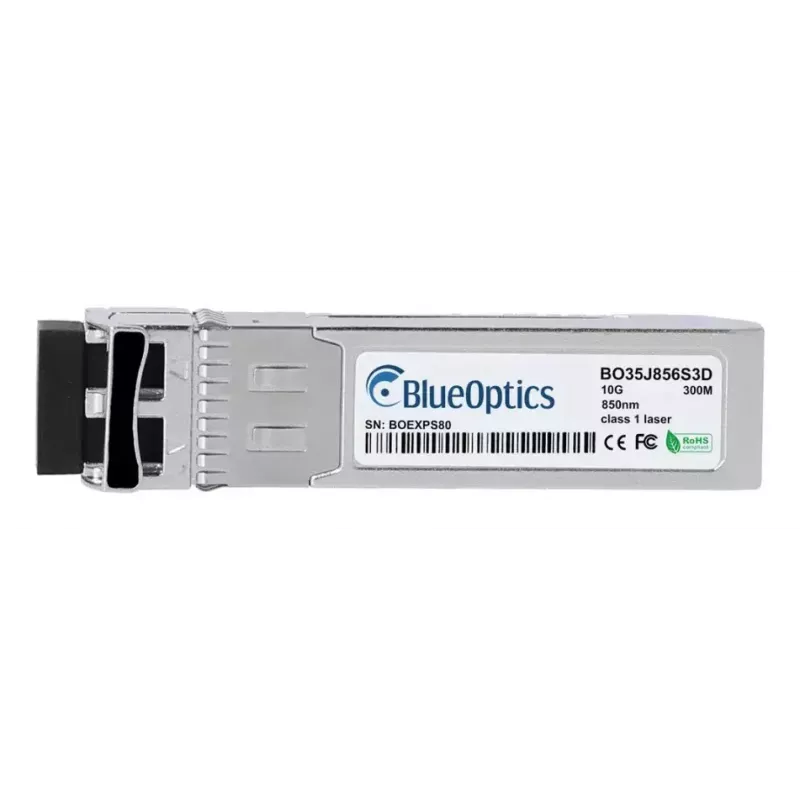

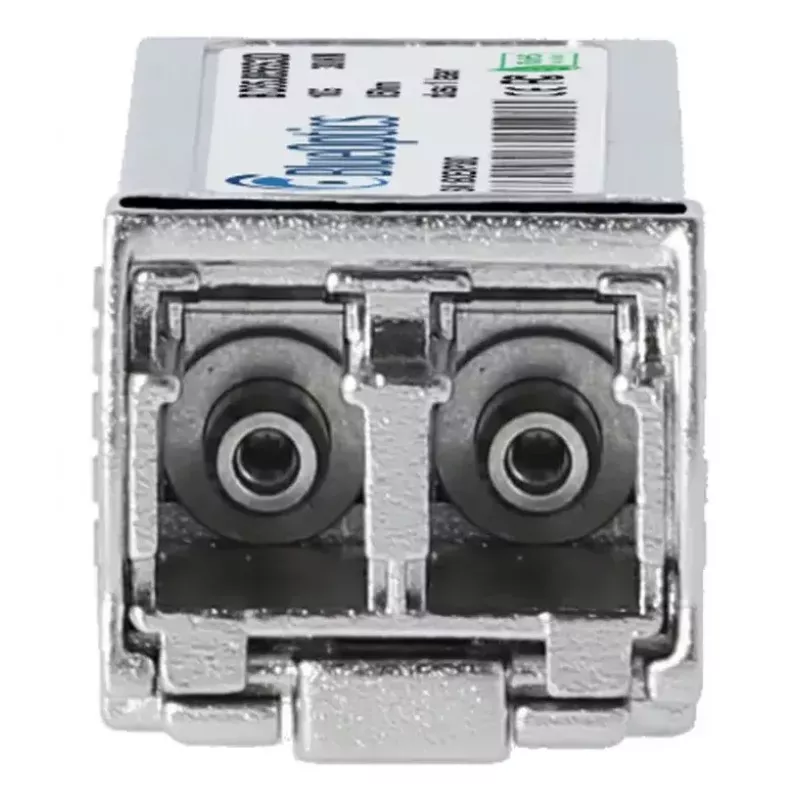

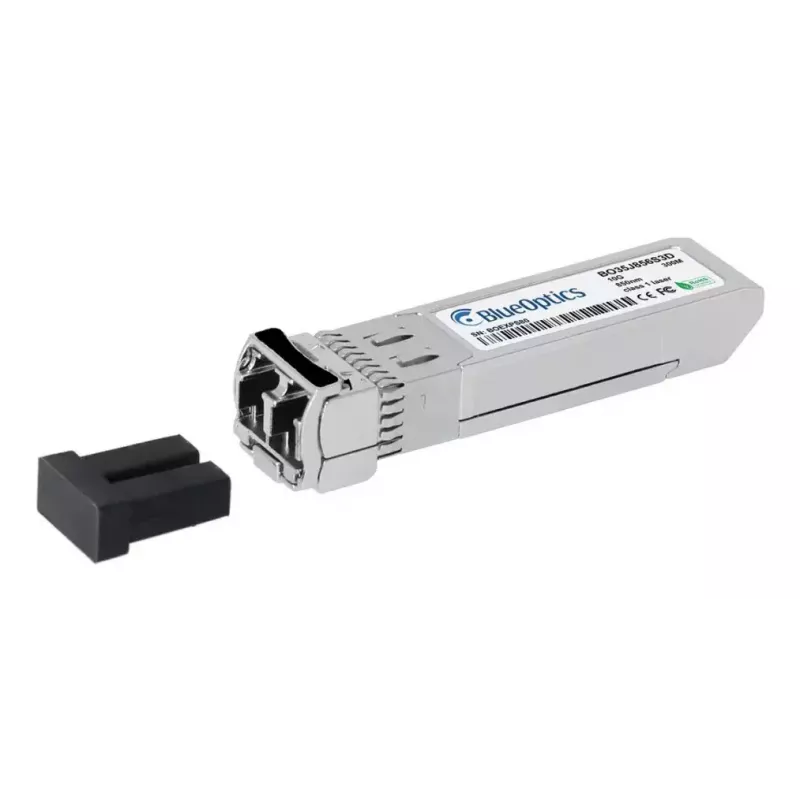

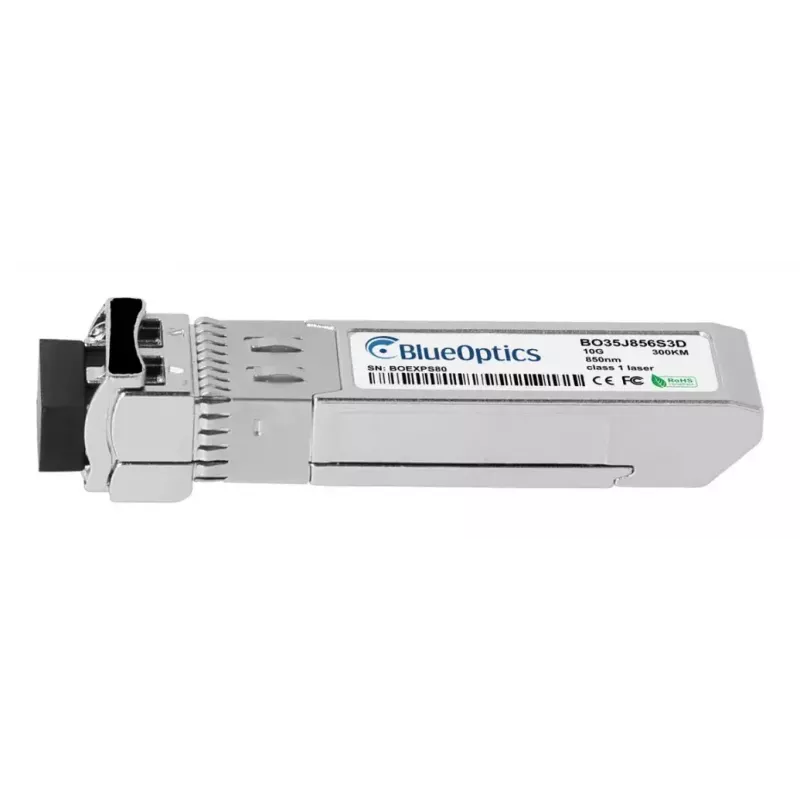

Módulo transceptor SFP+ BlueOptics PLRXPL-VC-S43-23-N-BO 10000 Mbit/s

The BlueOptics PLRXPL-VC-S43-23-N-BO is an SFP+ transceiver module designed for 10GBASE-SR multimode fiber links. It supports a maximum data transfer rate of 10000 Mbit/s and uses LC Duplex connectors with 850 nm wavelength for both transmit and receive functions. The module is compact and lightweight (approx. 0.02 kg) and complies with CE, RoHS and FCC standards. It implements MSA-compliant form factor and electrical/optical interfaces and includes Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of supply voltage, temperature, laser output and input power and laser bias current when supported by the host device.

Advantages

The transceiver is built to be compatible with common hardware platforms that accept 10GBASE-SR SFP+ modules, offering vendor-neutral interoperability when the host supports MSA and PICOLight-compatible modules. Its LC Duplex multimode interface and 850 nm VCSEL-based transmit/receive design provide low-latency, EMI-immune optical links suitable for short-range high-bandwidth connections. Components from established suppliers and factory testing ensure stable operation and extended service life. Integrated DDM/DOM simplifies remote diagnostics and maintenance where the host supports those features.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into an available SFP+ port on a compatible switch, router or storage device, ensuring the host device supports 10GBASE-SR modules and, if required, DDM/DOM features. Use LC Duplex multimode patch cables to connect to the remote transceiver or patch panel. Observe correct fiber polarity and handle connectors carefully to avoid contamination; clean fiber endfaces before mating. The module is hot-pluggable in most platforms, but follow the host vendor's installation and removal procedures to prevent link disruption.

Recommendations

Use high-quality OM3/OM4 multimode fiber and matching BlueOptics or equivalent LC Duplex patch cables to achieve designed reach and signal margin. Verify host compatibility with PICOLight/MSA SFP+ modules and enable DDM/DOM monitoring in the host when remote diagnostics are required. Store unused transceivers with dust caps in a clean, dry environment and avoid touching the optical contacts.
