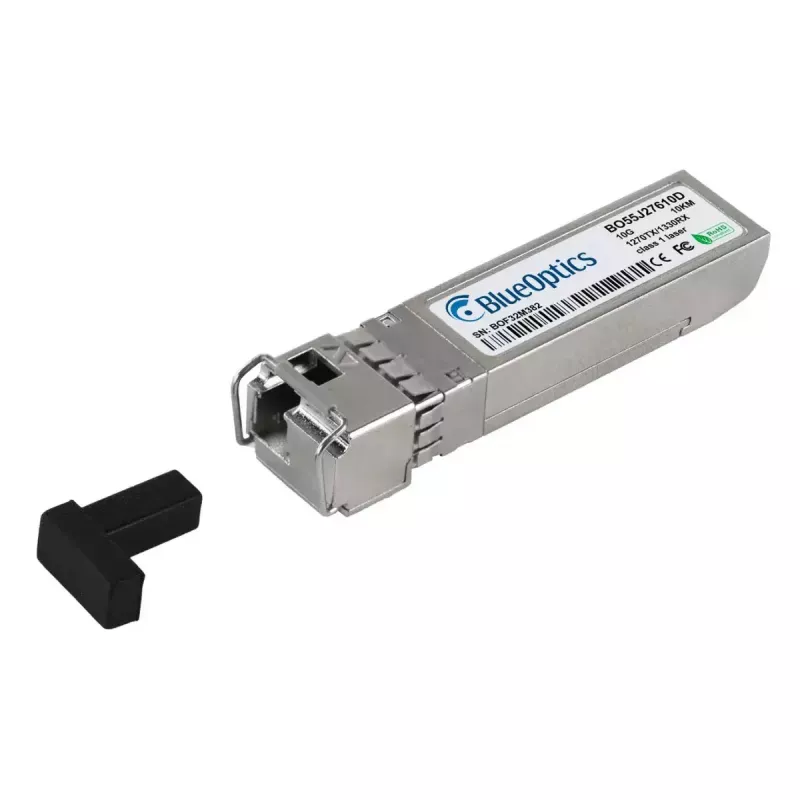

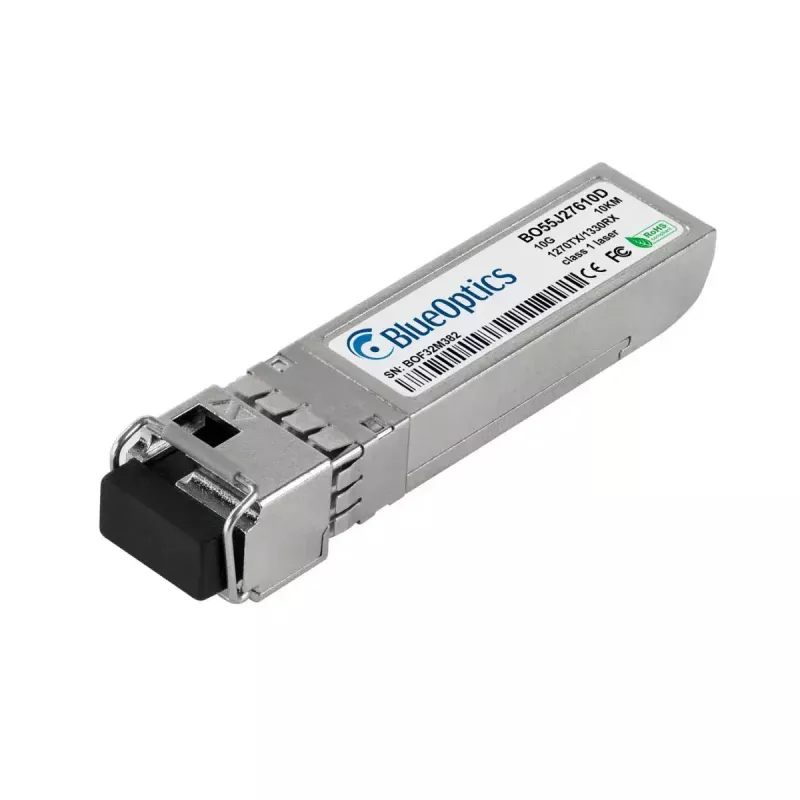

Módulo transceptor SFP BlueOptics SFP-10G-BXU-I-BO fibra óptica SFP+ LC

The BlueOptics SFP-10G-BXU-I-BO is a fiber optic SFP+ transceiver module designed for high-speed single-mode data transmission. It uses an LC simplex connector and adheres to MSA-compliant mechanical and electrical interfaces for compatibility with SFP+ slots. The module is made of aluminium, weighs approximately 0.02 kg, and supports 10 Gbit/s optical links over typical single-mode fiber installations. The transceiver implements a bi-directional wavelength pair for single-fiber operation and is intended for use in network devices that accept SFP+ 10GBASE-BX-U modules.

Advantages

The transceiver offers a compact SFP+ form factor with LC simplex connectivity and is manufactured to MSA standards for interoperability. Its aluminium housing provides mechanical durability while keeping the weight low. Designed for 10 Gbit/s applications over single-mode fiber, the module supports established optical transmission protocols and can be used in platforms that accept 10GBASE-BX-U SFP+ modules. Built-in digital diagnostic monitoring (DDM/DOM) capability allows remote readout of operational parameters where supported by host hardware.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on the host device until it clicks into place. Connect an LC simplex single-mode fiber patch cord, observing the correct fiber routing for bi-directional operation (transmit and receive on separate wavelengths). Power on the host device and verify link status via device indicators or management interface. If DDM/DOM is required, enable or query the diagnostics through the host system to monitor voltage, temperature, transmit and receive power and laser bias current when supported.

Recommendations

Ensure the host device supports 10GBASE-BX-U type SFP+ modules and DDM/DOM if diagnostic access is needed. Use single-mode LC simplex patch cords and, for best performance, follow recommended fiber cleaning and handling practices. Verify link settings and, if applicable, test compatibility in a controlled environment before large-scale deployment.
