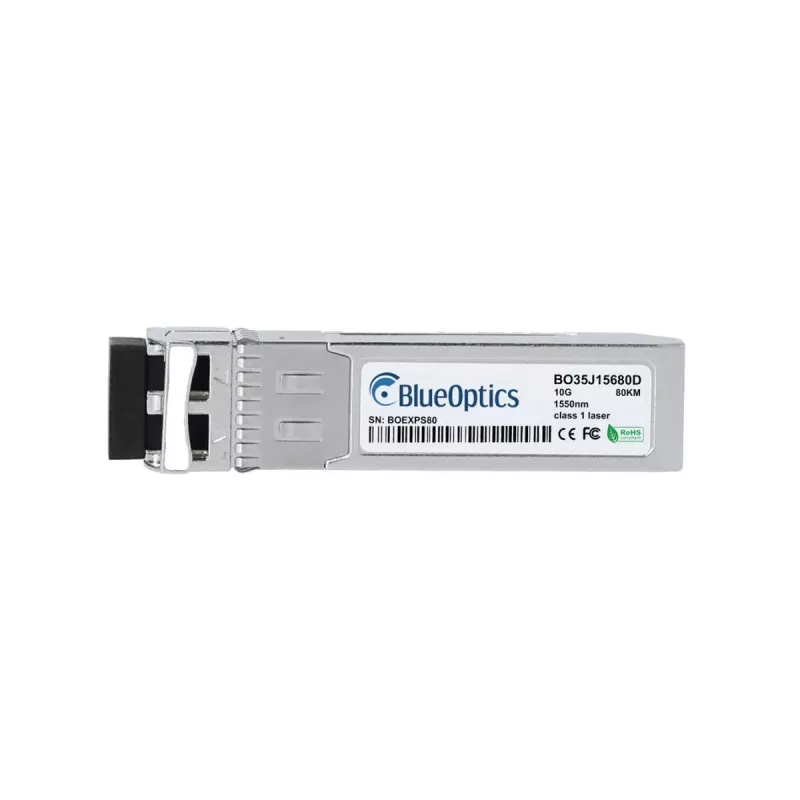

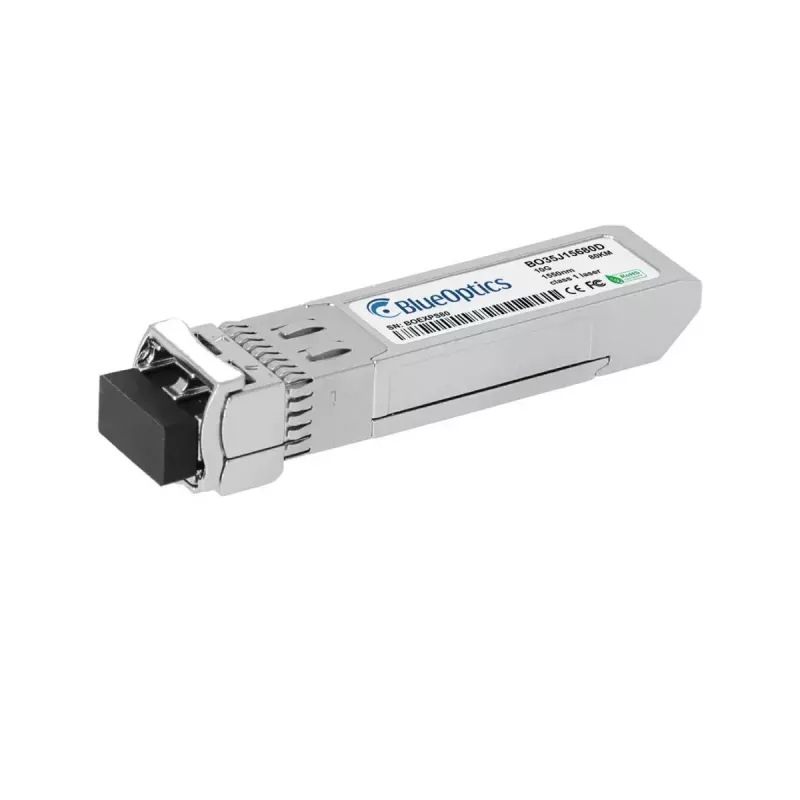

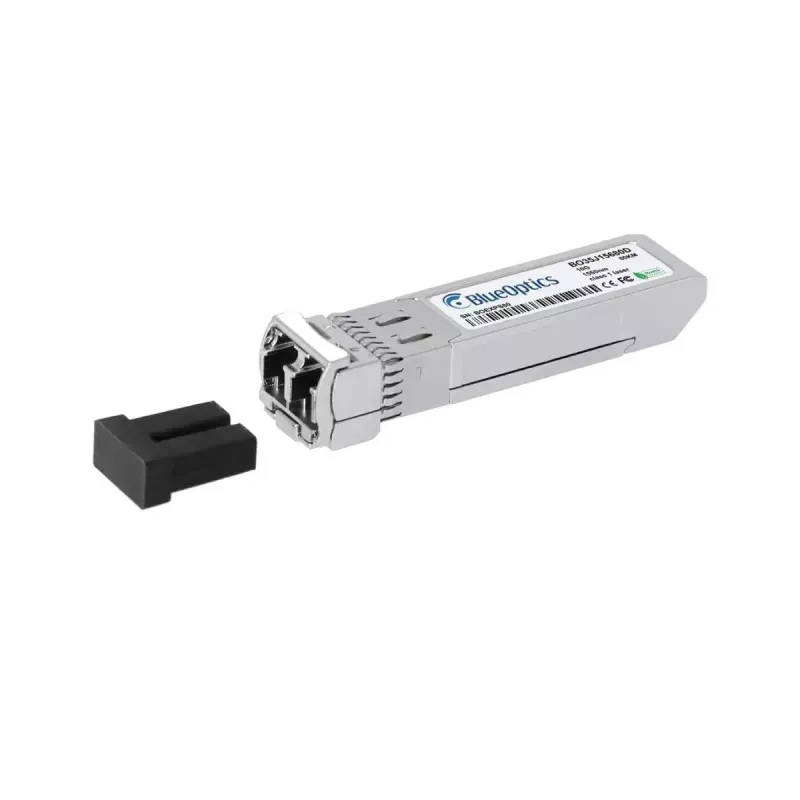

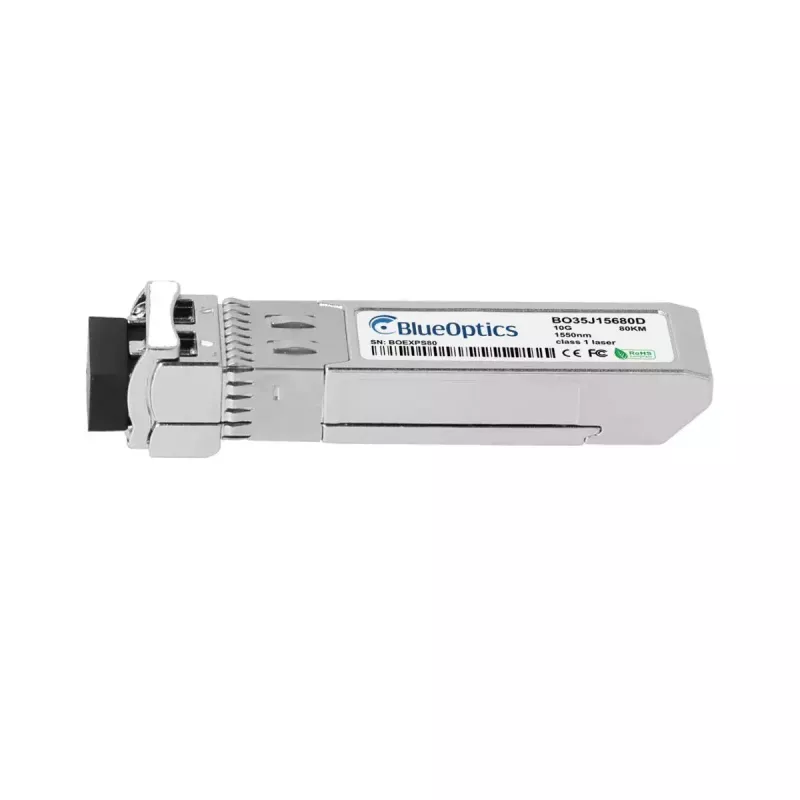

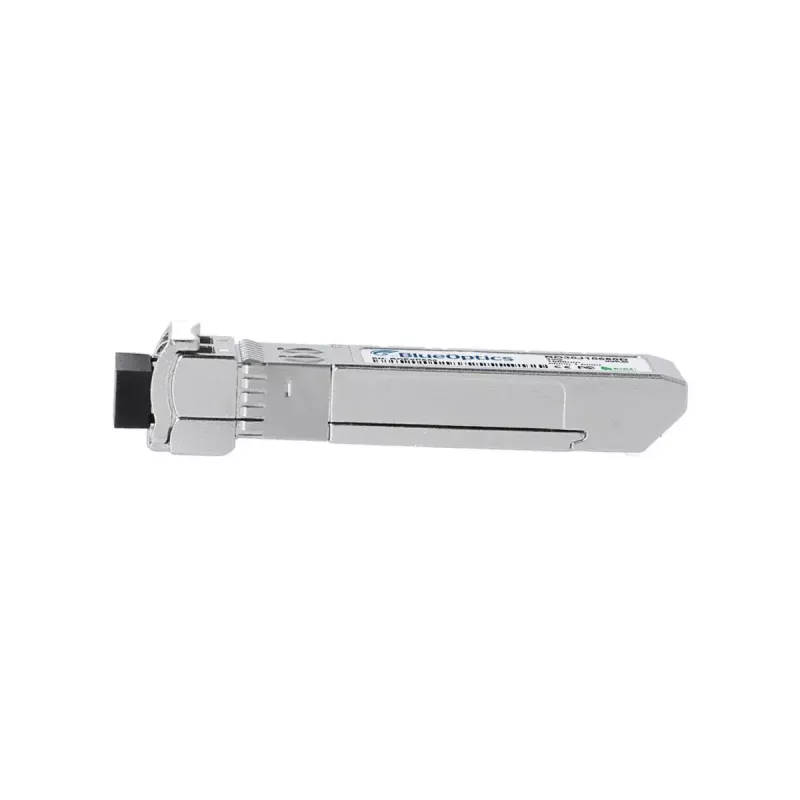

Módulo transceptor SFP BlueOptics SFP-P-2DH-BO 10000 Mbit/s 1550 nm

The BlueOptics SFP-P-2DH-BO is a fiber optic SFP+ transceiver module that supports a maximum data transfer rate of 10000 Mbit/s and operates at a wavelength of 1550 nm. Housed in a metal casing and weighing approximately 3 g, this compact module uses an SFP+ interface and an LC duplex connector for single-mode fiber links. It is powered by a 3.3 V input and is designed for high-speed optical data communication, offering compatibility with systems that accept SFP+ modules and support 10G transmission.

Advantages

The module’s metal housing provides mechanical durability and thermal stability while its small size and low weight make it suitable for dense installation in network equipment. Operating at 1550 nm, the transceiver is designed for long-reach single-mode fiber applications. Built according to MSA standards, it supports common high-speed protocols over optical links and includes support for LC duplex connections, enabling simultaneous transmit and receive on paired fibers.

Suitable for

• 10G Ethernet links over single-mode fiber
• Long-reach optical connections (single-mode, 1550 nm)
• Integration into switches, routers and storage systems with SFP+ ports
• Fibre Channel over Ethernet and SDH/SONET applications up to 10 Gbit/s

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Operating wavelength: 1550 nm
• Connector type: LC duplex
• Power supply: 3.3 V input
• Housing: metal
• Weight: 0.003 kg
• Color: silver

How to use

Install the BlueOptics SFP-P-2DH-BO by inserting the module into a compatible SFP+ port on the network device until it clicks into place. Connect LC duplex single-mode fiber patch cords to the transmitter and receiver ports, observing proper polarity. Ensure the host device supports SFP+ modules and the required 10G protocols. Power the device with a stable 3.3 V supply as provided by the host equipment and verify link status through the host interface or management software.

Recommendations

Use certified single-mode LC duplex patch cords and maintain correct fiber polarity to achieve optimum range and signal quality. Verify that the host device firmware supports DDM/DOM if remote digital diagnostics are required. Protect exposed fiber connections from dust and mechanical stress and perform regular inspection and cleaning of connectors to maintain link performance.
