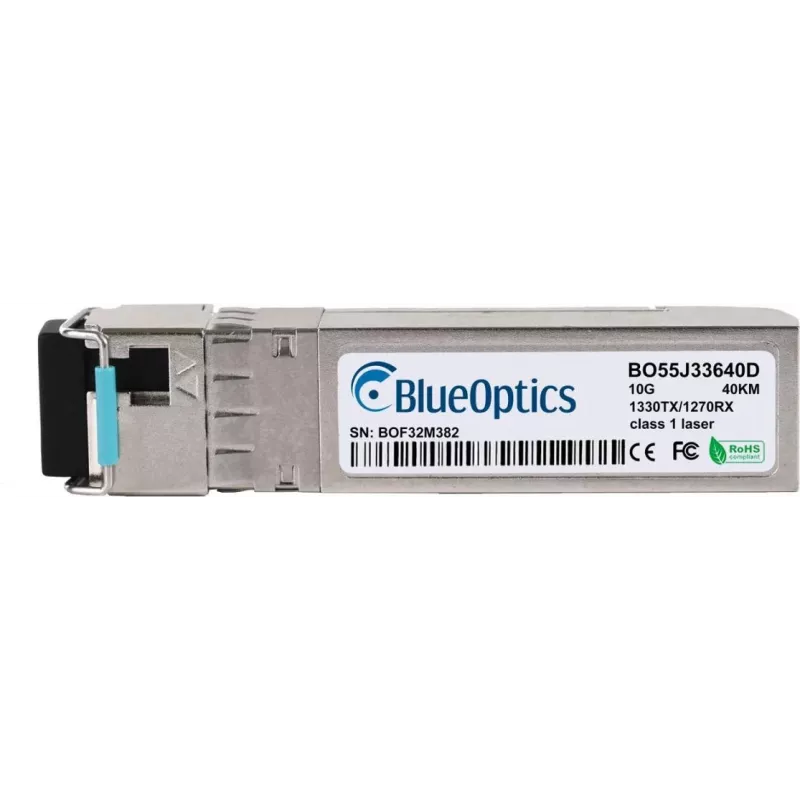

Módulo transceptor SFP BlueOptics SFP-XG-LH40-SM1330-BIDI-BO 10000 Mbit/s

The BlueOptics SFP-XG-LH40-SM1330-BIDI-BO is a 10G SFP+ fiber optic transceiver module designed for single-mode fiber links. It supports a maximum data rate of 10000 Mbit/s and operates with a 1330 nm receiver wavelength in a bidirectional (BIDI) configuration using an LC simplex connector. The module is lightweight (20 g) and follows MSA form-factor standards, making it suitable for use in compatible network devices that accept SFP+ optics.

Advantages

This transceiver supports 10GBASE-BX-D applications over single-mode fiber and provides long-range transmission up to 40,000 m. Compliance with MSA standards and testing for compatibility with supported H3C platforms ensures a plug-and-play fit in devices that accept equivalent 10G SFP+ modules. The LC duplex/simplex interface and bidirectional operation reduce fiber cabling requirements by transmitting and receiving on a single fiber strand. Built to use high-quality optical and electronic components, the module offers long operating life and stable performance for high-speed links.

Suitable for

Key specifications

How to use

Before installation, verify that the host device supports SFP+ modules and, if required, that the firmware allows third-party transceivers. Power down or follow hot-swap procedures advised by the device manufacturer when inserting or removing the module. Insert the module into an SFP+ slot until it latches, then connect an LC fiber patch cord to the module. For bidirectional links, ensure the complementary transceiver with the opposite wavelengths is used on the far end. After physical installation, check link status indicators and system diagnostics to confirm the transceiver is recognized and operating at the expected speed.

Recommendations

Use single-mode LC patch cords rated for the target distance and maintain proper bend radius to avoid signal loss. If remote monitoring is required, confirm the host device supports DDM/DOM functions to read real-time parameters such as TX power, RX power, temperature and supply voltage. For long-term reliability, install the transceiver in clean, temperature-controlled environments and follow ESD precautions during handling.
