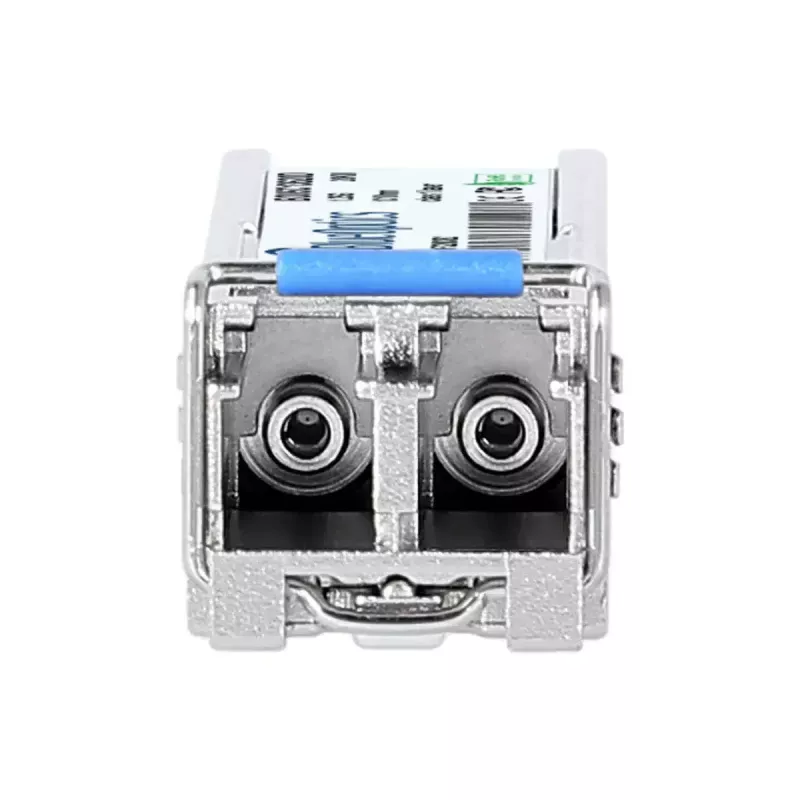

Módulo transceptor SFP BlueOptics SFP1G-TR13-BO 1250 Mbit/s 1310 nm

The BlueOptics SFP1G-TR13-BO is an SFP fiber-optic transceiver module designed for 1000BASE-LX applications. It supports a maximum data transfer rate of 1250 Mbit/s and operates at a wavelength of 1310 nm over single-mode fiber. The module is supplied in a silver housing, weighs approximately 20 g, and has a documented mean time between failures (MTBF) of 1,000,000 hours. The form factor and SFP interface allow plug-and-play installation in equipment that accepts SFP modules.

Advantages

The module offers compatibility with standard SFP ports and supports gigabit optical links with a compact SFP form factor. Operating at 1310 nm and designed for single-mode fiber, it provides stable optical performance for long-reach links within the specified application range. The lightweight silver housing and industry-standard mechanical dimensions simplify integration into switches, routers and other networking equipment that accept SFP transceivers. A long MTBF indicates reduced maintenance and extended service life in continuous operation.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP1G-TR13-BO into an empty SFP slot of compatible network equipment while the host device is powered according to the device manufacturer’s guidelines. Connect LC duplex single-mode fiber patch cords to the transceiver, ensuring transmit (TX) and receive (RX) fibers are correctly routed. Verify link status in the host device and configure the interface for 1000BASE-LX or the appropriate protocol (Ethernet/Fibre Channel over Ethernet/SDH/SONET) as required. Perform any necessary firmware or software checks to ensure the module is recognized and operating properly.

Recommendations

Use quality single-mode LC duplex patch cords and adhere to bend-radius and connector cleanliness best practices to maintain optimal optical performance. Confirm that the host equipment supports SFP modules and the desired digital diagnostics features before deployment. For monitoring and troubleshooting, enable DDM/DOM in the host system when supported to access supply voltage, laser bias current, output/input power and temperature information.
