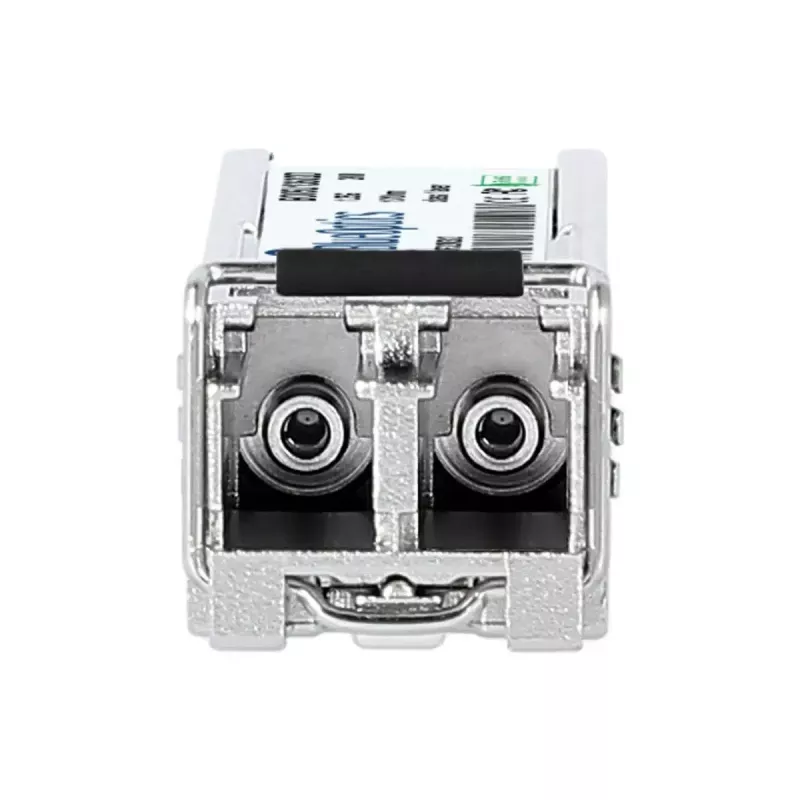

Módulo transceptor SFP BlueOptics SFP992-1+-BO 1250 Mbit/s 1310 nm

The BlueOptics SFP992-1+-BO is an SFP fiber optic transceiver module designed for single‑fiber duplex connections. It supports a maximum data transfer rate of 1250 Mbit/s and transmits and receives at a wavelength of 1310 nm. The module operates from a 3.3 V supply, is enclosed in a metal housing with a silver finish and weighs approximately 2 g, making it a compact option for fiber network links that follow MSA SFP form‑factor standards.

Advantages

The transceiver offers a standard SFP interface compatible with common SFP slots and supports 1000BASE-X applications up to 1.25 Gbit/s. Its metal casing provides mechanical protection and EMI shielding while keeping the module lightweight. The 1310 nm wavelength allows use over typical multimode fiber links at moderate distances, and the module’s simple power requirement of 3.3 V makes it compatible with a wide range of network equipment.

Suitable for

• Gigabit Ethernet (1000BASE-X) fiber uplinks
• Switch-to-switch or switch-to-router optical connections
• Storage and server network links requiring SFP transceivers
• Infrastructure upgrades where MSA-compliant SFP modules are needed

Key specifications

• Interface type: SFP
• Maximum data transfer rate: 1250 Mbit/s
• Wavelength: 1310 nm
• Supply voltage: 3.3 V
• Housing: metal, silver colour
• Weight: approx. 0.002 kg

How to use

Install the BlueOptics SFP992-1+-BO by inserting the module into a compatible SFP port on your switch, router or other network device until it seats and the latch engages. Connect an LC duplex fiber patch cord (or the appropriate fiber jumper) to the module’s connector, observing correct transmit/receive alignment. Ensure the host device supports the module and is configured for the intended link speed and protocol. Power is supplied by the host device; no external power cable is required.

Recommendations

Verify hardware compatibility and firmware support in the target device before installation. Use quality LC duplex patch cords and follow proper fiber handling procedures to avoid damage or contamination of optical interfaces. If monitoring of optical parameters is required, confirm that the host system supports Digital Diagnostics (DDM/DOM) to read supply voltage, optical power and temperature where available.
